Cod. 97842 V05_17

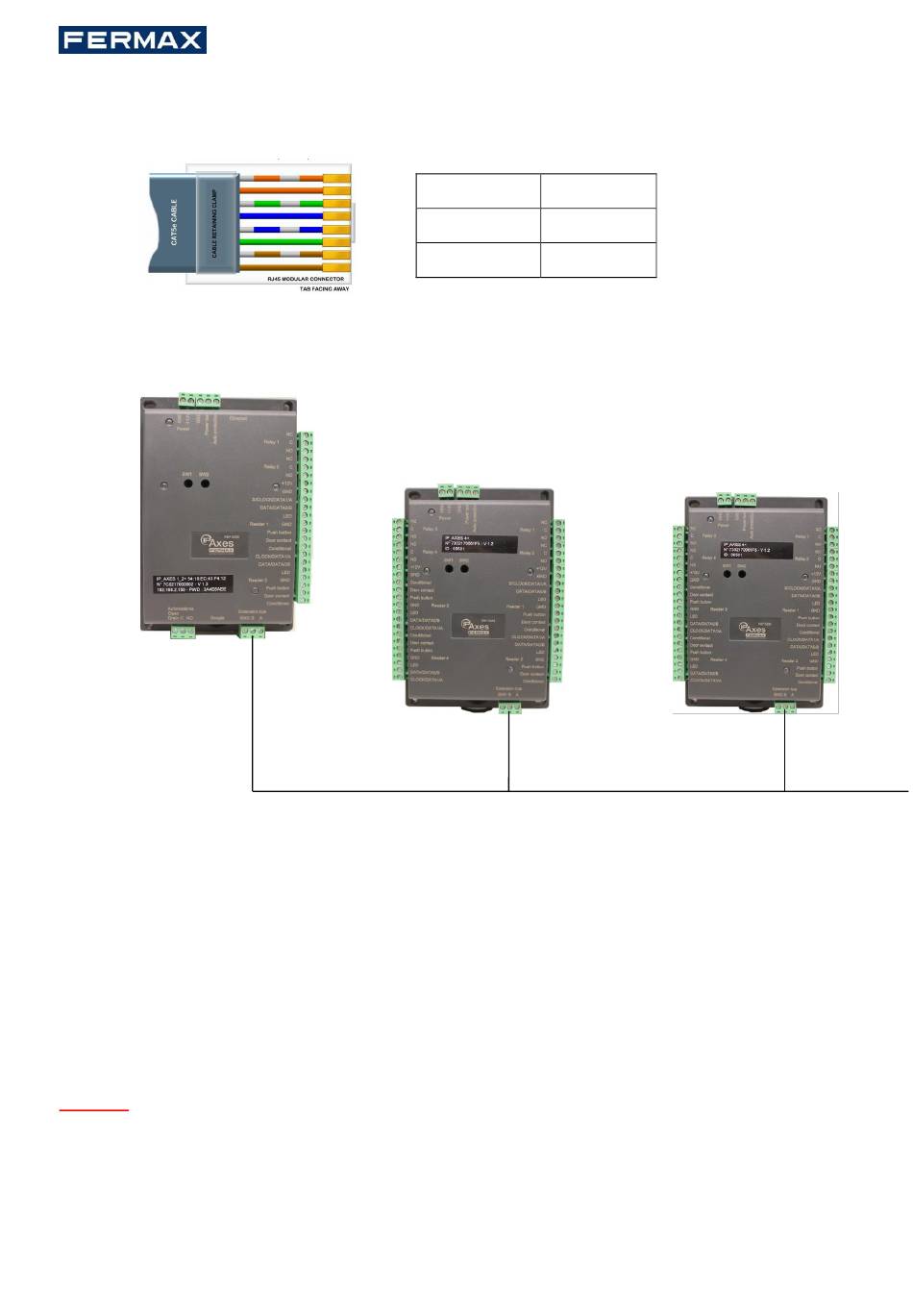

CONNECTING IP-AXES 4+ MODULE

You can also use the A and B terminals on the IP-AXES 4+ modules to connect an RS485 bus.
Information:
CAT5 cable is recommended (1 pair for A,B and another pair for negative (GND)
CAT6 cable is recommended for industrial installations.
Max. distance: 750 m (depending on the cable and the power supply of the installation).
Warning: Do not install the cables near other high voltage or high current cables, particularly 220V
or higher. Use the same pair for the A and B lines.
3200290
IP_AXES 1/2+ IP-AXES 4+
A
B
B
A
RS485
Page 15/30
A
B
RS485
Up to 10 modules per

IP_AXES 1/2+
