8. Attach the 6 pin male molex con-
nector from blower wire to the 6
pin female molex connector lo-
cated inside the blower housing.
See Fig.8

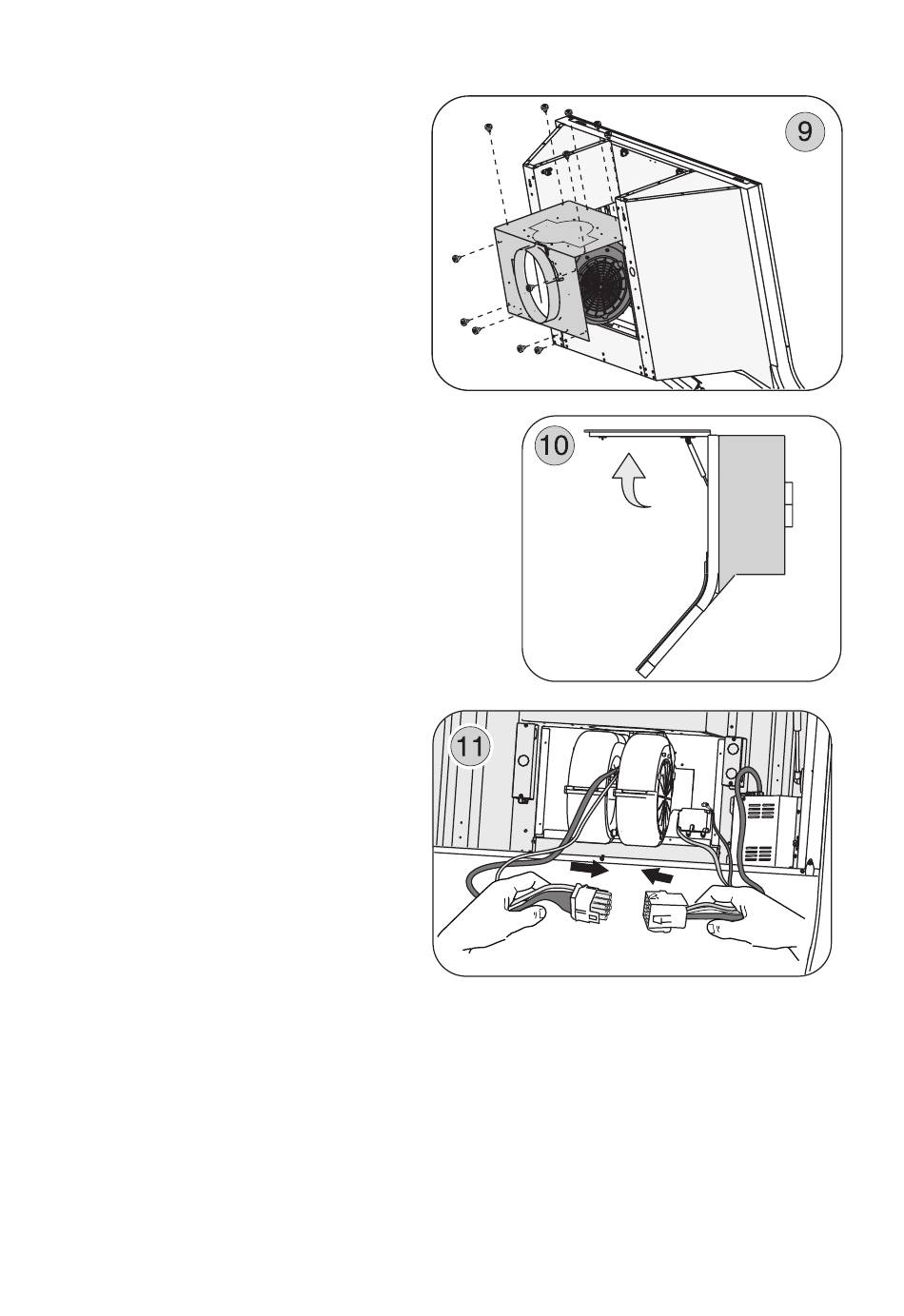

9. Install the blower and plate on
the inside of the blower housing:
carry out the instructions at step
3 in reverse order then use the
screws provided to complete installation.
(Tot. 12). Fig.9
10. Open the flap Fig.10. Connect 9 pin male
molex connector from blower wire to 9 pin
female molex connector on the capacitor
wire. See Fig.11
WARNING! Place electrical wiring
inside the blower housing.
11. Close the flap until it clicks into
place and put the top cover back
on.
The hood is now ready to be installed on the wall.
