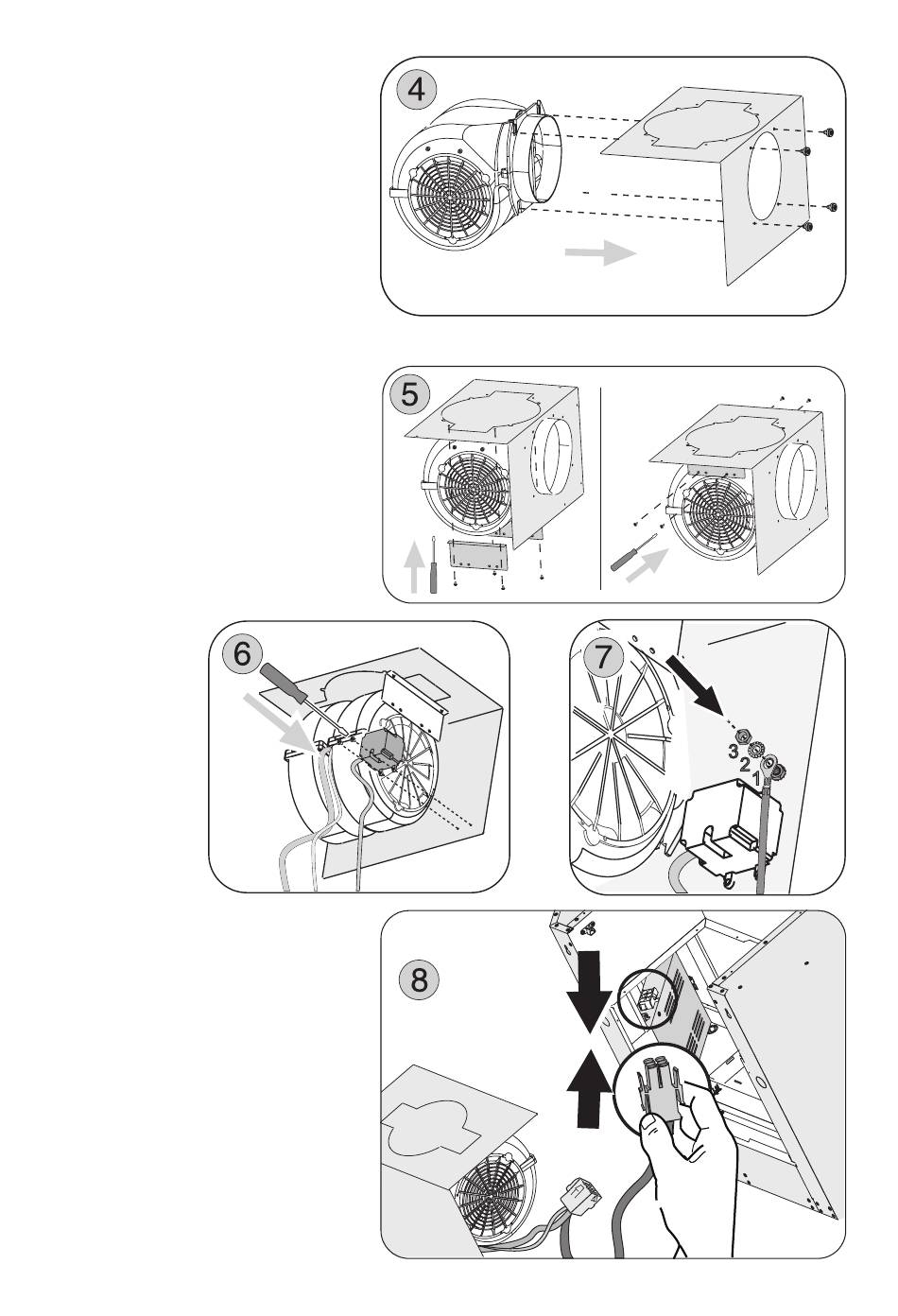

4. Rotate the blower plate
(Note! If air is discharged
from the top, do not rota-
te the plate). Install internal
blower into blower plate and
secure using (4) screws in-
cluded with the blower. See
Fig.4
5. Fasten the two brackets to
the sides of the blower by
fixing them onto the blower
plate with the (4) screws, and
to the sides of the blower
with other (4) screws. Fig 5
6. Secure capacitor box con-
nected to the provided
cable to the blower plate
using (2) screws included
with the blower. See.Fig.6
7. Secure Green/Yellow ground
wire connected to the cable
to the provided capacitor to
blower plate. Fig.7
