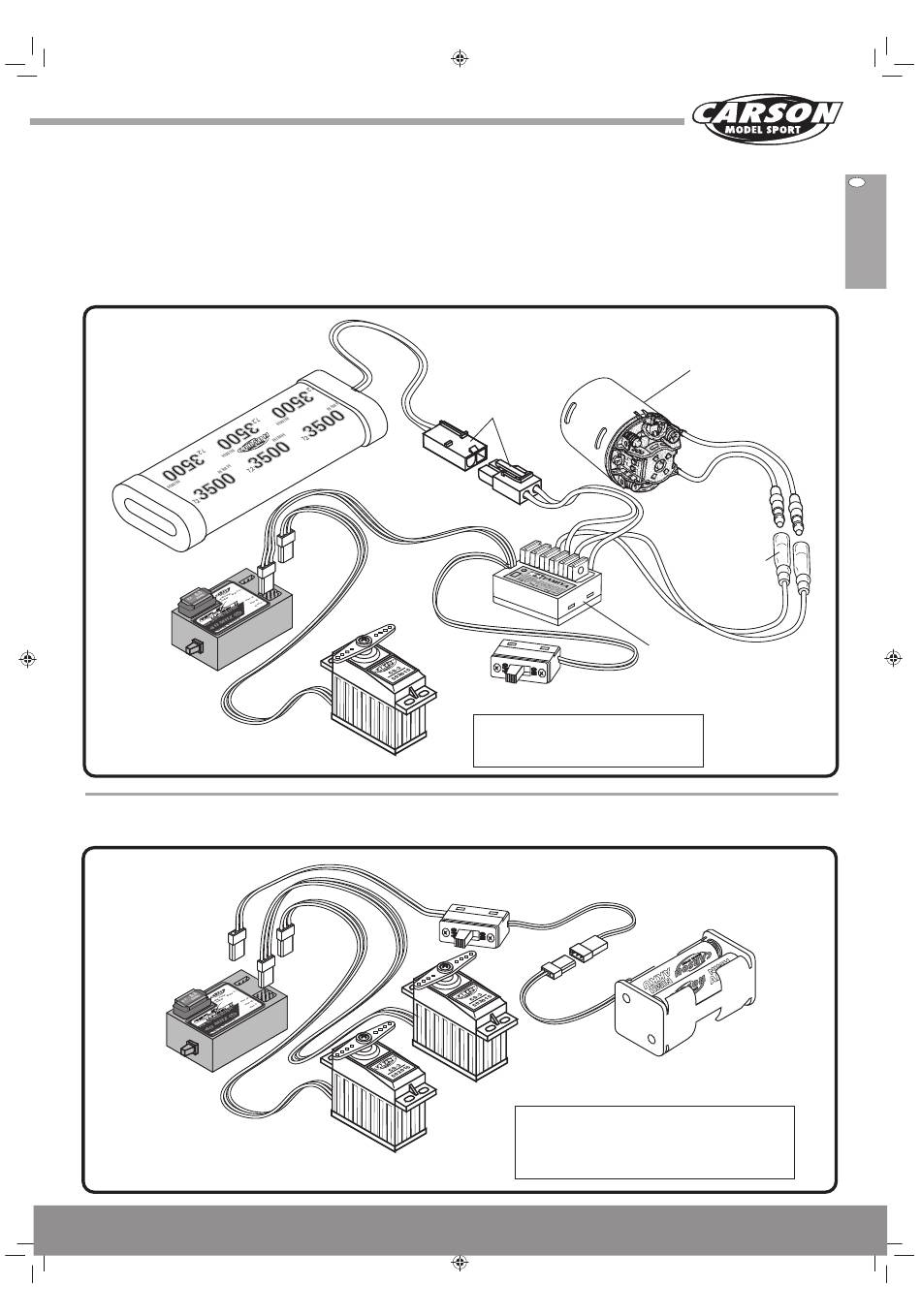

BEC-System / Connections to receiver
BEC RECEIVER : Battery eliminator is installed in the receiver circuitry. The receiver gets power from
NiMH battery for running motor. NiMH battery from 6.0V to 8.4V can be used for the receiver. Higher
voltage NiMH batteries may damage the receiver and servos.
Use only a speed controller which has the exclusive connector for the BEC system.
CARSON 7.2V
Racing-Pack
(not included)
Receiver
Do not connect a
separate power
supply to the
receiver!

Equipment for combustion engine

Receiver Batteries are not included in the kit.
Receiver
Make sure to
connect in
correct direction.
REFLEX WHEEL II Radio Control System
Steering servo
Channel 1
Steering servo
Channel 1
One Servo included in the kit.
TAMIYA 7,2V TYPE
Connector
Always disconnect
if not in use!
Receiver switch
ATTENTION
Make sure that male and female
connectors have the correct polarity
Receiver switch
Throttle servo
Channel 2
Not included.
Available separately.
ATTENTION
When connecting servo leads to the receiver
always ensure that the yellow lead/wire is
facing inwards (towards the crystal).
Item. No.: 50 050 0508
Motor
Motor
connector
Electronic speed
controller
(not included)
Channel 2
Receiver battery case
NiMH-batteries item No.
50609000 are recommended
