LRF-05
User's manual
The LRF-05 may also programme non-working periods, in which the sound pressure limit
may be exceeded without penalisation. In this case, the measured levels and the incidents
that occurred will be stored. The LRF-05 works from connection to the mains. When the LRF-
05 is disconnected from the mains, it records this incident and turns off automatically,
attenuating to 60 dB until the next time it is connected to the mains. The stored information is
not lost. When the unit is connected to the mains once more, the LRF-05 continues to
function as normal. A luminous remote display may be connected to the LRF-05, allowing
you to observe from anywhere in the establishment and in real time the measured sound
pressure level (L
) together with the attenuation level applied by the LRF-05. The LRF-05
Aeq,5"
is equipped with an internal continuous self-verification system that allows you to detect and
record possible tampering with both the measurement equipment and the musical chain.
The LRF-05 frequency sound level recorder-limiter
5
6
7
WE ACCEPT NO RESPONSABILITY
FOR AUDITION FAILURE DUE
TO BREAKDOWN OF THE APPLIANCE
SE DECLINA TODA RESPONSABILIDAD
DERIVADA DE AVERÍA DEL APARATO
QUE AFECTE A LA AUDICIÓN

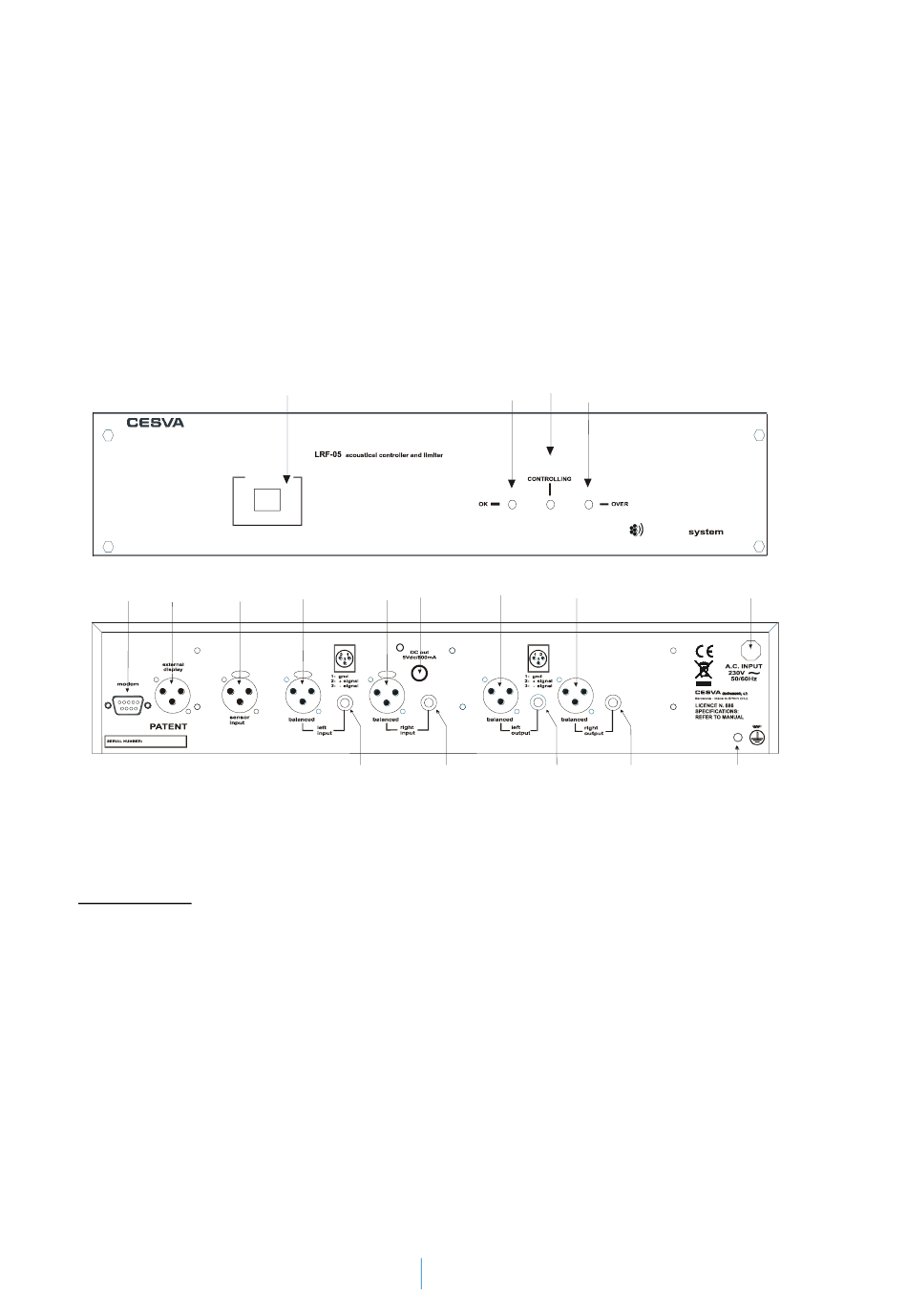

DESCRIPTION
1
USB PORT
2
CORRECT LEVEL LED INDICATOR
3
LRF-05 CONTROLLING LED INDICATOR (attenuating)
4
LRF-05 ATTENUATING 60 dB LED INDICATOR
5
SERIAL PORT OUTPUT FOR MÓDEM
6
OUTPUT FOR REMOTE DISPLAY
7
SENSOR INPUT
8
LEFT CHANNEL BALANCED INPUT XLR)
9
LEFT CHANNEL NON-BALANCED INPUT (RCA)
10
RIGHT CHANNEL BALANCED INPUT (XLR)
11
SUPPLY FOR MODEM OUTPUT
12
RIGHT CHANNEL NON-BALANCED INPUT(RCA)
13
LEFT CHANNEL BALANCED OUTPUT(XLR)
14
LEFT CHANNEL NON-BALANCED OUTPUT(RCA)
15
RIGHT CHANNEL BALANCED OUTPUT(XLR)
16
RIGHT CHANNEL NON-BALANCED OUTPUT(RCA)
17
MAINS CABLE
18
EARTH
1
USB
8
10
11
D
9
3
2
4
13
15
14
12
23
ENOS
17
16
18
