golmar RD-Plus/Uno Manuel D'installation

SCOPE
Systems with Platea Uno monitors and/or T-940 Uno telephones where the
number of units is higher than 200, or where the distance from the door
panel to the last unit is largest than 200 meters.
Systems with Platea Plus monitors and/or T-940 Plus telephones where the
distance from the door panel to the last unit is largest than 1000 meters.
The maximum number of repeaters to be connected in cascade is three.

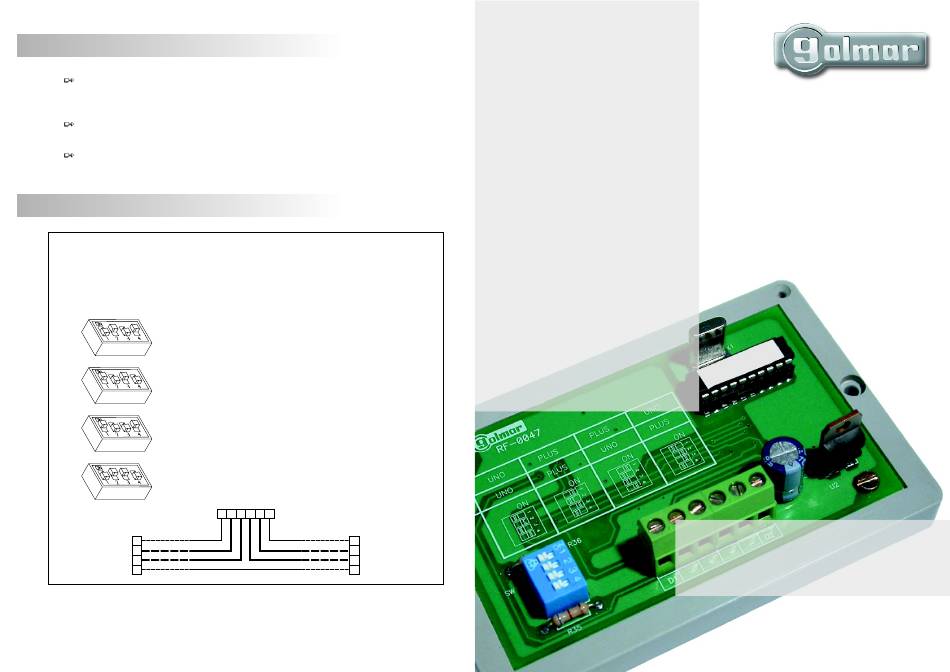

CONFIGURATION AND WIRING
R
epeater configuration and
wiring.
Use dip switch SW1 to configure the repeater. The configuration will depend
on the type of units connected to the repeater.
"Uno" units connected to input and output.
"Plus" units connected to input and output.
"Plus" units connected to input and "Uno" units connected to output.
"Uno" units connected to input and "Plus" units connected to output.
RD-PLUS/UNO
D1
D
_
+
A
Golmar se reserva el derecho a cualquier modificación sin previo aviso.
Golmar se réserve le droit de toute modification sans préavis.
Golmar reserves the right to make any modifications without prior notice.
_ _
+ +
D2
D
_
+
A
3
Repetidor digital
Répéteur digital
Digital repeater
RD-Plus/Uno
T51ML
rev.0104
manual de instalación
manuel d'installation
instructions manual
