SCOPE
04Systemswith Platea Uno monitors and/or T-940 Uno telephones where the
number of units is higher than 200, or where the distance from the door
panel to the last unit is argest than 200 meters.
00Systemswith Platea Plus monitors and/or T-940 Plustelephones where the
distance from the door panel to the last unit is largestthan 1000 meters.
The maximum number of repeatersto be connected in cascade is three.

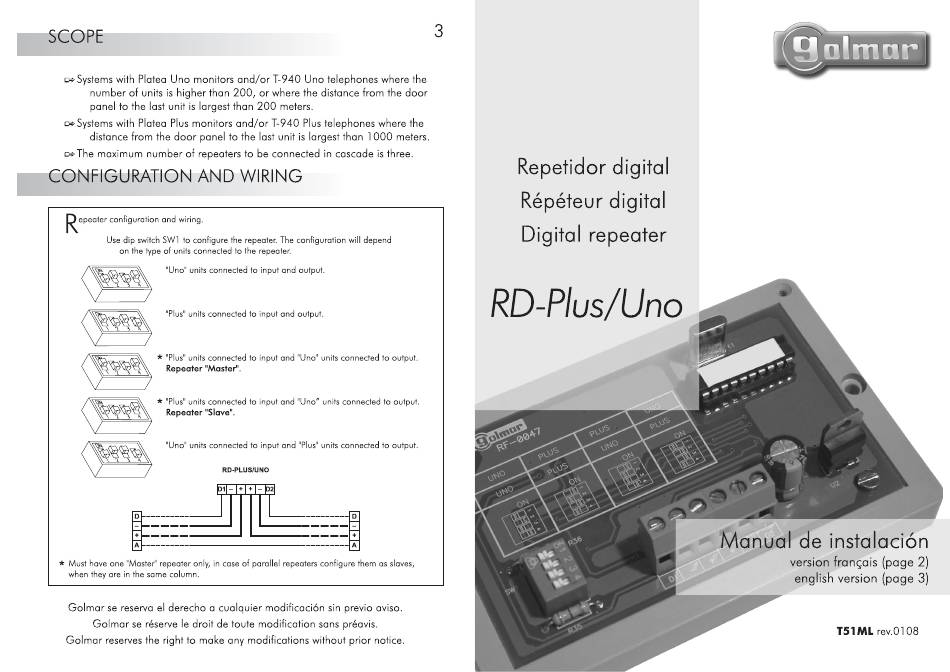

ONFIGURATION AND
epeater configuration and wiring.
Use dip switch SWI to configure the repeater. The configuration will
on the type of units connected to the repeater.
"UnolI units connected to input and output.
I'Plus'l u nits connected to input and output.
* "Plus"units connected to input and
Repeater "Master".
* "Plus"units connected to input and
Repeater "Slave".
"Uno" units connected to input and
RD-PLUS/UNO
* Must have one "Master" repeater only, in case of parallel repeaters configure them as slaves,
when they are in the same column.
Golmar se reserva el derecho a cua quier modificaci6n sin previo aviso.
Golmar se réserve e droit de toute modification sans préavis.
Golmar reserves the right to make any modifications without prior notice.
WIRING
depend
units connected to output.
"Uno"
"lJno" units connected to output.
units connected to output.
"Plus"
-D
3
Repetidor digital
Répéteur digital
Digital repeater
RD-PIus/Uno
golmnr
Manual de instalaci6n
version franqais (page 2)
english version (page 3)
