Wet Pick Up Operation; Blower Feature - Shop-Vac ESL Serie Manuel D'utilisation

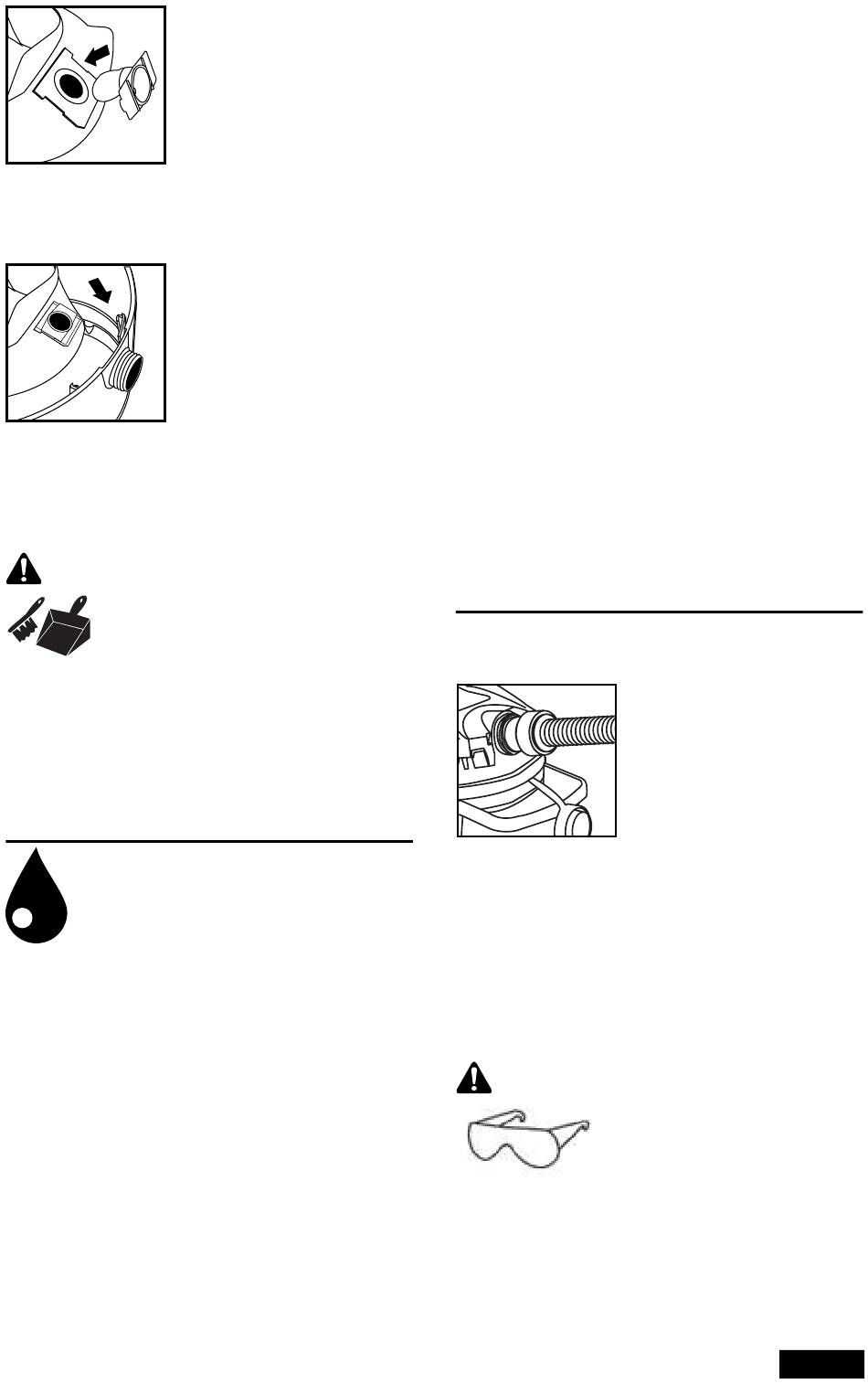

FIGURE 33
FIGURE 34
49. When secured in place, expand bag and position
around the inside of tank.
50. Use for dry pickup only.
WARNING!
FOR FINE DUST POWDERS
When vacuuming fine dust, or powders of any kind (ex.
plaster, drywall dust, cold ashes, concrete dust, etc.)...a
high efficiency drywall filter bag must be used.
When vacuuming normal household dust and debris,
standard household disposable filter bags may be used.
These "large bag" filters connect to the air inlet fitting
on the inside of the vacuum tank.
WET PICK UP
OPERATION
51. Remove ALL dirt and debris found in the tank. The
vacuum requires only a minimum of conversion when
going from dry to wet pick up. Remove all dry use filters
from the vacuum. A clean cartridge filter may be used
for vacuuming small amounts of liquids. For best results
when vacuuming large quantities of liquid, remove the
cartridge filter. When vacuuming liquids containing
debris, it is recommended purchasing a foam sleeve and
install over filter cage; otherwise a foam sleeve is not
required for wet pick up. Foam sleeve and additional
filters may be purchased by visiting our website at
www.shopvac.com, contacting our customer service
department, or purchasing at your local Shop-Vac
distributor.
52. Misting in exhaust air may occur if the filter becomes
saturated during wet pick up. If misting occurs, remove
filter and allow to dry or, replace with another dry
47. With the opening of the
inlet deflector facing the left
or right side of the filter bag,
slide filter bag collar over
deflector matching notches
of bag collar to tabs on inlet
deflector, bag will only fit
properly one way. FIGURE
33.
48. Slide deflector with filter
bag attached into deflector
guide. FIGURE 34.
®
filter to eliminate the misting and possible dripping of
liquid around the lid. Turn the unit off immediately upon
completing a wet pick up job or when tank is full and
ready to be emptied. Raise the hose to drain any excess
liquid into the tank. The interior of the tank should be
periodically cleaned.
53. The foam sleeve should be cleaned periodically as
described in the following steps:
54. Always disconnect the plug from the wall receptacle
before removing the tank cover. Place tank cover in an
upside down position. Remove foam sleeve by sliding it
up and off the lid cage.
55. Hold foam sleeve under running water for a minute or
two, rinsing from the inside. A water wash is not always
required, depending on the condition of the foam sleeve.
56. Gently wring out excess water, blot foam sleeve with
a clean towel, and allow to dry. The foam sleeve is now
ready to be reinstalled on the lid cage.
NOTE: WET PICK UP ACCESSORIES SHOULD
BE WASHED PERIODICALLY, ESPECIALLY AFTER
PICKING UP WET, STICKY KITCHEN ACCIDENTS.
THIS CAN BE ACCOMPLISHED WITH A WARM
SOLUTION OF SOAP AND WATER.

BLOWER FEATURE

FIGURE 35
58. The blower port cover is equipped with a retaining
strap to prevent loss of the port cover while blower is in
use. Clear hose of any obstructions before attaching to
blower port. Insert hose end with locking-nut into blower
port on rear of unit and tighten. Do not over-tighten.
Caution should be used when using as a blower due to
the powerful force of air when using certain attachments.
WARNING!
ALWAYS WEAR EYE
PROTECTION TO PREVENT
ROCKS OR DEBRIS
FROM BEING BLOWN OR
RICOCHETING INTO THE EYES OR FACE WHICH
CAN RESULT IN SERIOUS INJURY.
57. This vacuum can be used
as a powerful blower. To use
your unit as a blower unscrew
blower port cover located on
the backside of the motor
housing. FIGURE 35.
PAGE 9
