2.2

Installing the Light Fixture

NOTE: Perform these steps only after the electrical system requirements
are met.
1. 1.5" pipe must be installed through the bond beam with a minimum
length of 14", followed by 1" conduit with sweeps only without 90
degree elbows. It is highly recomended to use 1.5" pipe throughout the
entire width of the bond beam.
NOTE: Gaskets help ensure
that conduit is not a potential
leak path. For vinyl wall fi ttings
use both rubber gaskets. For
gunite and fi berglass remove
the small gasket and use the
large one only.

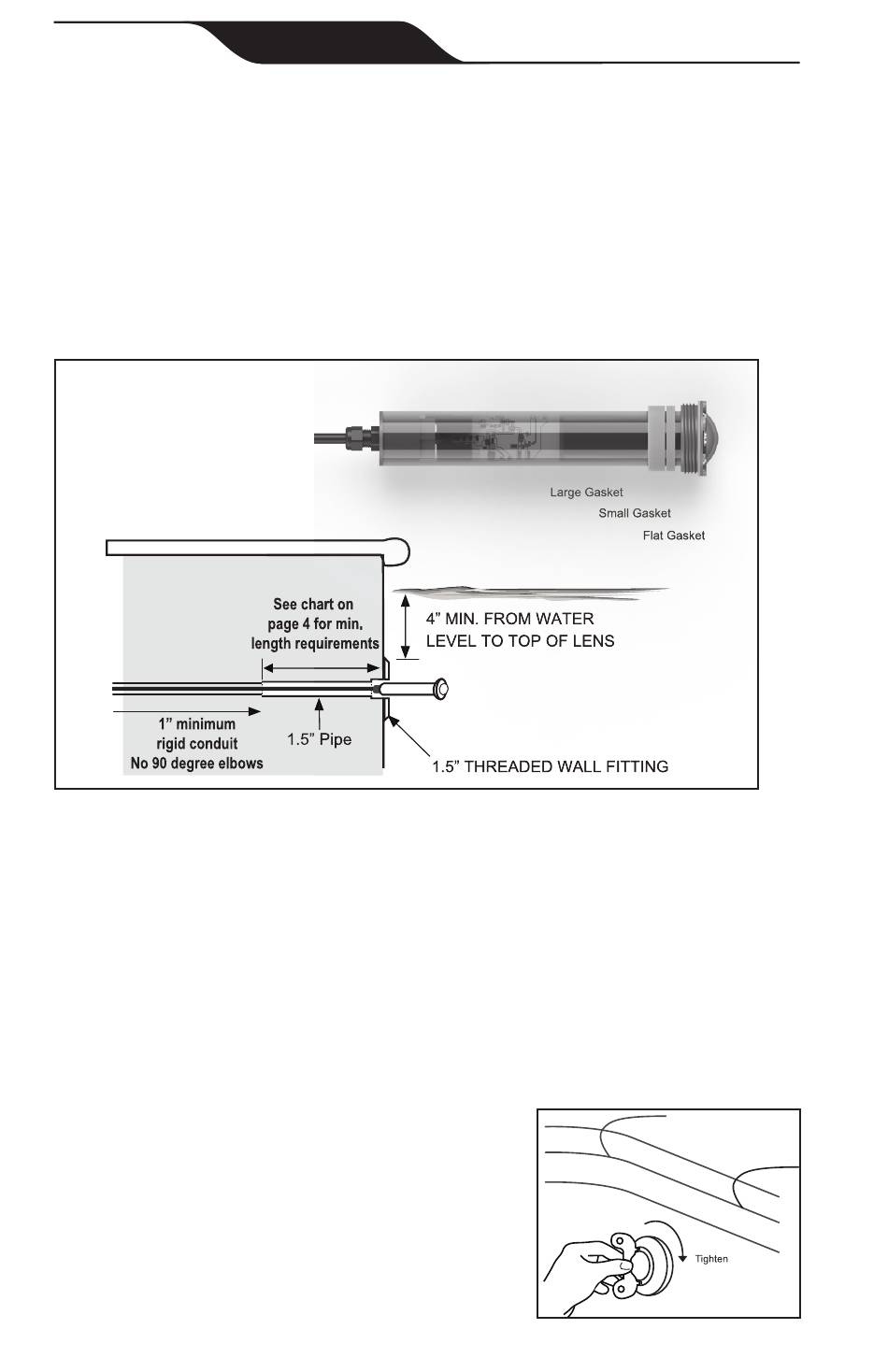

Figure 2. Standard installation with 1.5" pool wall fitting
2. Snake the 2-Conductor electric cord through the conduit outlet of the
wall fi tting, into the conduit and up to the location of the 12VAC pool
transformer. Cut off cord after allowing for service and length of run to
the transformer. 18"-24" of excess cord is recomended for the service
loop. Pull the fi xture snug to the wall fi tting.
NOTE: When using a 1 1/2" MIP fi tting on the back of a SP-1022 or
SP-1408 Wall Fitting, the interior of the Spears and Dura MIP are too
small for use with the Jandy
3. Using the included Lens Key, thread the
light into the wall fi tting until it is snug.
Please provide the pool owner with
minimum of 1 key upon job completion.
ENGLISH
Pro Series Nicheless LED Lights.
®
