EEWH311A Tire Changer Operation Manual
®

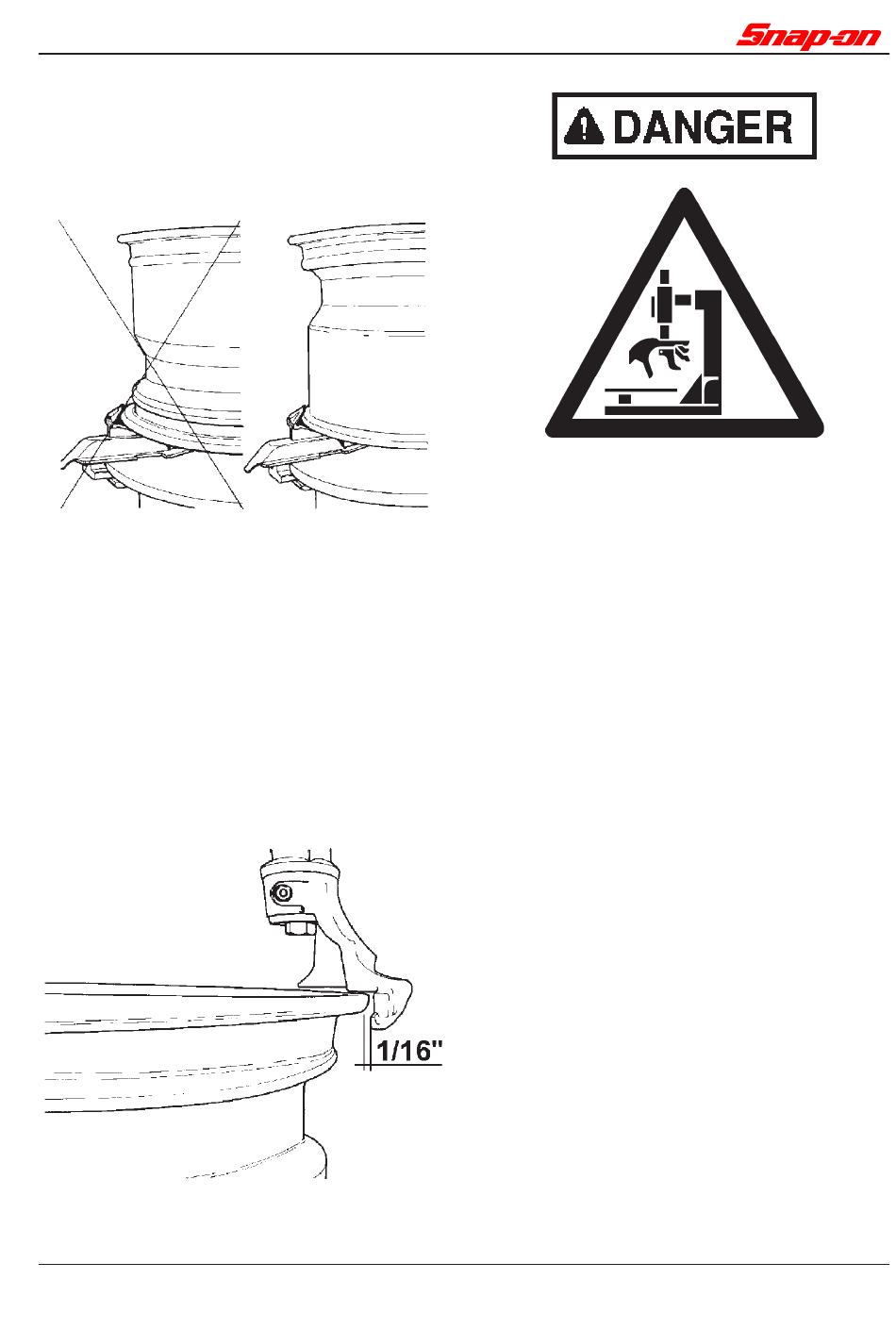

D. Liberally lubricate both beads. Place the wheel
WITH DROP CENTER UP (Fig. 4.1-3a) on the
turntable, and clamp in position. It may be necessary
to hold the tire and wheel down while clamping to insure
contact between rim and clamp as shown in 4.1-3a.
Ÿ:
DANGER!!
331
Fig. 4.1-3 Fig. 4.1-3a
Keep hands and fingers
clear of mount/demount
E. Gently position the mount/demount head in contact
head during operation.
with rim edge, now manually push the lock lever up
and lock it into place. The mount/demount head
automatically moves vertically up and away from the
rim edge. Turn the swing arm adjustment knob
clockwise until the mount/demount head moves
horizontally away from the rim flange by approximately
1/16" (2mm): this is necessary to avoid any rim contact
during the changing process. (Fig. 4.1-4).
332a
Fig. 4.1-4
Operation Manual Page 19
