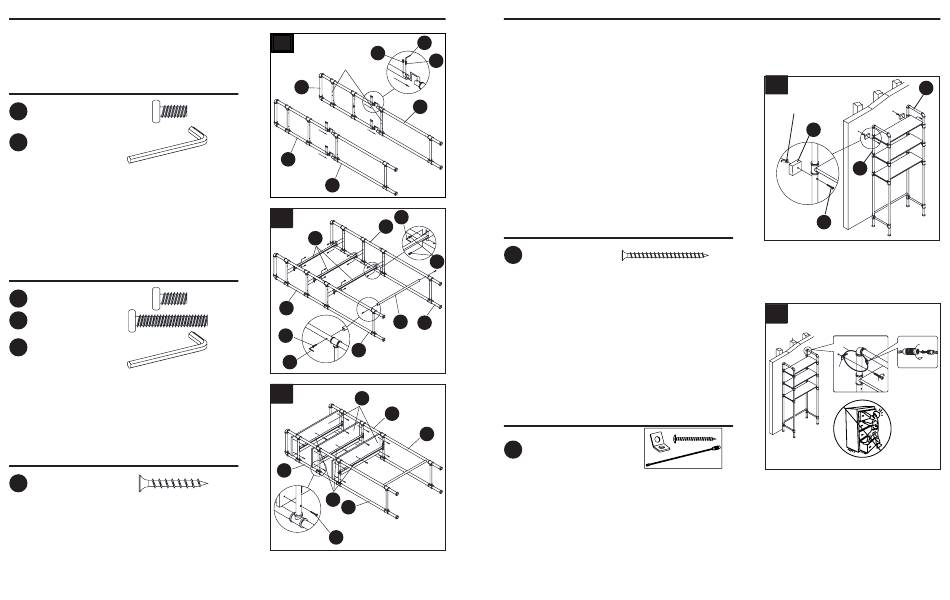

ASSEMBLY INSTRUCTIONS
1. Attach left upper side frame (A) and right upper
side frame (C) to left lower side frame (B) and right
lower side frame (D) respectively, using 13 mm
bolts (AA). Tighten with hex wrench (EE).
Hardware Used
AA
1/4" x 13 mm Bolt
EE
Hex wrench
2. Attach connect beams (E) between the side
frames (A, B, C and D) using 13 mm bolts (AA)
and attach bottom stretcher (G) in place with 38
mm bolts (BB). Tighten with hex wrench (EE).
Hardware Used
AA
1/4" x 13 mm Bolt
BB
1/4" x 38 mm Bolt
EE
Hex wrench
3. Attach shelves (F) to the side frames (A, B, C and D)
and connect beams (E). Secure in place with M4 x
30 mm screws (CC).
Hardware Used
CC
M4 x 30 mm Screw
1
AA
Threaded sockets face
the same direction
A
x 8
x 1
C
D
2
A
E
x 12
C
x 2
BB
x 1
D
EE
3
F
A
C
x 15
E
D
CC
5
OPERATING INSTRUCTIONS
For stability, it is recommended you attach the unit to the wall. For instructions on how to attach the
EE
unit directly to the mounting surface, refer to step 1. For instructions on how to attach the tipping
restraint hardware (FF), refer to step 2.
AA
1. Position the unit against the wall where desired.
Using upper side frames (A and C) as a template,
mark two mounting hole locations on the wall.
B
Drill two pilot holes into the wall where previously
marked. Make sure that the drilled holes can fit for
the wall anchors (sold separately) properly. Press
the anchors into the holes and gently tap with a
hammer until flush in the holes. If the mounting hole
coincides with a wooden stud, there is no need
wall anchor. Align upper side frames (A and C) and
back crossers (H) over the anchors and insert M5 x
65 mm screws (DD). Tighten securely with Phillips
screwdriver.
EE
Hardware Used
DD
M5 x 65 mm Screw
AA
2. Locate and mark wood studs where the unit is to be
installed. Drill a 1/8" pilot hole on the wooden stud
G
B
behind one upper side frame approximately 3" below
the height of unit top. Attach bracket (a) securely with
screw (c) into the pilot hole on the wall. Position the
tower in place and put the male end of the steel cable
(b) through the bracket (a) and round the back post of
upper side frame. Securely connect both ends together
by turning the female connector clockwise.
Hardware Used
B
FF
Tipping restraint hardware
1
Masonry/drywall
anchor not included
Wall
H
A
DD
x 2
2
Wooden
stud
b
Wall
a
c
x 1
6
C
b
