1. PRODUCT OVERVIEW

1.1 Description

The ActivHub RF50 is an emitter used to wirelessly
TM
synchronize 3D glasses with a 3D display system.
It can receive 3D synchronization via
- Wired link, typically VESA-DIN3 or BNC connectors
- Infrared link, from a wide variety of sources like 3DTVs
and 3D IR emitters
- DLP-link embedded in the 3D images of a 3D-Ready
TM
projector
It can transmit 3D synchronization via
- RF link from any 3D source.
- VESA link (square signal 0-5V)
Its intelligent core allows it to be
- Automatically compatible with most 3D display brands
using IR synchronization
- Upgraded to new functions via volfoni's website
- Loaded with custom-made software for specific
applications
It is especially suitable for
- Virtual Reality centers, thanks to its omnidirectional,
interference-free RF link
- Digital Content Creators, thanks to its selectable
12-channels RF Link
- 3D professionals, thanks to its industry-wide multi-brand
compatibility
4

1.2 Content of the ActivHub

Your ActivHub
TM
- an ActivHub
TM
- a VESA-DIN3 to Jack 3.5 connection cable
- a BNC & USB to Jack 3.5 connection cable
- a USB-A to micro-USB cable for maintenance and power

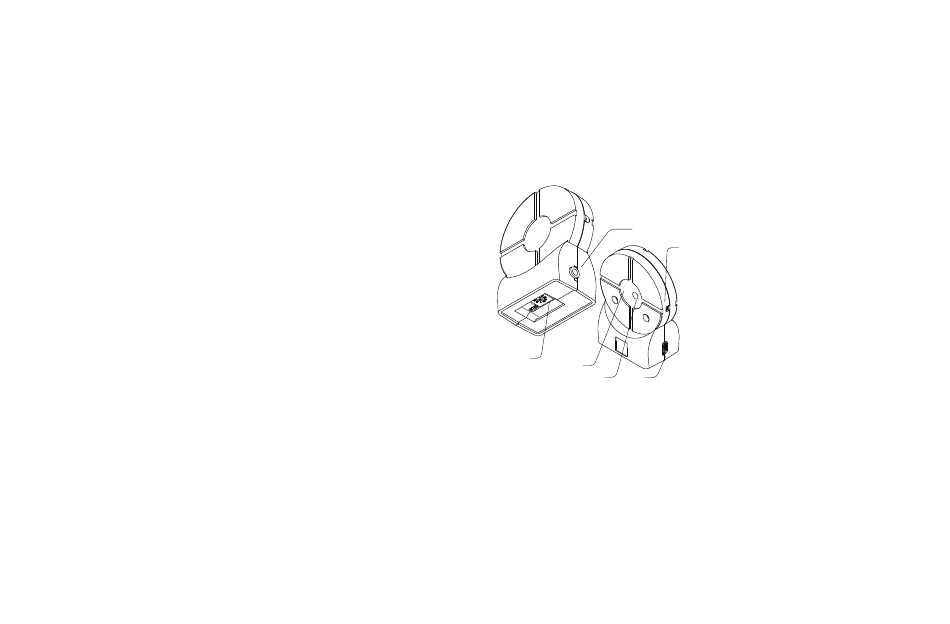

1.3 Connectors and Functions

TM
5.
3.
4.

1.4 Requirements

The ActivHub RF50 is a 3D signal emitter to be used with
TM
active glasses to view 3D contents played on an active
3D display like 3D monitors, 3DTV or 3D projectors.
The ActivHub RF50 should receive the 3D synchronization
TM
signal from an Infrared source, a DLP-link
3D projector, or a VESA-DIN3 or BNC connector. It can
transmit the 3D signal RF, in the following configurations.
RF50 Kit
TM
RF50 kit includes;
RF50 3D emitter
1. USB connector
2.
2. Jack 3.5 connector
6.
3. IR reception window
4. DLP-Link reception window
TM
5. Function selector
6. Power and Function LED
1.
compatible
TM
5
