JVC BD-X201MS Guide Rapide page 3

1. Overview
1. Video from Ultrasound system can be recorded to DVD-R/RW, DVD+R/RW. (DVD video format only)
2. Can be controlled by Siemens Ultrasound system via RS-232C.
3. Still capturing function is available.
4. Dual mode foot switch is available.
5. Equipped with an index search feature.
2. Preparation

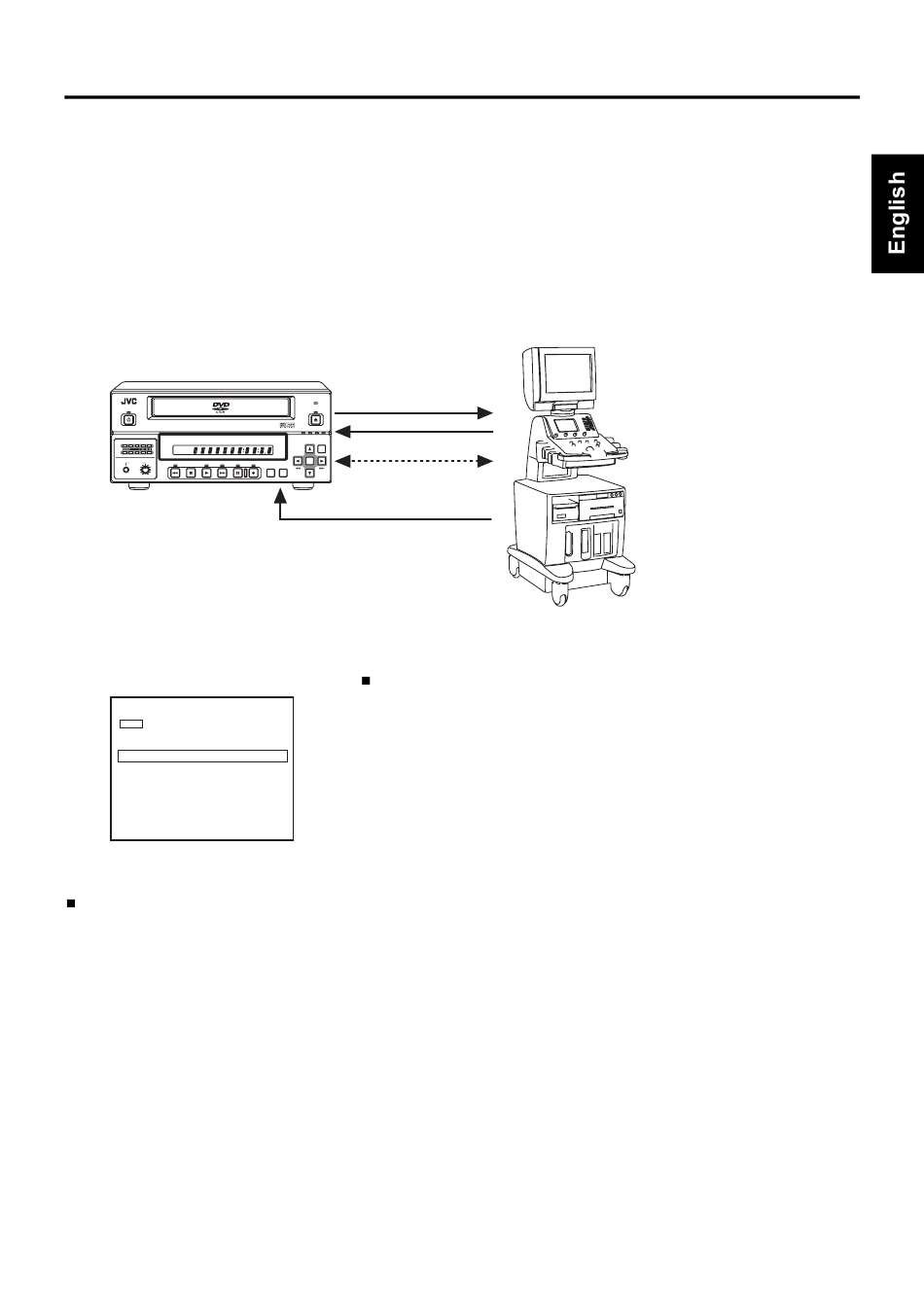

1. Connection to Ultrasound system
OPERATE
DVD RECORDER BD-X201M
AUDIO
TITLE CHAPTER
CH1
DOLBY DIGITAL
LPCM MPEG
CH2
PHONES REV STOP PLAY FWD PAUSE
2. Video format selection NTSC or PAL
Default is NTSC.
PAL needs menu setting.
SYSTEM MENU (2/2) screen
SYSTEM MENU (2/2)
BACK
AC IN MODE
SYNC SYSTEM
TV TYPE
VBID OUT(WIDE)
Y/C TERMINAL MODE
OPERATION LOCK
EE OUTPUT
DIGITAL STILL
PLAYBACK NAVIGATION
You can also use the following procedure to change the video format when the menu cannot be opened because a monitor is not
connected.
In Stop mode, simultaneously press and hold the SET UP button and STOP button for at least 3 seconds.
When the video format is changed, the unit will turn off automatically and rebooted.
S-Video
BUSY
OPEN/CLOSE
OPTION DV Y/C LINE
SET UP
SET
REC TOP
MENU MENU RS-232C
Power
Select the video format in the TV TYPE item of the SYSTEM MENU (2/2)
screen.
NTSC (U)
NTSC (I)
ON
AUTO PAL
NTSC (U)
OFF
S1
OFF
THROUGH
FRAME
ON
Ultrasound system
: NTSC (for USA)
: NTSC (for Japan)
: PAL
3
