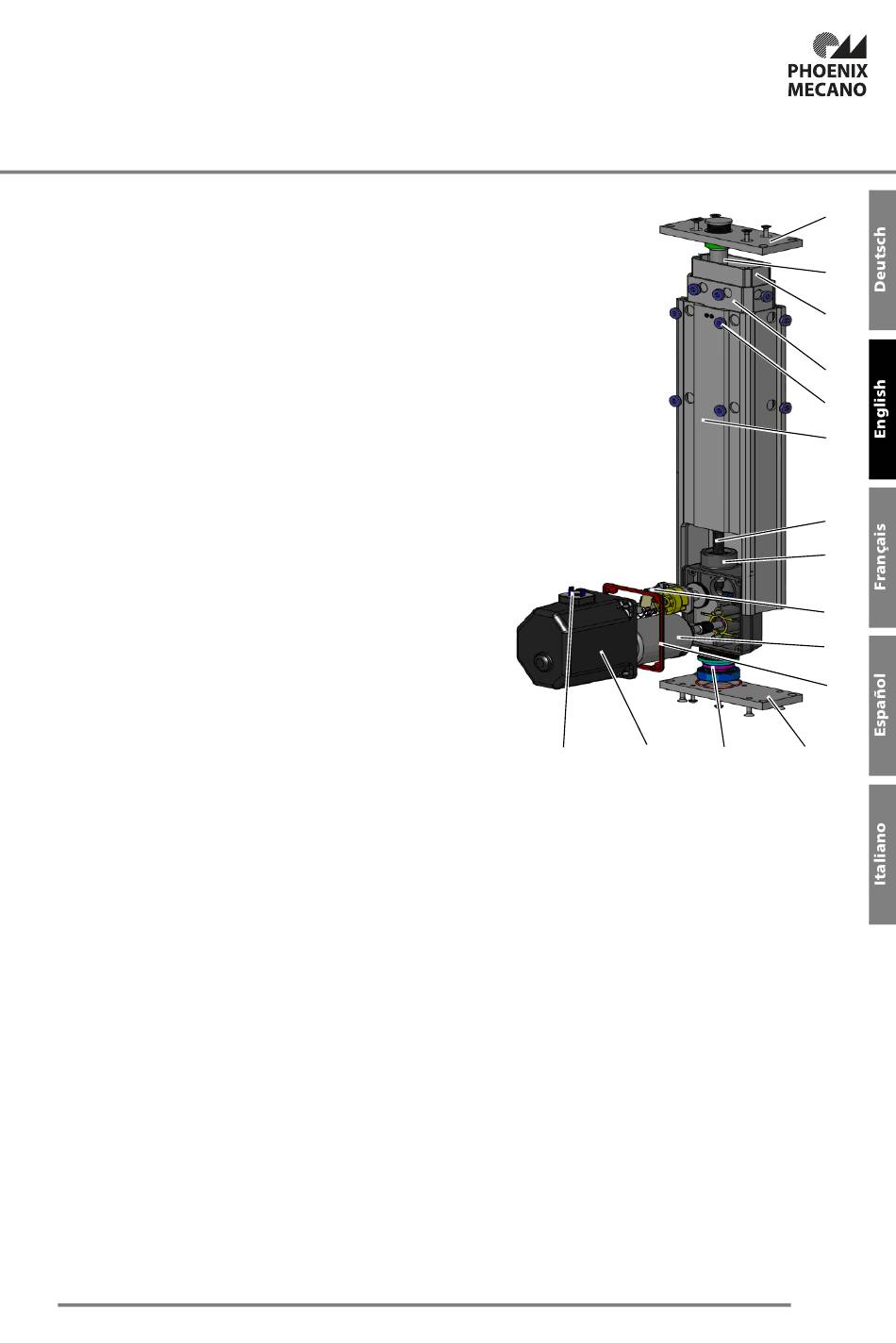

6.6 Overview diagram of the lifting column

1 Fixing plates "Push rod side"
2 Push rod
3 Inner profile
4 Centre profile
5 Slider
6 Outer profile
7 Trapezium spindle
8 Gear housing
9 Limit switch unit
10 DC motor with screw
11 Seal
12 Fixing plate "motor side"
13 Worm gear with two bearings
14 Hood
15 Linch pin
