Campbell Hausfeld TF2101 Instructions D'utilisation

See Warranty on page 10 for important information about commercial use of this product.
Operating Instructions
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the
product described. Protect yourself and others by observing all safety information. Failure to comply with instructions
could result in personal injury and/or property damage! Retain instructions for future reference.

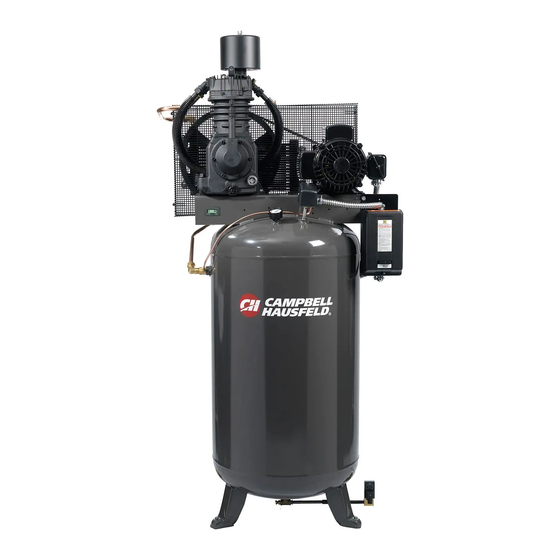

Air Compressors
REGISTER YOUR PRODUCT ONLINE NOW!
Description
Air compressor units are intended
to provide compressed air to power
pneumatic tools, operate spray guns
and supply air for pneumatic valves and
actuators. The pumps supplied with
these units have oil lubricated bearings.
A small amount of oil carryover is
present in the compressed air stream.
Applications requiring air free of oil
vapor should have the appropriate
filter installed. The air compressor units
are to be mounted per the instructions
provided on a solid floor. Any other use
of these units will void the warranty
and the manufacturer will not be
responsible for problems or damages
resulting from such misuse. Refer to the
enclosed Replacement Parts Manual to
identify compressor as single stage or
two-stage.
Safety Guidelines
This manual contains information
that is very important to know
and understand. This information
is provided for SAFETY and to
PREVENT EQUIPMENT PROBLEMS.
To help recognize this information,
observe the following symbols.
Danger indicates
an imminently
hazardous situation which, if not
avoided, WILL result in death or
serious injury.
Warning indicates
a potentially
hazardous situation which, if not
avoided, COULD result in death or
serious injury.
Caution indicates
a potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Notice indicates
important
information, that if not followed,
may cause damage to equipment.
REMINDER: Keep your dated proof of purchase for warranty purposes!
© 2012
TF2101, TF2111, TQ3010, TQ3011, TX2101, TX2118
Unpacking
When unpacking unit, inspect carefully
for any damage that may have occurred
during transit. Make sure any loose
fittings, bolts, etc., are tightened before
putting unit into service. In case of
questions, damaged or missing parts,
please call 1-800-543-6400 for customer
assistance. Have the serial number,
model number, and parts list (with
missing parts circled) before calling.
DO NOT RETURN
THE PRODUCT TO
THE RETAILER!
during shipping, handling or use.
Damage may result in bursting and
cause injury or property damage.
READ & FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
DO NOT DISCARD
General Safety
CALIFORNIA PROPOSITION 65
contain chemicals, including lead,
known to the State of California
to cause cancer and birth defects
or other reproductive harm. Wash
hands after handling.
dust when you cut, sand,
drill or grind materials
such as wood, paint,
metal, concrete, cement, or other
masonry. This dust often contains
chemicals known to cause cancer,
birth defects, or other reproductive
harm. Wear protective gear.
Attach it to this manual or file it for safekeeping.
http://www.chpower.net/reg
This compressor/pump is NOT
equipped and should NOT be
used "as is" to supply breathing
quality air. For any application of
air for human consumption, you
must fit the air compressor/pump
with suitable in-line safety and
alarm equipment. This additional
equipment is necessary to
STOP!
properly filter and purify the air
to meet minimal specifications
for Grade D breathing as
Do not operate
described in Compressed
unit if damaged
Gas Association Commodity
Specification G 7.1, OSHA 29
CFR 1910. 134, and/or Canadian
Standards Associations (CSA).
DISCLAIMER OF WARRANTIES
In the event the compressor is
used for the purpose of breathing
air application and proper in-line
safety and alarm equipment
is not simultaneously used,
This product or its
existing warranties are void, and
power cord may
the manufacturer disclaims any
liability whatsoever for any loss,
personal injury or damage.
Record the Model No., Serial No. and
You can
create
date of purchase in the space below.
Model No.
Serial No.
Date of purchase _________________
Breathable Air Warning
______________________
______________________
Retain these numbers for
future reference.
IN255005AV 2/12
