C O N N E C T I O N S : C O N T A C T C L O S U R E S
DO NOT APPLY VOLTAGE TO THE CONTACT! DOING SO WILL DAMAGE THE INPUT AND IS NOT COVERED
UNDER WARRANTY.
The RDM10 is shipped with two terminal blocks that connect to the back ports. Lost or missing blocks can be purchased
from authorized Obsidian Dealers.

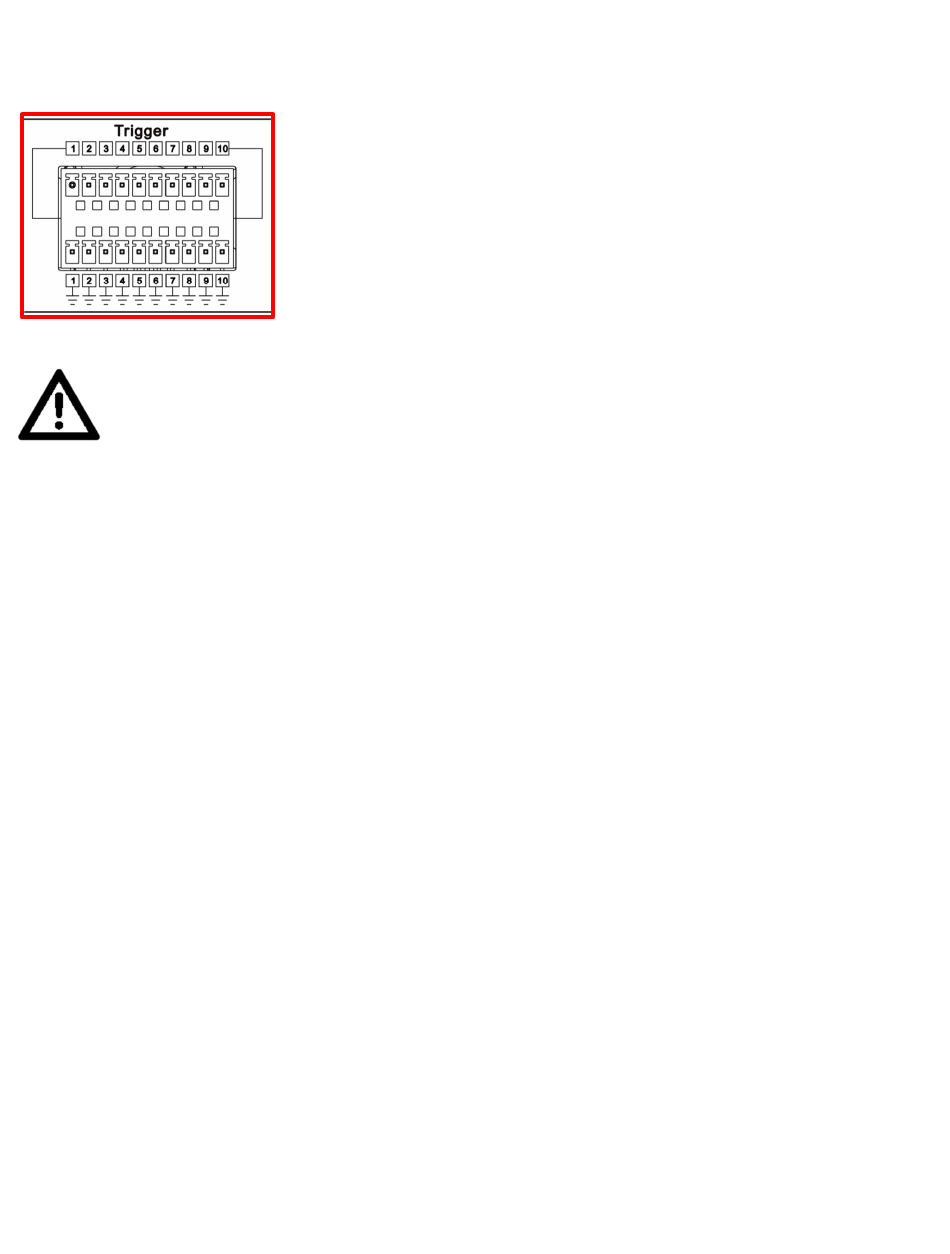

10 Inputs are provided that can be mapped to various functions of the
RDM10. The inputs are simple dry contact closures and are provided in ten
pairs of trigger and ground connections.
11
