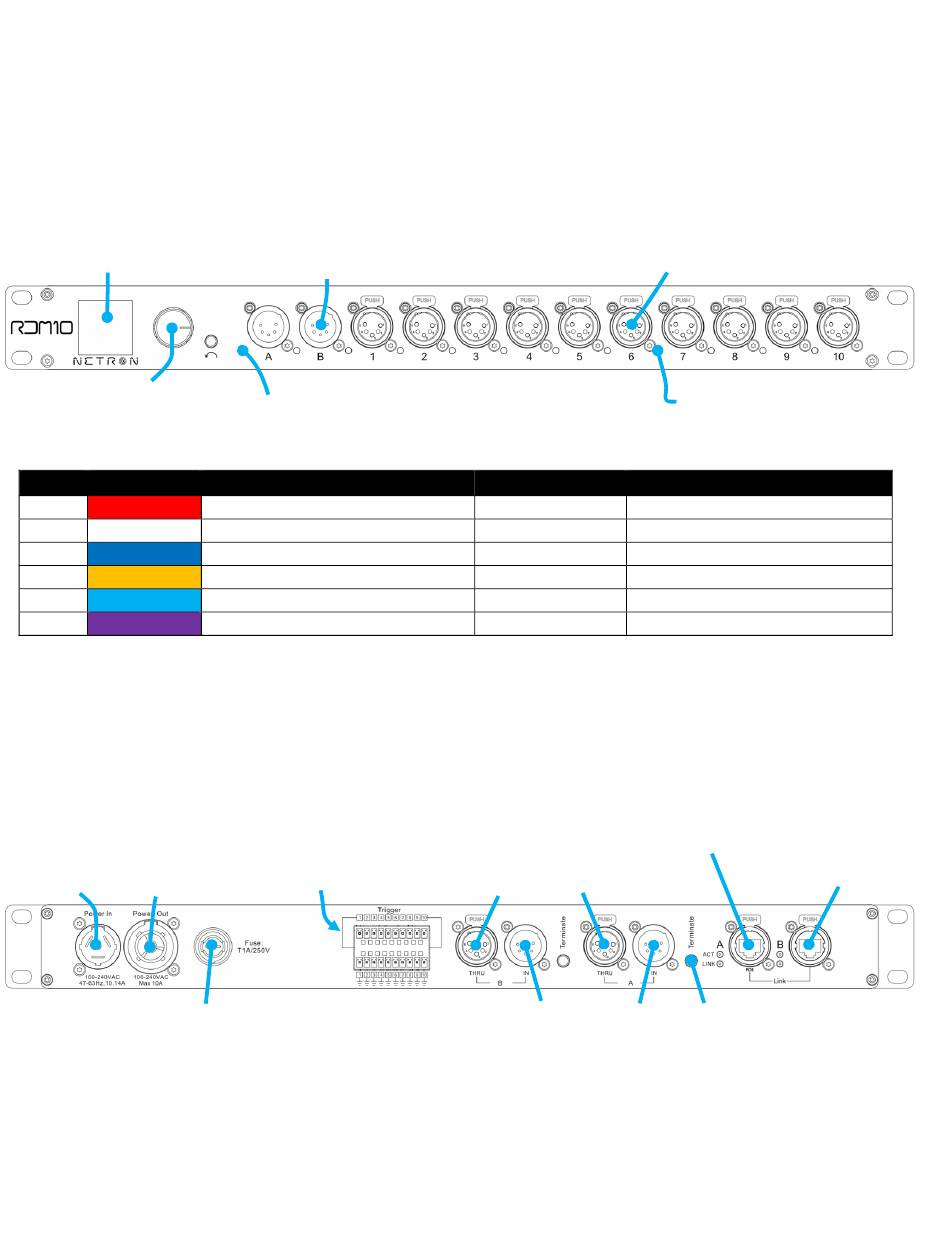

C O N N E C T I O N S : F R O N T & R E A R P A N E L S
F R O N T C O N N E C T I O N S
(10) 5pin DMX/RDM optically isolated ports
-
Full color OLED display
-
Encoder with Push-to-Select / Exit Button
-
OLED Display
Turn to scroll,
push-to-select
D M X P O R T S S T A T U S I N D I C A T O R L E D s
Ports LED Color
DMX Red
DMX White
DMX Blue
DMX Amber
DMX Cyan
DMX Purple
The LEDs are dimmable from the System – Display menu, and can be turned off completely if desired.
R E A R C O N N E C T I O N S
(2) 5pin DMX Input
-
(2) 5pin DMX Through
-
(2) RJ45 network connections (1x POE)
-
(10) Contact Closures (Terminal Block)
-
Power In/Thru
-
Power In
Power Out
(2) 5-Pin
DMX Input
Menu return
Solid
Error
Assigned to A
Assigned to B
Assigned to Merger
Set to Send Static DMX Value
Contact Closures
(Terminal Block)
Fuse
Slow Blink
No DMX Signal
No DMX Signal
No DMX Signal
RJ45 Network
connection w/POE
5pin DMX Through
5pin DMX In
10
(10) 5-Pin Opto-Isolated
DMX Outputs
DMX Port Status
Flashing/Strobing
active RDM communication
RJ45 Network
connection
Terminate button (120
Ohm) for DMX In
