BikeWing Assembly

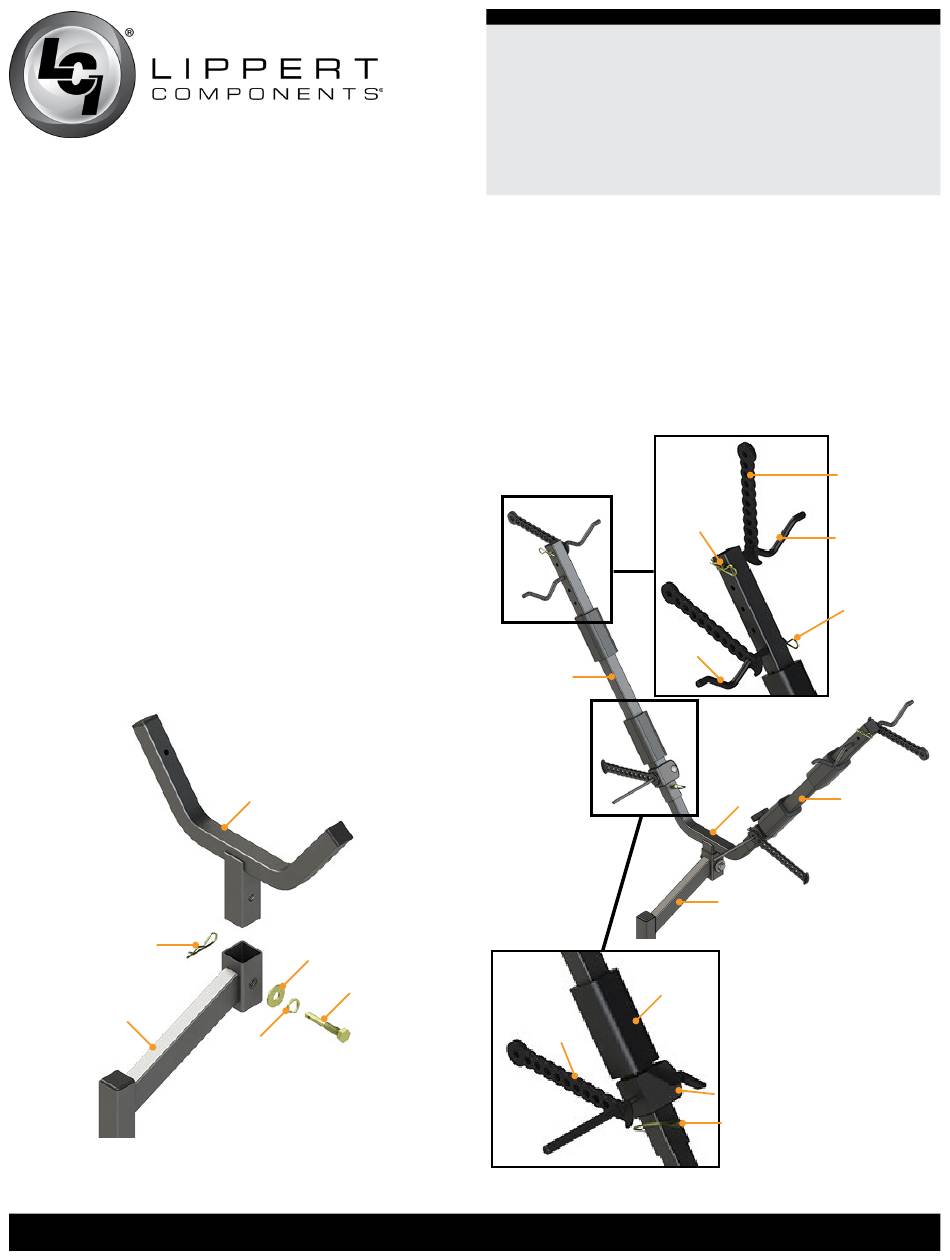

1. Attach Y-shaped base to Stinger (if necessary) and
secure with NoMotion pin, washers and hairpin cotter pin
(Fig.4).
2. Slide one SwayStop™ pin onto each wing starting
from the bottom so the SwayStop is between the snap
pin and the pad (Fig.5). The pins should point in opposite
directions.
NOTE: Both the pads and the SwayStop pins slide along
the length of the wings.
NOTE: Two additional SwayStop pins are included as
options if it is desired to secure both bicycle wheels to
SwayStop pins. If using this option, slide the additional pins
onto the wings while making sure the two pins on each
wing point in opposite directions.
3. Attach wings to Y-shaped base using two snap pins
(Fig.5).
4. Install six or eight rubber straps, including one on each
cradle and one on each SwayStop pin.
hairpin
cotter pin
BikeWing
Stinger
Fig.4
lci1.com
BikeWing
Y-shaped base
flat washer
NoMotion pin
split lock
washer
574-537-8900
Hitch-IT
BikeWing
Installation and Owner's Manual
(For Aftermarket Applications)
5. Attach four cradles, including two on each wing (Fig.5).
Each wing should have one cradle facing forward and one
cradle facing backward.
NOTE: Several hole positions are provided for cradles.
6. Secure cradles with hairpin cotter pins.
NOTE: Adjustment will be necessary depending on the
size and desired position of the bicycles.
wing
rubber
strap
Fig.5
6
CCD-0002231
BikeBase
™
Combo Unit
™
hairpin
cotter pin
cradle
Y-shaped
base
Stinger
pad
SwayStop pin
snap pin
/
™
rubber
strap
cradle
hairpin
cotter pin
wing
