Introduction

The Basement Watchdog combination sump pump
system is designed to provide both primary and
backup pumping capabilities. The primary pump
will operate as long as it is receiving AC power. If
the power is interrupted, or more water is coming
into the sump than the AC pump can handle, the
backup sump pump will begin pumping
automatically. The backup system has unique
monitoring features that diagnose a problem and
sound an alarm. A light on the display panel of
the control unit will indicate the cause of the
alarm and the corrective action. The two systems
have been preassembled for easy installation.
The Basement Watchdog
Sump Pump System includes:
• A 1/3 HP primary pump with a caged dual
float switch, and a blue piggyback controller
that plugs into the wall outlet
• A backup pump supported by a bracket
• A control unit for the backup pump with a
battery fluid sensor, a dual float switch, and
battery cables
• A cable tie to attach the backup control unit
to the discharge pipe
• Two cable ties to secure the other wires to the
discharge pipe
• A battery cap with a hole to accommodate the
fluid sensor
• A battery charger
• A rubber union
You will also need to supply:
• A Basement Watchdog Emergency Standby
Battery, Basement Watchdog Big Standby
Battery or Basement Watchdog Maintenance
Free (AGM) Standby Battery.*
DO NOT use an automotive battery
with this system
• Six quarts of 1.265 specific gravity
battery acid (if using a wet cell
standby battery)
• A battery box
*The internal construction of some wet
cell batteries may not be compatible
with this system. Glentronics can not
guarantee the compatibility of other
brands of batteries. The use of a
Basement Watchdog battery is
HIGHLY recommended.

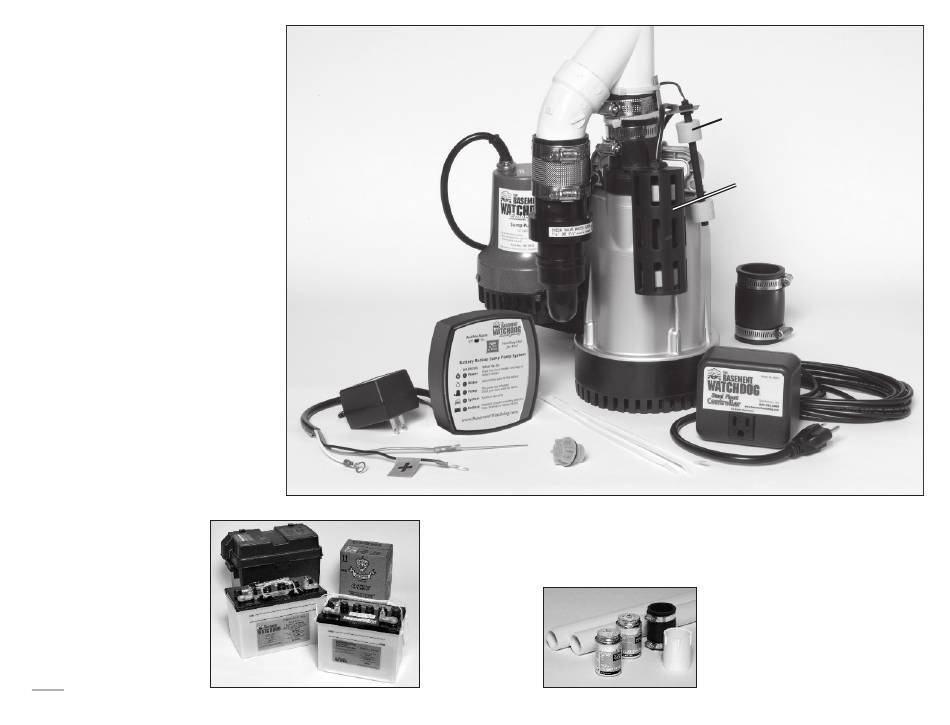

Backup
Pump
Backup
Pump
Controller
Battery
Charger
Fluid Sensor
Battery Cables
For some installations you may also need additional items:
• 1-1/2" rigid PVC
pipe
• A 1-1/2" PVC pipe
connector or a
1-1/2" rubber union
• PVC pipe cleaner
and cement
Primary
Pump
Battery Cap
Cable Ties
Backup Pump
Float Switch
Primary Pump
Float Switch
Rubber
Union
Primary
Pump
Controller

System Specifications

Power supply requirements . . . 115 volts, 60 Hz
AC pump pumping capacity. . . 3100 GPH @ 10'
DC pump pumping capacity. . . 1000 GPH @ 10'
Overall dimensions . . . . . . 10"W x 17-3/4" H
Pump housings & strainers . . . . . .Non-corrosive
