ELECTRICAL CONNECTIONS / RACCORDS ÉLECTRIQUES / CONEXIONES ELÉCTRICAS
MASTER
FIXTURE
rev. 05/3/12 © 2012 Robern, Inc.

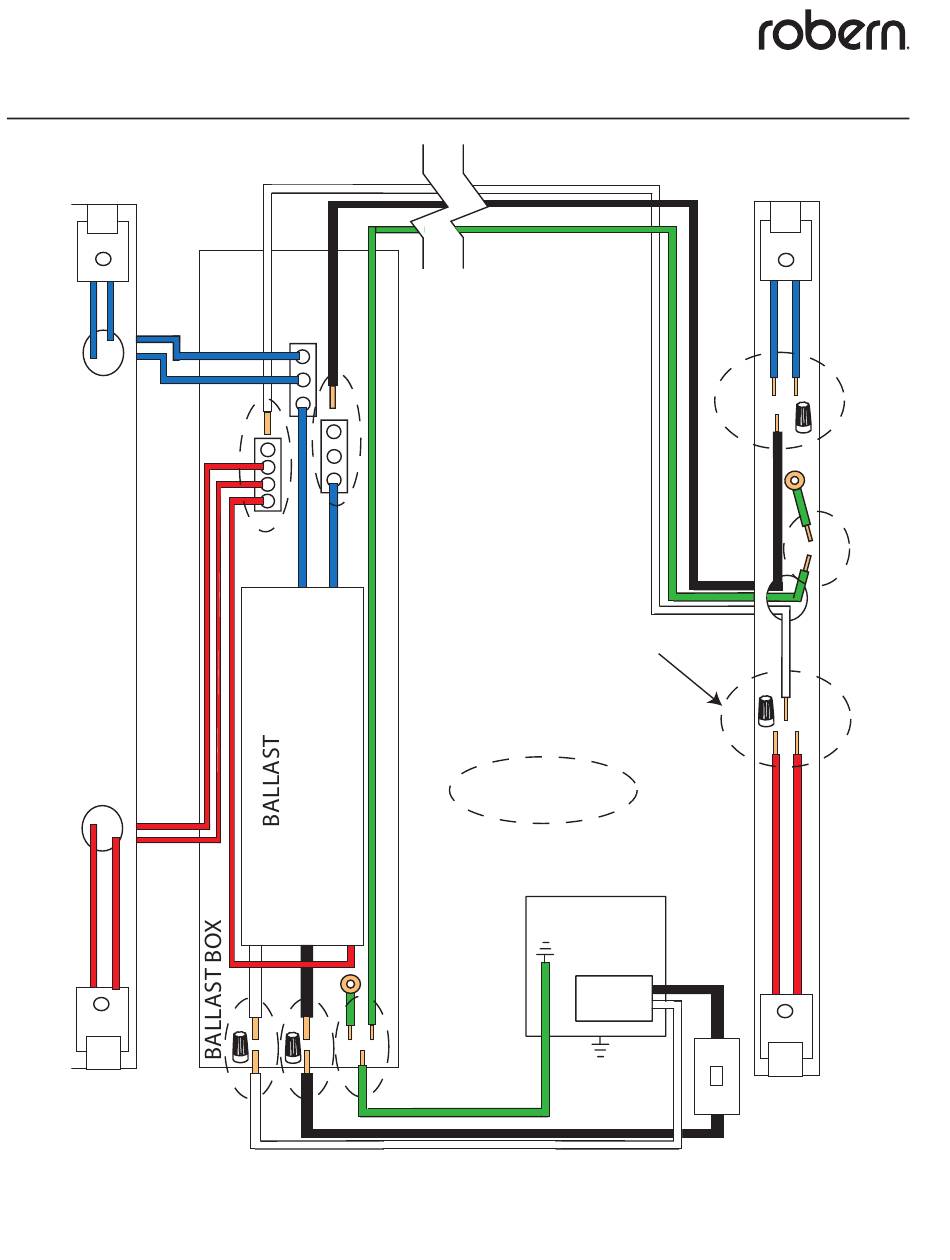

MTFL NON-DIMMING WIRING DIAGRAM
B
B
G
W
B
R
G
800.877.2376
www.robern.com
HOMEOWNER USES
STANDARD ROMEX FROM
MASTER TO REMOTE
IN THE REMOTE FIXTURE,
BE SURE TO CONNECT WIRES
AS SHOWN USING WIRE NUTS
FIELD CONNECTION
CIRCUIT
BREAKER
15A
CIRCUIT
Cabfax 1150
REMOTE
FIXTURE
G
209-1029 MTFL LIGHT FIXTURE
209-1150 BRT™
2-2
7
