Flue assembly - Mounting the hood body
• Insert the upper duct and fix it on the top of the upper duct
connection using the 12c screws (2.9 x 9.5) supplied with the
appliance.
Recirculation version
• It is necessary to make sure that the air outlet connection 15 is
placed correctly so that the air outlet grid in it corresponds to
that of the chimney.
• If the grids of the two parts are not corresponding to each
other, it will be necessary to remove the chimney and to adjust
the position of the air outlet connection 15, and at last to as-
sembly the parts again by following the earlier indications.

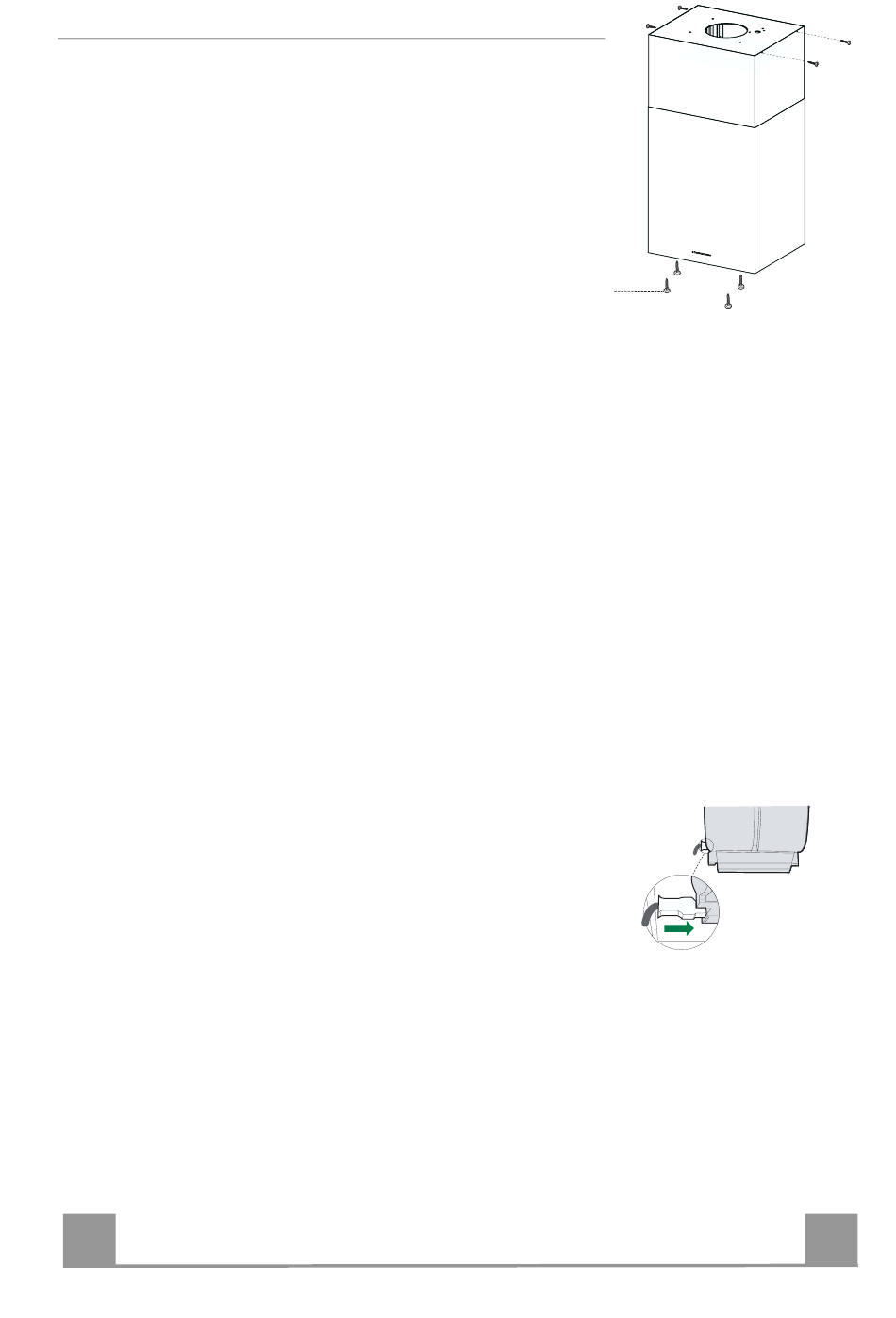

Before fixing the hood body to the frame:
• Open the suction panel by turning the specific knob.
• Disconnect the panel from the hood canopy by sliding the fix-
ing pin lever.
• Remove the grease filters from the hood body.
• Remove any activated charcoal filters.
• From below, use the 4 screws 12f (M6 x 10) provided to fix the
hood body to the frame.

ELECTRICAL CONNECTION

• Connect the Hood to the mains power supply, inserting a two-
pole cut-out switch with contact aperture of at least 3 mm
along the line.
• Pull the Comfort Panel to open it, ensure that the supply cable
connector is properly inserted into the Suction device socket
• Join the connectors.
• Install the odour filter and the charcoal filter in case the hood is
to be used in recycling version.
• Install the grease filter again, and successively the suction
panel.
