Antiscanning: When this option is selected, the central unit is disabled for a period of
3 minutes after receiving 3 consecutive non-memory-resident commands. You must wait
3 minutes with the central unit powered on for it to be re-enabled.
Auto Programming: When commands are saved to memory, the central unit always
seeks the next free position automatically.
GROUP OF 2 MICROSWITCHES
Microswitch
N°
1
2
Pulse: The central unit keeps the relay activated while the control unit is pressed.
Bi-stable: The central unit activates the relay the first time the control unit is pressed and
does not deactivate it until it is pressed again. If the relay is activated and the central
unit no longer receives power, it is automatically deactivated.

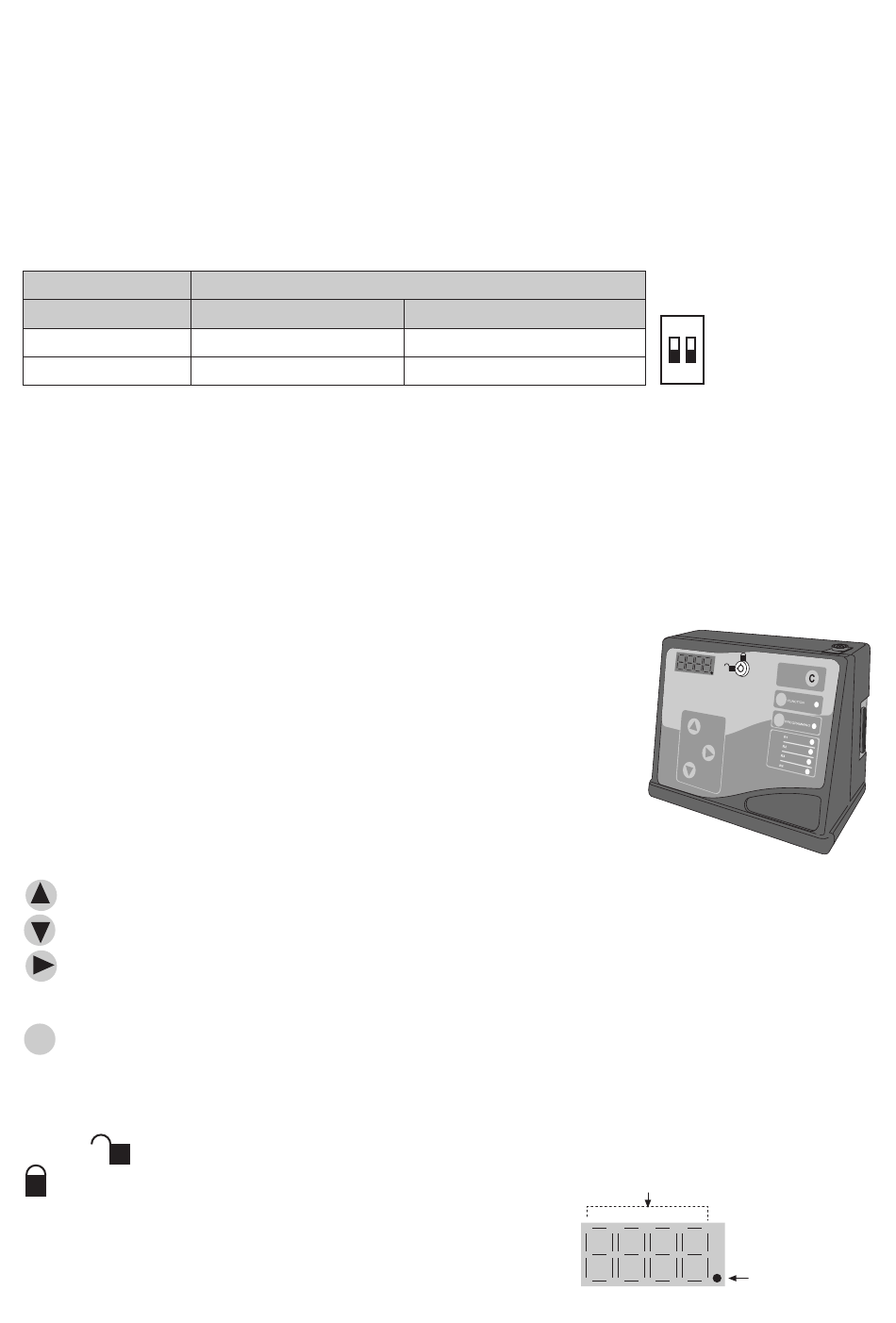

4. DESCRIPTION OF THE FRONT PANEL

Leds:
Function Led: Function mode indicator.
Programming Led: Programming mode indicator.
R1LED: Activation of relay 1 indicator.
R2 LED: Activation of relay 2 indicator.
R3 LED: Activation of relay 3 indicator.
R4 LED: Activation of relay 4 indicator.
Buttons:
Up (Increases the location no.)
Down (Decreases the location no.)
Right (Moves the password digit and changes the date and time with the printer
card connected).
Delete (Deletes the location's code)
C
PROGRAMMING button. Selects Programming mode.
FUNCTION button. Selects Function mode.
Key in (open). Allows the Controller's case to be opened. To close it set the key to
(closed).
Viewing: 4 digit view. Decimal point indicating location
occupied.
Function
OFF
Relay 1 Pulse
Relay 2 Pulse
ON
Relay 1 Bi-stable
Relay 2 Bi-stable
18
R1 R2
ON
1 2
Location N°
Decimal point
indicating location
occupied.
