Step Two: Connect the 22 Mbps Wireless Access Point
•
•
The Wireless Access Point has three LED status indicators, LINK, DATA, and POWER. When the
Wireless Access Point is plugged in, the PWR LED will illuminate. When a network connection is
established, the LINK LED will be green. When there is network activity, the DATA LED will be yel-
low.
Step Three: Verify detection of the 22 Mbps Wireless Access Point
After the Wireless Access Point is installed, double-click the icon for the Configuration
Utility on your desktop. If the 22 Mbps Wireless Access Point is correctly installed, the
configuration information will be displayed.
To verify that you are connecting to the correct Wireless Access Point, check the MAC address.
The MAC address is located on the bottom of the 22 Mbps Wireless Access Point case and in the
Link Information option of the Configuration Utility.
When you have identified the correct Wireless Access Point, note the IP address that is listed.
Launch a Web browser on the computer that is physically connected to the 22 Mbps Wireless
Access Point. Enter the IP address for your Wireless Access Point. This will open the Web Configu-
ration Utility. There is no default username or password, so just click OK when you are prompted.
When the Web Configuration Utility launches, you can change the information about your wire-
less network. For more information about both Configuration Utilities for the 22 Mbps Wireless
Access Point, refer to the User Guide on the Installation CD-ROM.
Note:
If you need to reset the Wireless Access Point at any time, perform the following
steps. Press in and hold the RESET button. While holding in the RESET button, unplug the
power adapter from the Wireless Access Point and then plug it back in. Continue to hold the
RESET button for about five seconds to restore the factory default settings. When this is per-
formed, the PWR LED will blink.
Attention: If you reset the Wireless Access Point, you will lose your custom settings.
Congratulations!
You should now be able to connect your Wireless Access PC Cards and PCI Adapters to the Wire-
less Access Point.
For more detailed information about the installation procedure and the Access Point Web Config-
urator, refer to the User Guide on the Installation CD-ROM.
2

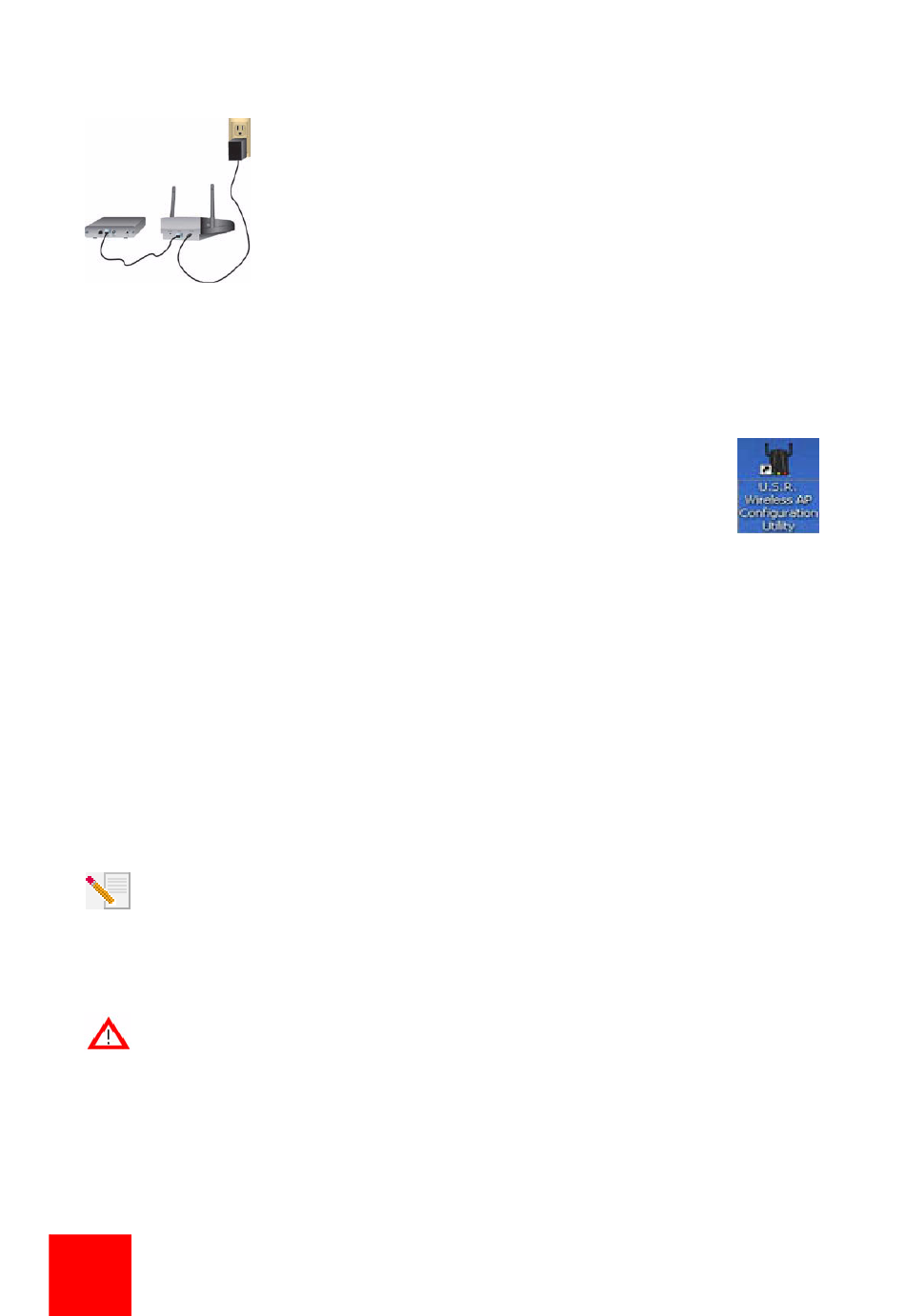

Use the Ethernet port and an RJ-45 cable to connect the 22 Mbps
Wireless Access Point to one of the following devices: a cable or DSL
modem with routing capabilities, a hub, a bridge, an existing Ethernet
LAN, or a router.
Attach the power supply to the Wireless Access Point and to a power
outlet.
You have finished installing your hardware and the necessary software.
