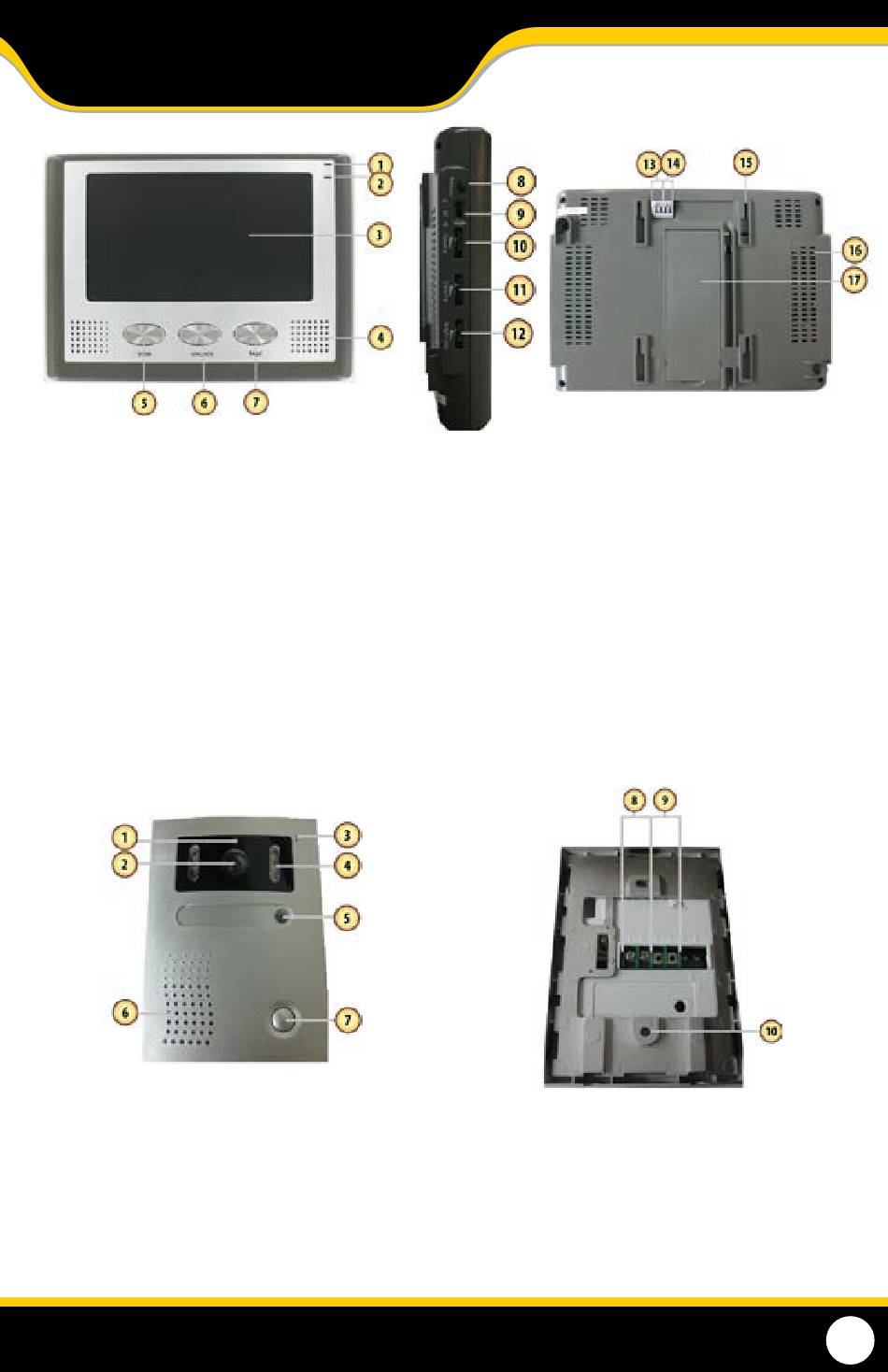

BUTTONS AND CONNECTIONS

7" LCD Monitor

1. Microphone
2. Power Supply Indicator LED
3. 7"LCD Screen
4. Speakers
5. View – Allows you to monitor the camera
6. Unlock – Releases door strike
7. Talk – Initiates communication with camera unit
(from monitoring mode)
8. Melody – Changes door bell melody (must be in
monitoring mode)
9. Melody Volume – Adjust the melody volume level
between low (L), medium (M), and high (H)

Camera/Doorbell

1. CDS sensor – Detects level of darkness to
automatically activate IR LEDs
2. Camera
3. Microphone
4. Infrared (IR) LEDs – Allow for night vision up to 8 ft
5. Mounting Screw Hole
6. Speaker
Model # GK300-7M2 Modèle # GK300-7M2
10. Volume – Controls the speaker volume on the
monitor
11. Chroma – Controls color of image
12. Brightness – Controls brightness of image
13. Camera Connection (positive =1 and
negative= 2)
14. Door Strike Connection (positive = 3 and
negative = 4)
15. Wall Mount Connection
16. Ventilation Ports
17. Stand (Optional Use)
18. Mount
7. Door bell
8. Camera to Monitor Connections (positive =
1 and negative = 2)
9. Door Strike (positive = 3 and negative = 4)
10. Mounting Bracket
