NOTE: Take care when removing PC board as there are many wires connected to the board.
Model: Typhoon AK21
- Remove bottom panel by 6 screws (FIG. 2A) and disconnect light socket connectors.
- Remove 3 screws securing PC board plate to access PC board (FIG. 3B).
Model: Hurricane AK25
- Remove bottom panel by 3 screws (FIG. 4C) and disconnect light socket connectors.
- Remove PC board plate by 2 screws (FIG. 5D).
- Remove 2 screws securing PC board assembly to access PC board (FIG. 6E).

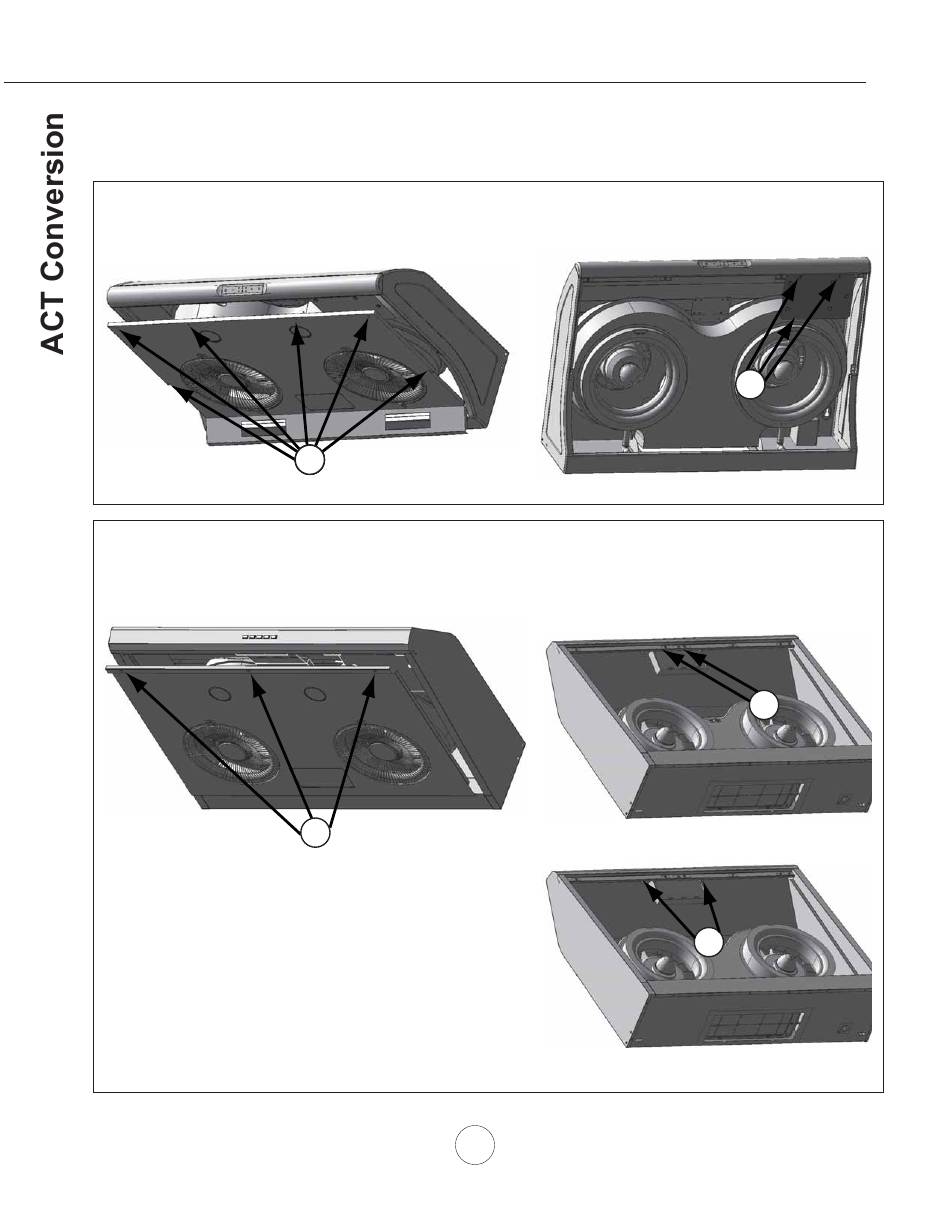

Accessing PC Board Instructions
A A A A
FIG. 2
C
FIG. 4
24
www.zephyronline.com
B
FIG. 3
D
FIG. 5
E
FIG. 6
