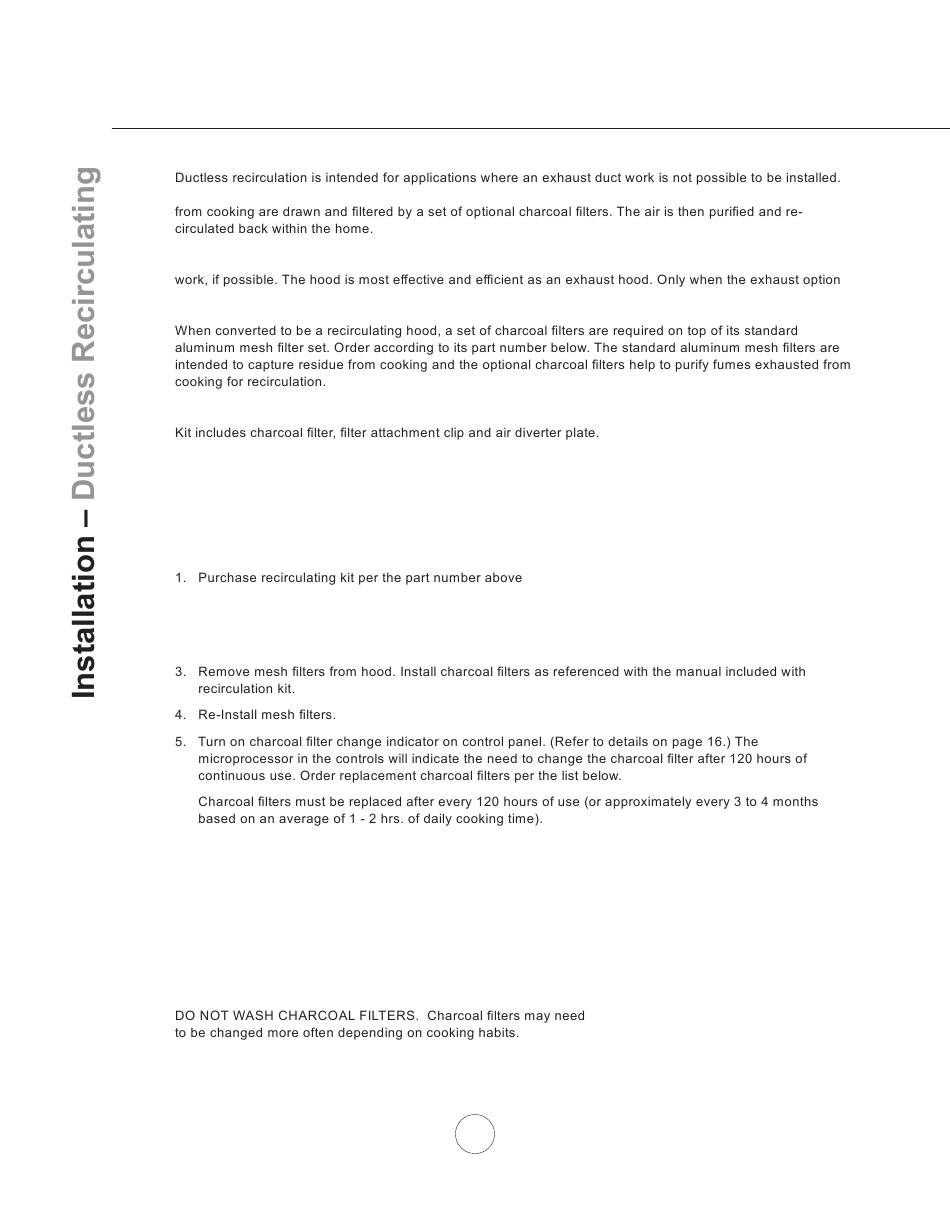

When converted, the hood functions as a recirculating hood rather than an exhaust hood. Fumes and exhaust
We recommend to ALWAYS exhaust air outside of the home by employing existing or installing new duct
is not possible should you recourse to converting the hood into a recirculating hood.
RECIRCULATING KIT (REQUIRED IF NO DUCTING IS USED)
Hood Models Part No.
ZAZ ZRC-02AZ
ZLC ZRC-00LC
ZRM-E36DS ZRC-02RM
ZRM-E42DS ZRC-01RM
ZRE ZRC-00RE
2. Secure air diverter plate to top support frame. Open sides of air diverter plate should face left and right
to direct air through the louver holes located on the top duct cover. Run 6" ducting from top of hood and
secure to air diverter plate.
NOTE: For more details refer to manual included with recirculation kit.
Charcoal Filter Replacements
Hood Model
ZAZ
ZLC
ZRM-E36DS
ZRM-E42DS
ZRE
Filters in pkg.
2
1
2
3
2
Part No. Qty to Order
Z0F-C091 2
Z0F-C092 1
Z0F-C002 2
Z0F-C002 3
Z0F-C002 2
14
