5 | Connection

Suitable connection material, cables and accessories can be found in the accessory range of LED2WORK.
PIN assignment of the M12 connector is as follows:
PIN allocation
PIN 1 = 24V DC
PIN 2 = 24V DC
PIN 3 = GND
PIN 4 = 24V DC
PIN 5 = 24V DC

6 | Maintenance and Care

The LED luminaire is maintenance-free. Do not make any alterations to the luminaire.
The LED light sources mounted in the luminaire are connected to the luminaire housing in a special way (thermal cou-
pling) and may react sensitively to electrostatic discharges (ESD). That is the reason why repairs may only be carried
out by the manufacturer or by persons authorised and qualified by the manufacturer.
Turn off the light before cleaning and let it cool down completely. Clean the outside of the luminaire with a soft, dry and
clean cloth. To remove excess dirt, moisten the cloth with water. Never use aggressive cleaning agents, as these may
cause discolouration of the housing.
10 | BA UNILED SL RGB-W . BA 04/2022

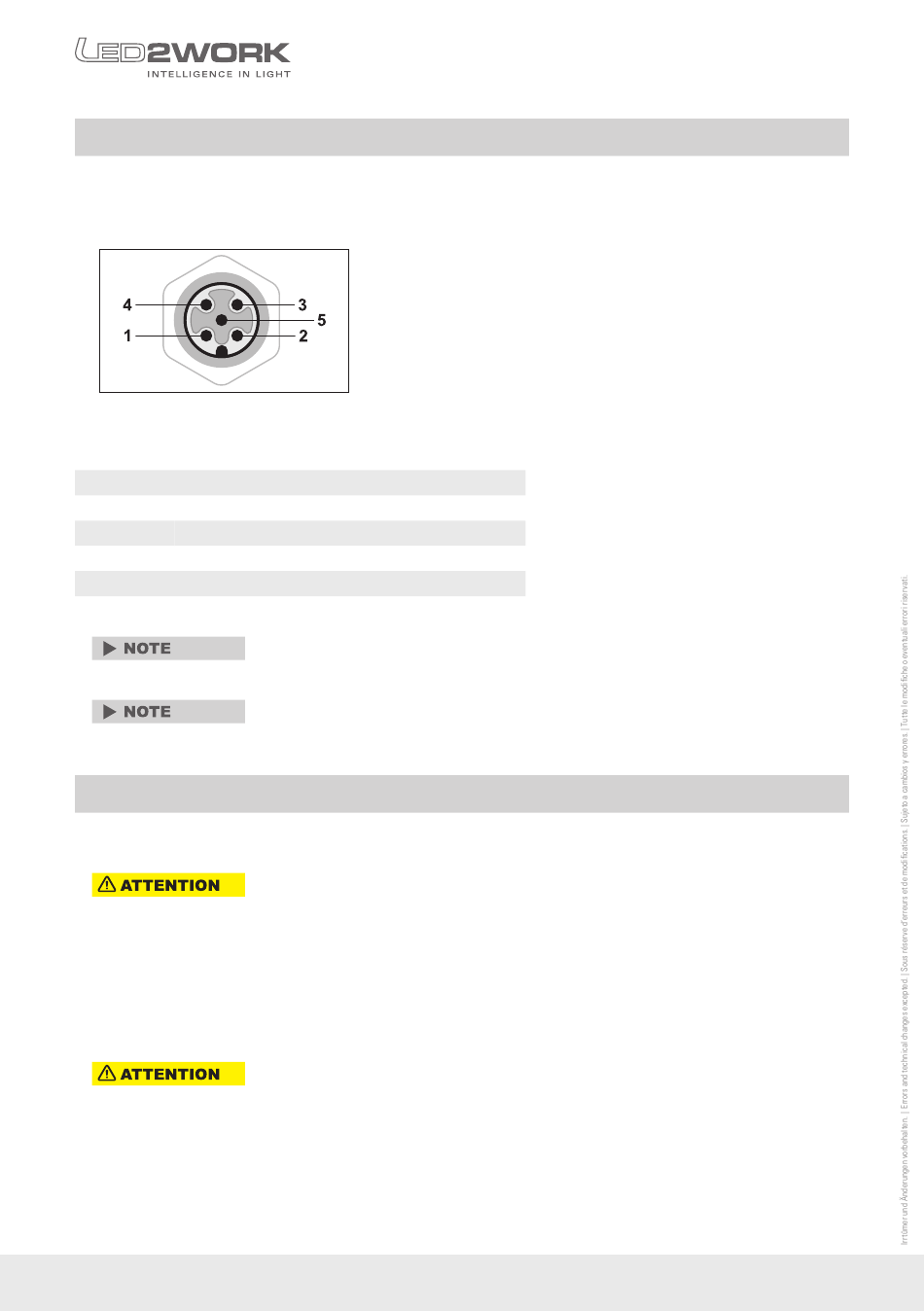

Schematic drawing of M12 plug
LED colour: green
LED colour: blue
LED colour: red
LED colour: white
Further colours can be displayed by gating two or three PINs simultaneously. Do not
operate the white light colour simultaneously with the coloured light channels.
Get in touch with us for more information.
The luminaire is not equipped with a ON/OFF switch. Usually you switch the luminaire ON
or OFF via external switches of machines or systems.
Do not open the luminaire!
No liability is assumed for damages resulting from the use of unsuitable cleaning agents.
