SolarEdge Wi-Fi Kit Quick Installation Guide

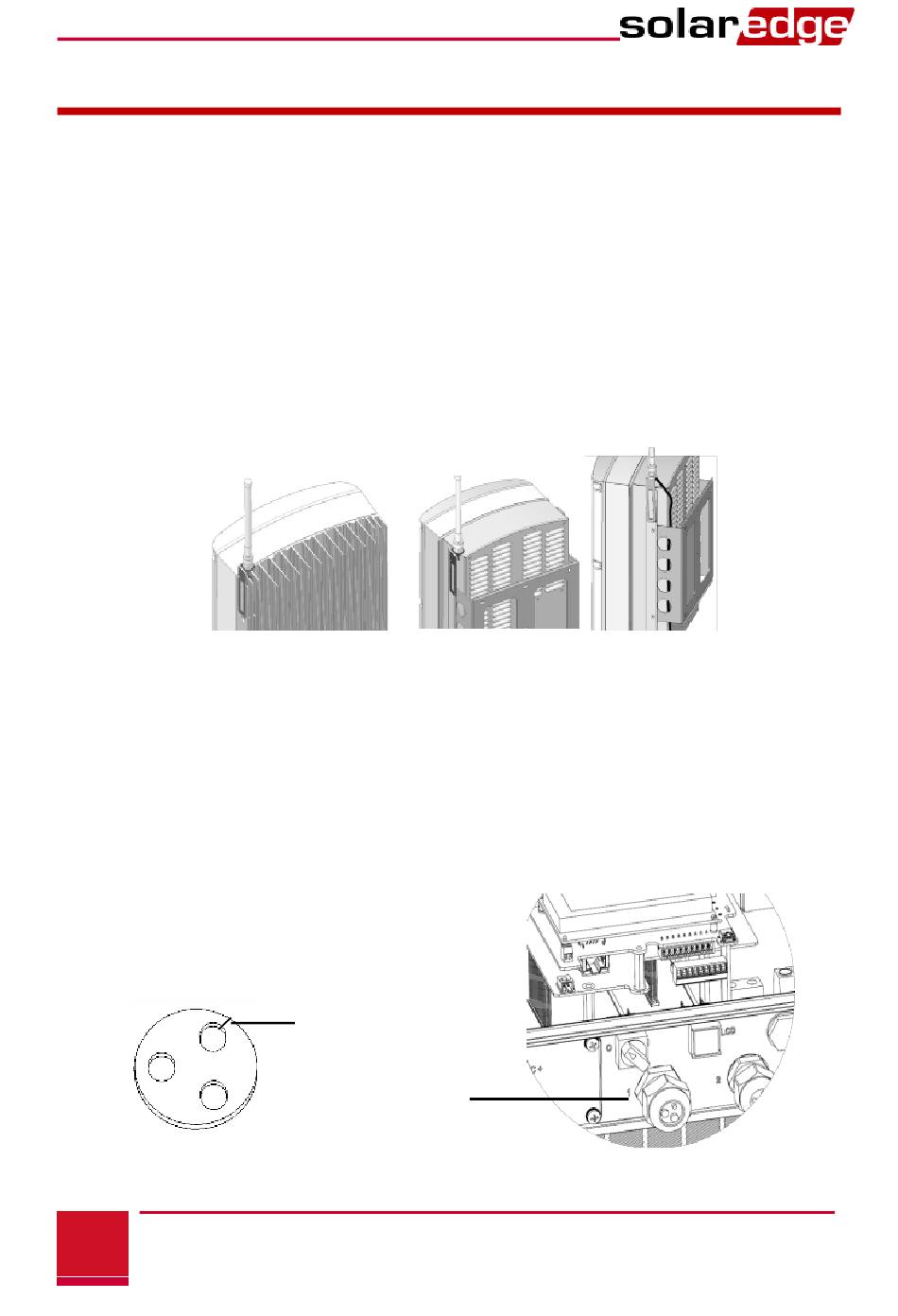

Installing the Antenna and Wi-Fi Module

Install the supplied antenna and module in the device that will
communicate within the network (inverters or SMI; the steps herein
describe connection to an inverter).
1
Connect the antenna to the mounting clip and attach the
mounting clip to the top of the inverter or to the wall. Make
sure the antenna is vertical.
2
Route the antenna cable behind the inverter.
Single phase inverter
3
Disconnect the AC power to the inverter and wait 5 minutes.
4
Open the inverter cover as described in its manual.
5
Remove the rubber seal from cable gland number 1 and insert
the RF cable through the gland and through the gland opening
in the inverter.
6
Push the cable into the cut opening of the rubber seal.
Rubber seal
4
Cut opening
Gland #1
Three phase inverter
MAN-01-00166-1.1
