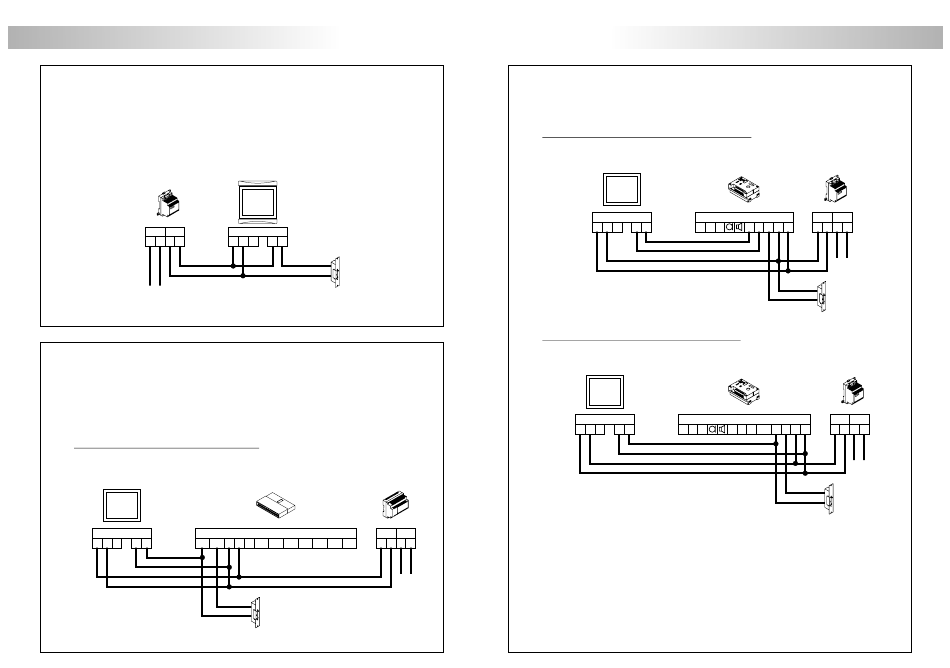

INSTALLATION DIAGRAMS

The enclosed diagram uses a TF-104 transformer (12Va.c.) as access control module feeder.
Módulo de control de accesos
TF-104
transformer
PRI SEC
~ ~ ~ ~
Mains
The wiring of the access control module on 'Stadio Plus' door panels will depends
on the installation type. Use the power supply connected to the door panel.
Audio and video systems with digital installation.
3502/AL EL500 or EL501 microprocessed modules
Access control module
+ -
S 1 2 CV- CV+
S
tand alone operation.
3502/AL
+ -
S 1 2
C
ombined on 'Stadio Plus'
door panels.
FA-Plus/C or FA-Plus
or coded panels power supplies
CN1 SEC PRI
- + - ~
+ D A A V V V V
out in in- in+ Malla out+ out-
Mains
32 33
One access door audio systems with 4+'n' installation.
Access control module
Several access doors systems with 4+'n' installation.
Access control module
+ -
~
INSTALLATION DIAGRAMS
3502/AL EL550, EL554 or EL555
sound modules
CN1
+ -
-
S 1 2 L1 L2 CP P CV
3502/AL
EL551 sound module
CN1
S 1 2 L1 L2 CP P - CO INH
C
ombined on 'Stadio Plus'
door panels.
TF-104
transformer
SEC PRI
~ ~ ~ ~
~2 ~1
Mains
TF-104
transformer
SEC PRI
~ ~ ~ ~
CV CV ~2 ~1
Mains
