6. Connection diagram and rear panel components
APT IP Codec
Network & and DC Supply Connections

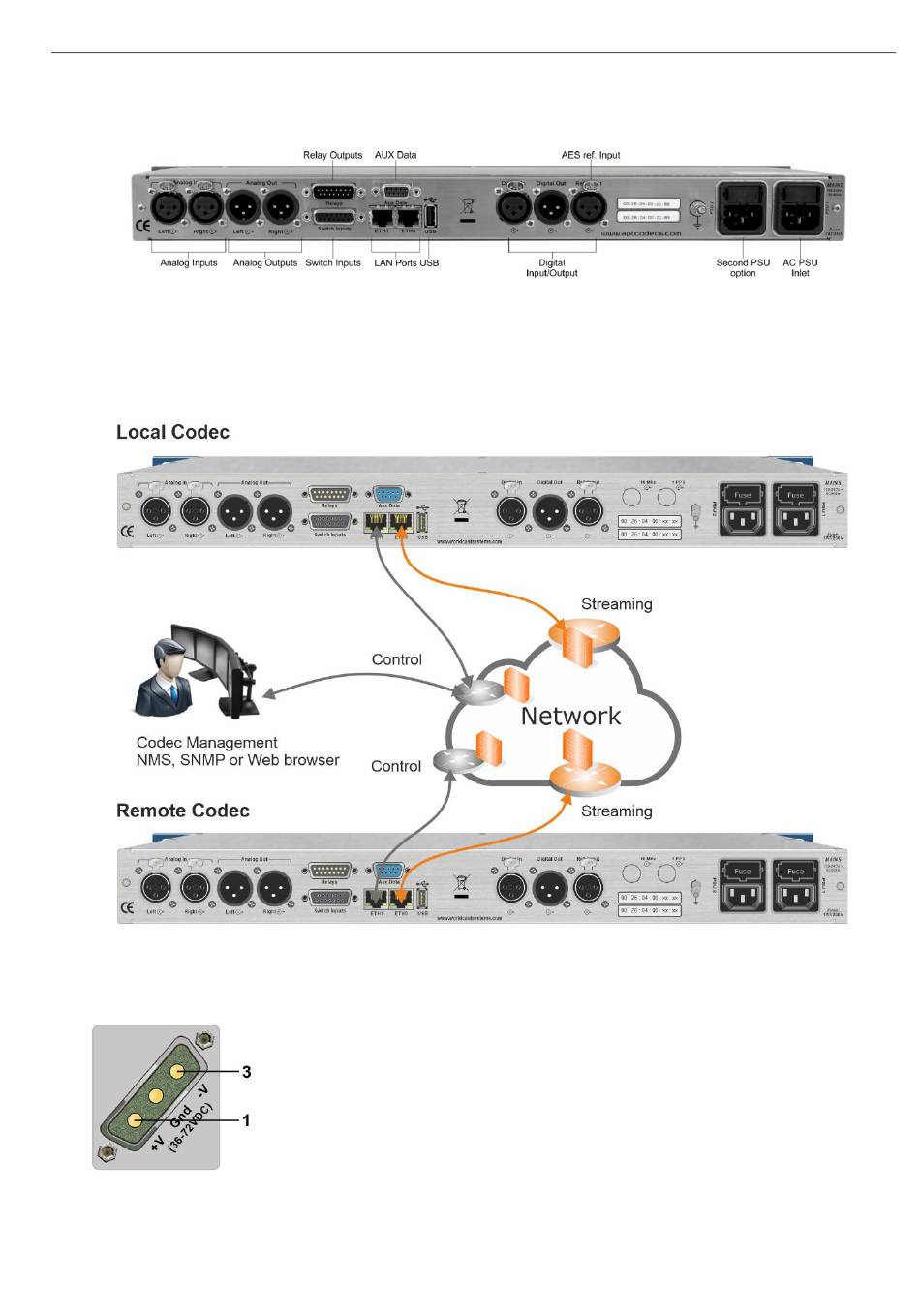

Figure 9: Shows all rear panel components of the IP Codec
Figure 10: Shows the principle of the Codec installation in a generic network
Apply 36 to 72 VDC max.
to +ve (1) and -ve (3)
