Technology:
TECHNICAL
Transmitter frequency:
SPECIFICATIONS
Transmitter radiated power: <20 dBm EIRP
Transmitter power density:
Mounting height
FALCON: from 11.5 to 23'
FALCON XL: from 6.5 to 11.5'
Tilt angle:
Detection zone (typical)
Wide pattern (FALCON XL): 13' (W) x 6.5' (D)
Narrow pattern (FALCON): 13' (W) x 16' (D)
Detection mode:
Minimum detection speed:
Supply voltage:
Mains frequency:
Power consumption:
Output relay: free of potential changeover contact
Max contact voltage : 42V AC/ DC
Max contact current: 1A (resistive)
Max switching power: 30W (DC) / 60 VA (AC)
DESCRIPTION OF
THE SENSOR
INSTALLATION
TIPS
The sensor must be firmly
fastened in order not to
vibrate.
75.5351.02 EN 20080317 (75.5350)

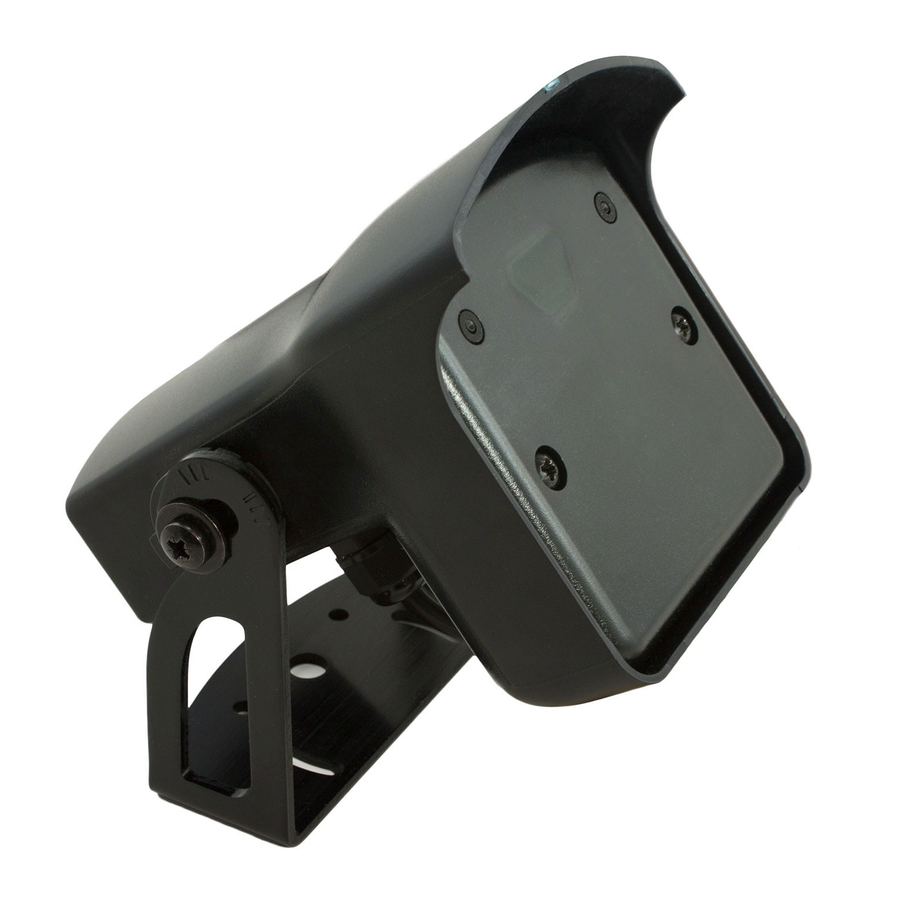

FALCON & FALCON XL
MOTION SENSORS FOR INDUSTRIAL DOORS
• FALCON: for high mounting
Microwave and microprocessor
24.125 GHz
< 5 mW/cm²
0° to 180° in elevation
for a mounting height of 8.2'
for a mounting height of 16'
movement
2.2 in/s (measured in the
sensor axis)
12V to 24V AC +/- 10%
12V to 24V DC +30% / -10%
50 to 60 Hz
< 2W
The sensor must not be
placed directly behind a
panel or any kind of
material.
USER'S GUIDE
• FALCON XL: for low mounting
Hold time: 0.5s to 9s (adjustable)
Manual adjustment:
• orientation of sensing field (mechanically)
• multiple functions (by push buttons).
Remote control adjustments:
• Sensitivity.
• Hold time.
• Detection mode.
• Pedestrian and parallel traffic rejection mode.
• Relay configuration.
Temperature range : -22°F to 122°F (-30°C to +60°C)
Degree of protection: IP65
Product conformity:
Dimensions : 5 in (D) x 4 in (W) x 3 ¾ (H)
Weight:
Housing Material:
Bracket Material:
Cable length:
Cable diameter:
The sensor must not
have any object likely to
move or vibrate in its
sensing field.
R&TTE 1999/5/EC
EMC 89/336/EEC
(127mm (D) x 102 mm (W) x 96mm (H))
0.88 lbs (400 g)
ABS and Polycarbonate
black anodized aluminum
33 ft (10 m)
1/8" (3 mm) (minimum)
1/4" (6.5 mm) (maximum)
The sensor must not
have any fluorescent
lighting in its sensing
field.
