Mechanical characteristics

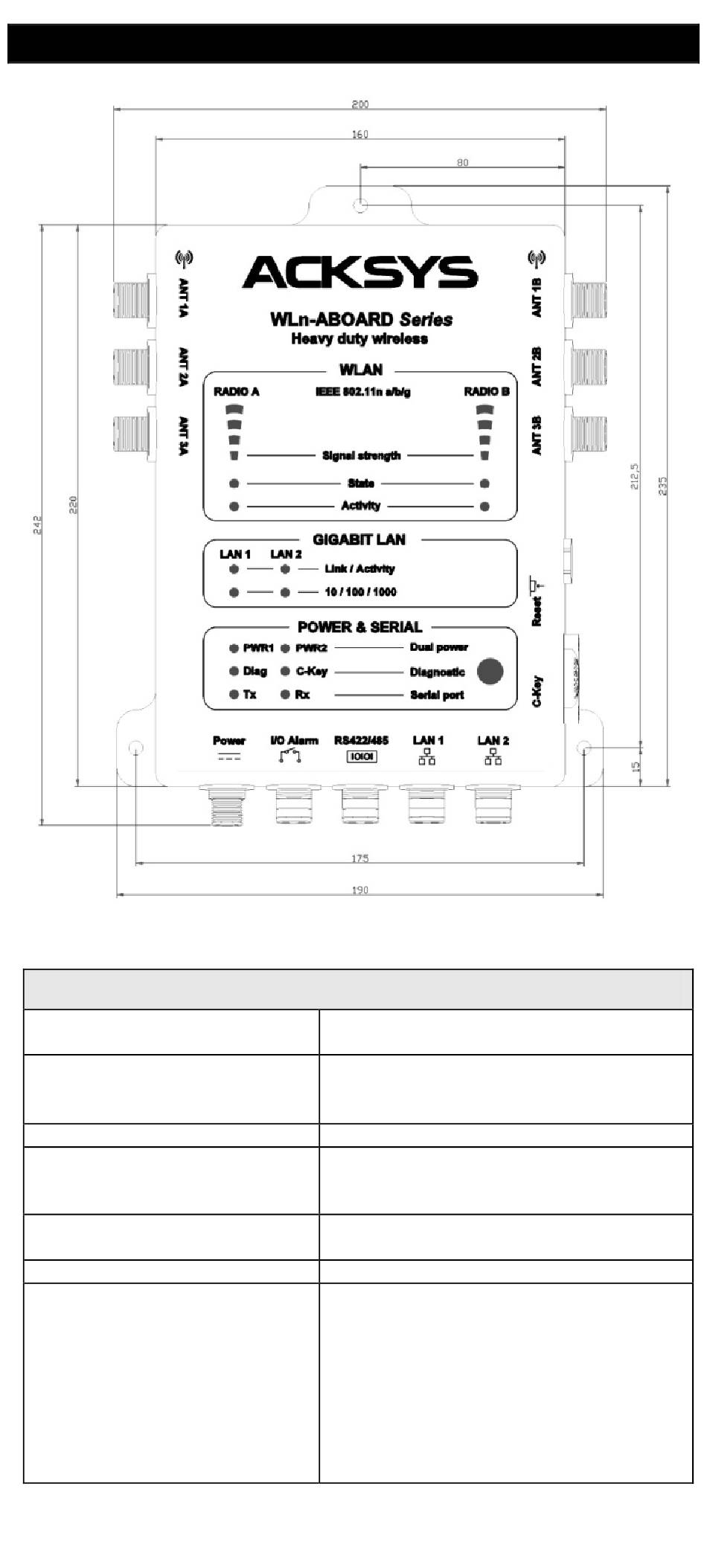

Dimensions (w/o antennas)
Weight (±1%)
/24, /48, /72, /110 option
/H4 option
Enclosure
Operating temperatures range
/H4 option
WLn-PTC option
Environmental specifications
Status indicators
Push button
SPECIFICATIONS
All dimensions are given in mm.
L x l x h = 257 x 200 x 37 mm
L x l x h = 10.12 x 7.88 x 1.47 in
1630 g (58 oz)
1705 g (61 oz)
Add 36 g (1.3 oz)
IP66, cast aluminum housing
–25 to +70°C
–40 to +75°C
–55 to +70°C
Support Railway, automotive
specifications
22 LEDs: see LEDs definition section
Short push, anytime:
Long push (> 2 sec.):
- while operating:
- while in emergency upgrade mode:
- at startup:
(–13 to +158°F)
(–40 to +167°F)
(–67 to +158°F)
 Reset
 Restore factory settings
 Restore factory settings
 enter emergency upgrade
