2-3. Installation the UPS

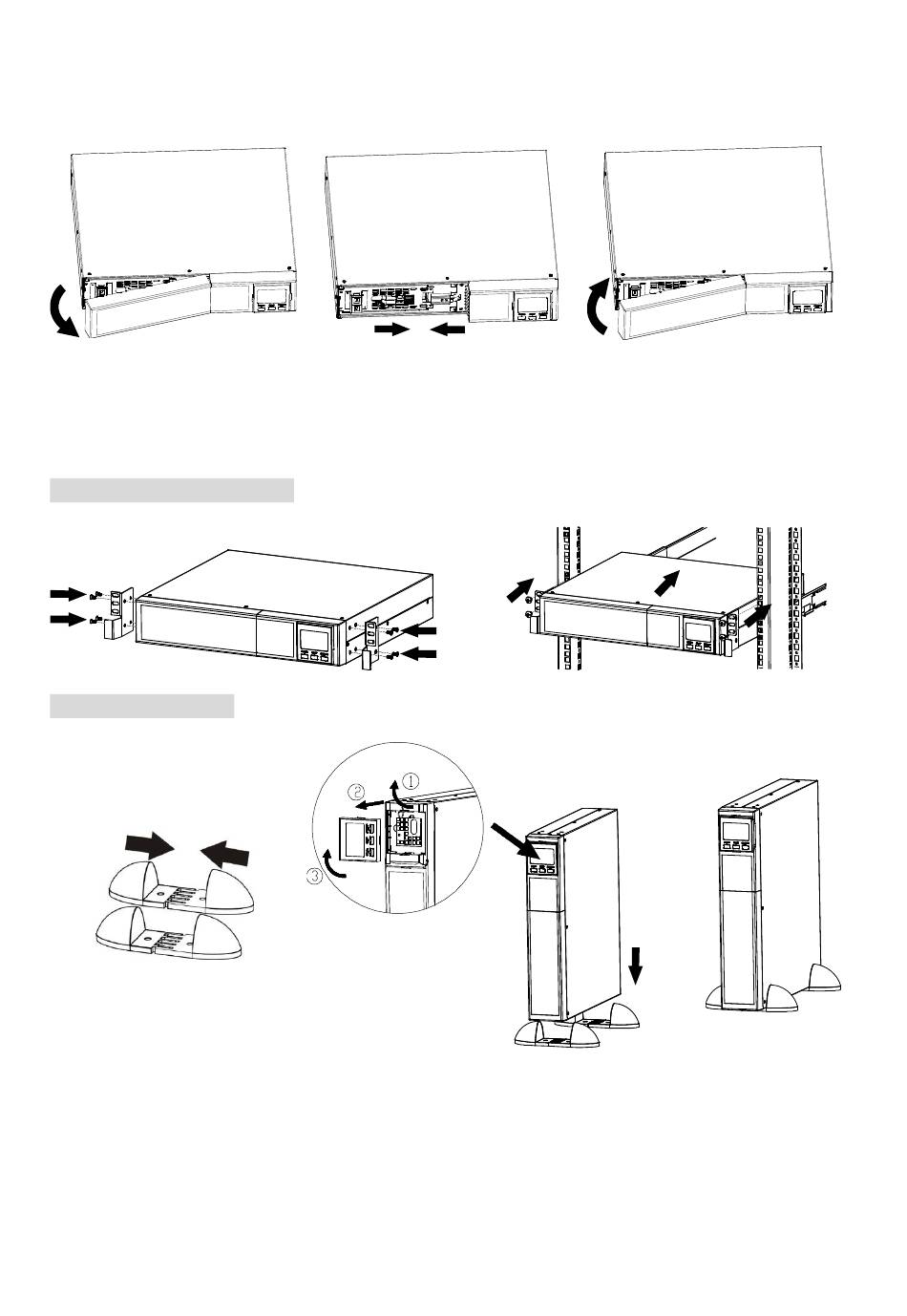

For the sake of safety, the UPS is shipped out from factory without the battery leads
connected. Before install the UPS, please follow below steps to connect the battery leads.
Step 1
Remove the front panel.
This UPS can be either located a flat surface or desk or mounted in a 19" rack chassis.

Rack-mount Installation

Step 1

Tower Installation

Step 1
Step 2
Connect the AC input and
re-connect battery leads.
Step 2
5
Step 3
Replace the front panel.
Step 2
Step 3
