4.3. DIMENSIONS - BOÎTIER
Boîtiers aluminium :
HA
HL
HM
HN
HO
HB
130 mm (5.12")
30mm 30mm
PG9 PG9
M20 x 1,5
25mm 25mm
1/2"NPT 1/2"NPT
30mm 30mm
M16 x 1,5 M16 x 1,5
M20 x 1,5
M20 x 1,5
25mm 25mm
M20 x 1,5 M20 x 1,5
29.1 mm (1.15")
31 mm
(1.22")

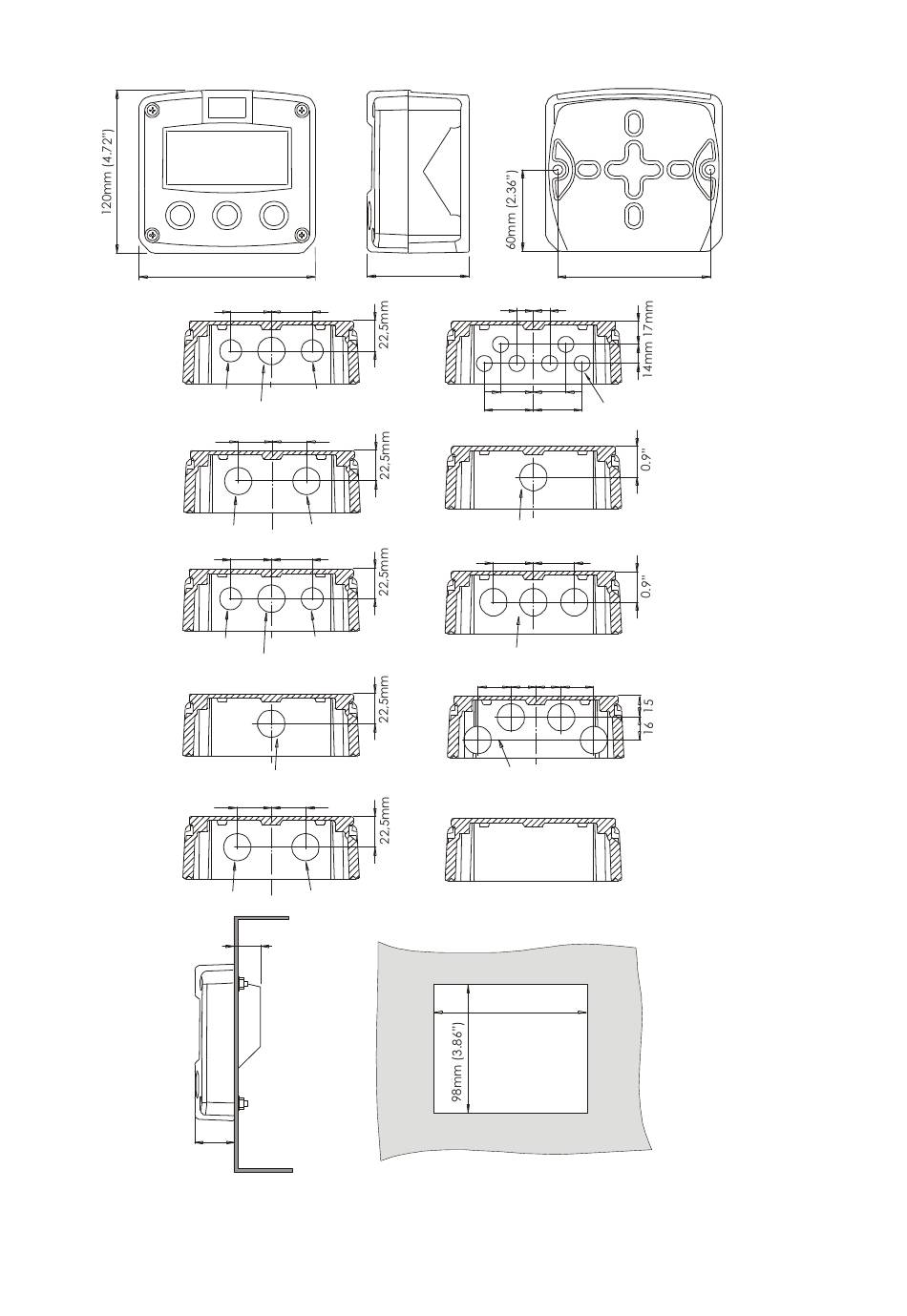

Fig. 5 : Dimensions : boîtiers aluminium.
FW_F116-P_M_v0601_03_FR
75 mm (2.95")
12mm 12mm
24mm 24mm
36mm 36mm
1/2"NPT
0.12" 0.12"
3x 1/2"NPT
23 15 15
4x M20 x 1,5
115 mm (4.53")
112 mm (4.40")
HP
6 x M12
HT
HU
23
HV
mm
HZ
