Loading label roll in rewind mode

In rewind mode the labels are wound up internally after printing for later use.


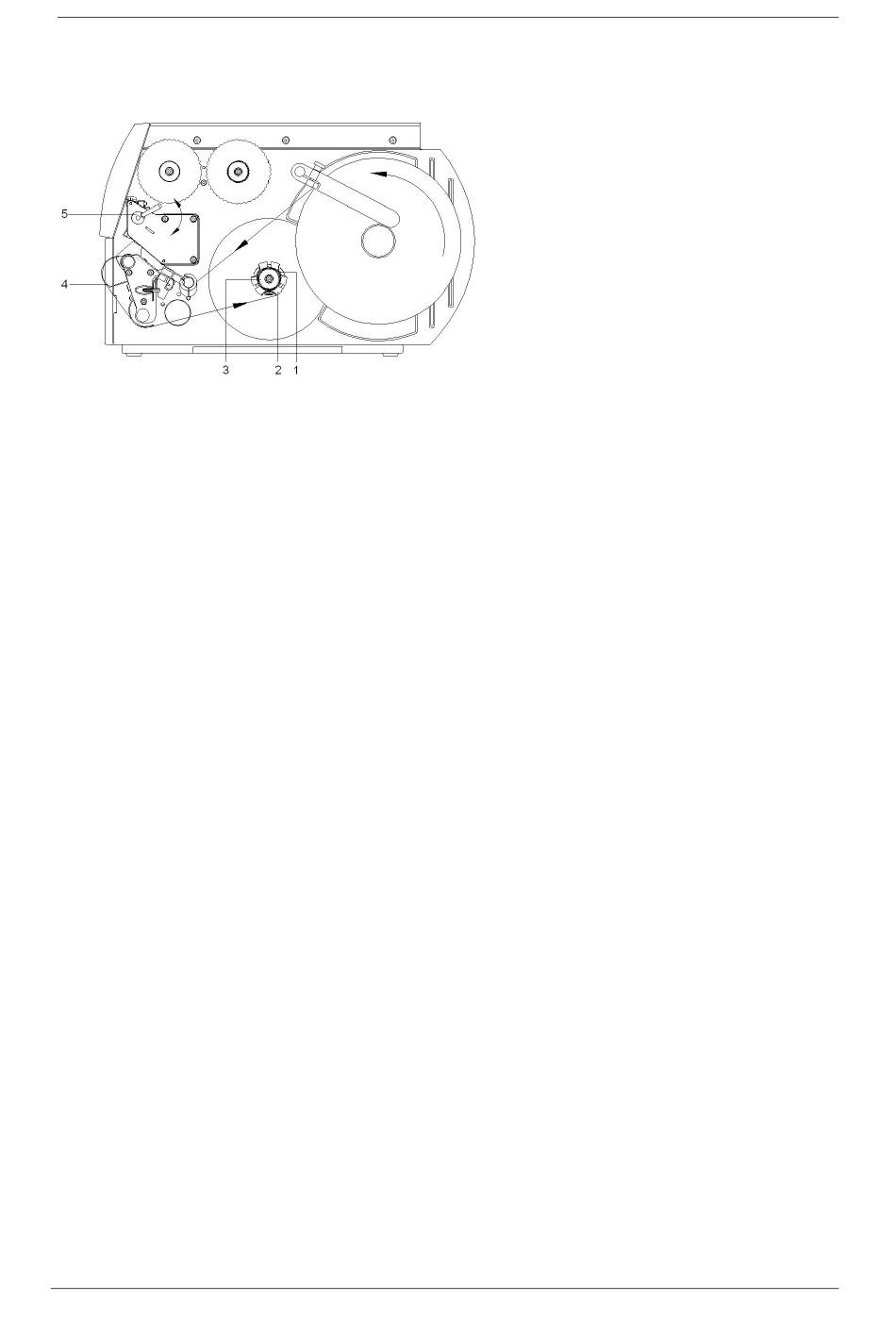

Guide label strip around the deviating shaft (4) to the internal rewinder (2).

Hold rewinder (2) firmly and turn knob (3) clockwise until it stops.

Push label strip under a bracket (1) of the rewinder and turn knob (3) counter clockwise until it stops.

Turn rewinder (2) counter clockwise to tighten the label strip.

Turn lever (5) clockwise to lock the printhead.
