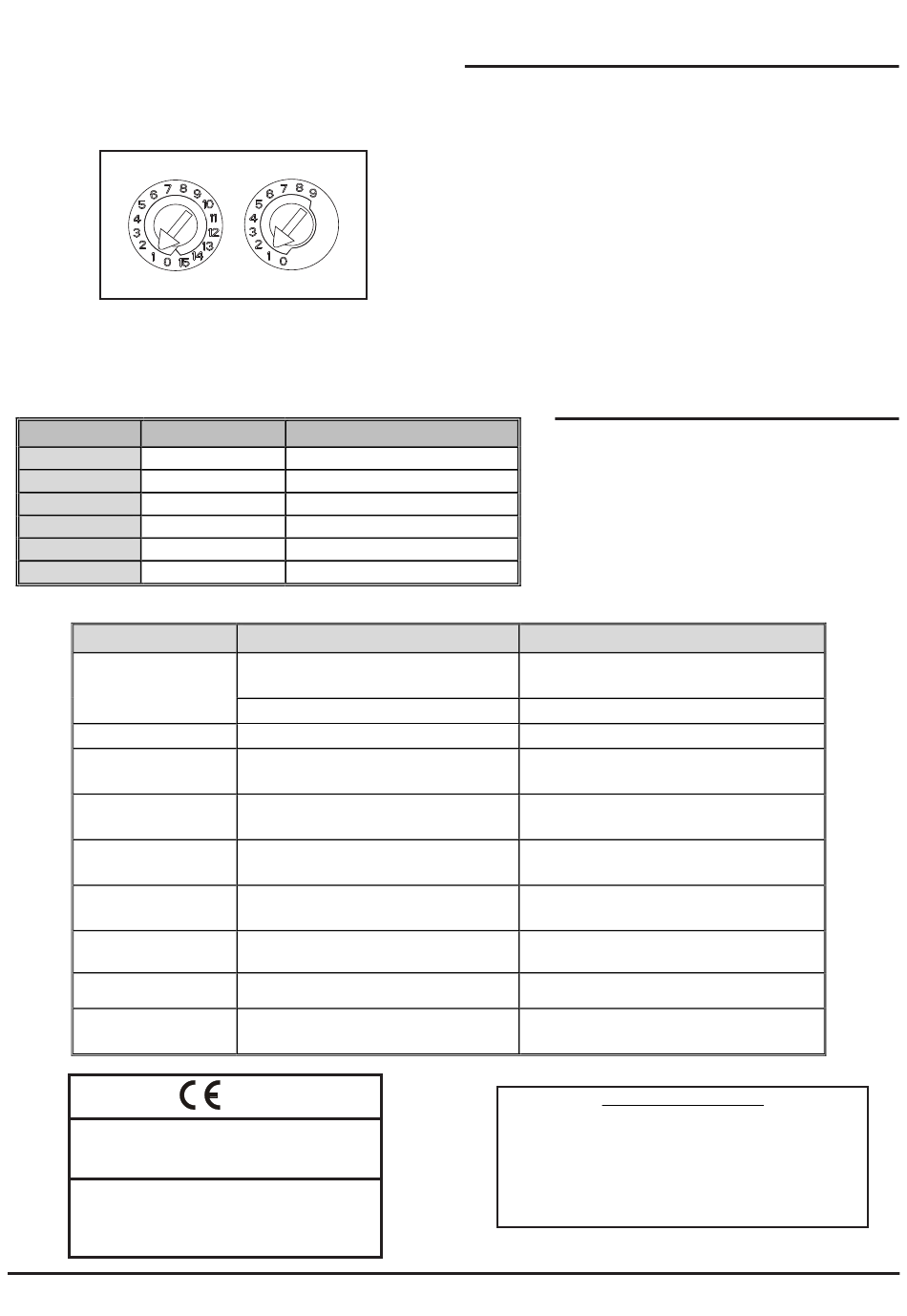

System Sensor M200G-RF Manuel D'installation page 2

Figure 4: Rotary Address Switches
X 10
Loop Status LED (Note: Panel command generally has priority)
Isolator State Panel Command
Normal
Open
Normal
Open
Normal
Open
RF status LED
Gateway Status
Power-on initialisation
(no fault)
Fault
Un-commissioned
Pre-commissioned
Commissioning
Sync
Normal
Network Fault
Recovery mode
Pittway Tecnologica S.r.l.
Via Caboto 19/3, 34147 Trieste, Italy
EN54-25: 2008 / AC: 2010 / AC: 2012
Components Using Radio Links
EN54-17: 2005 / AC: 2007 Short-Circuit Isolators
EN54-18: 2005 / AC: 2007 Input/Output Devices
for use in fire detection and fire alarm systems for buildings
D200-303-00
X 1
LED off Off (Amber blink if device fault)
LED off Amber on
LED on Red on
LED on Red on
LED blink Green blink (Amber if device fault)
LED blink Amber on
LED State
Long Green pulse
3 Green blinks
Blink Amber every 1s.
Red/Blue double-blink every 14s
(or just Blue when communicating).
Blue/Red double-blink every 14s (or just
Blue when communicating).
Blue/Green double-blink every 14s (or
just blue when communicating).
Blue/Amber double-blink every 14s
(or just Blue when communicating).
Blue blink every 14s.
Amber/Blue double-blink every 14s
Blue/Blue double-blink every 14s
0333 14
DOP-IRF001
Pittway Tecnologica S.r.l. Via Caboto 19/3, 34147 TRIESTE, Italy
PROGRAMMING
A commissioning operation is necessary to associate the RF
gateway with its related RF devices. Commissioning the gateway
is performed using the M200WC-RF USB RF interface connected
to a PC running the appropriate software tools (see product code
M200SCT-RF for details). The data file created when the system
was designed is downloaded into the gateway and the gateway
uses this information to configure the RF system. The gateway
searches for all its associated RF devices and programmes them
with their network parameters; it then orchestrates the creation of a
fully functional RF mesh network. (For further information, see the
Radio Programming and Commissioning Manual - ref. D200-
306-00.)
NOTE: Do not run more than one interface at a time to
commission devices in an area.
NOTE: Batteries should not be fitted into RF devices until the
system commissioning time
LED State
Meaning
Gateway is un-commissioned
(factory default)
Gateway is (pre-)commissioned
Gateway has an internal trouble
Gateway is powered and is waiting to be
programmed.
Data has been downloaded into gateway,
waiting to begin RF network commissioning.
Gateway has started commissioning, but
complete RF network not yet created.
Trying to re synchronize the RF network
from Idle status.
RF communications are established;
gateway and network working properly.
Gateway is experiencing an RF network
problem.
RF network has one or more missing links
and gateway is trying to reconfigure them.
In accordance with EN60950 and 1999/5/EC R&TTE Directive
The full DoC can be obtained from System Sensor Europe
LED INDICATORS AND FAULT DESCRIPTION
The Radio Gateway has two LED indicators:
LED1: Loop communications status
LED2 RF communications status
EC Declaration of Conformity
This product complies with the following Directive(s):
2006/95/EC Low Voltage
2004/108/EC Electromagnetic Compatibility
Patents Pending
I56-3892-001
