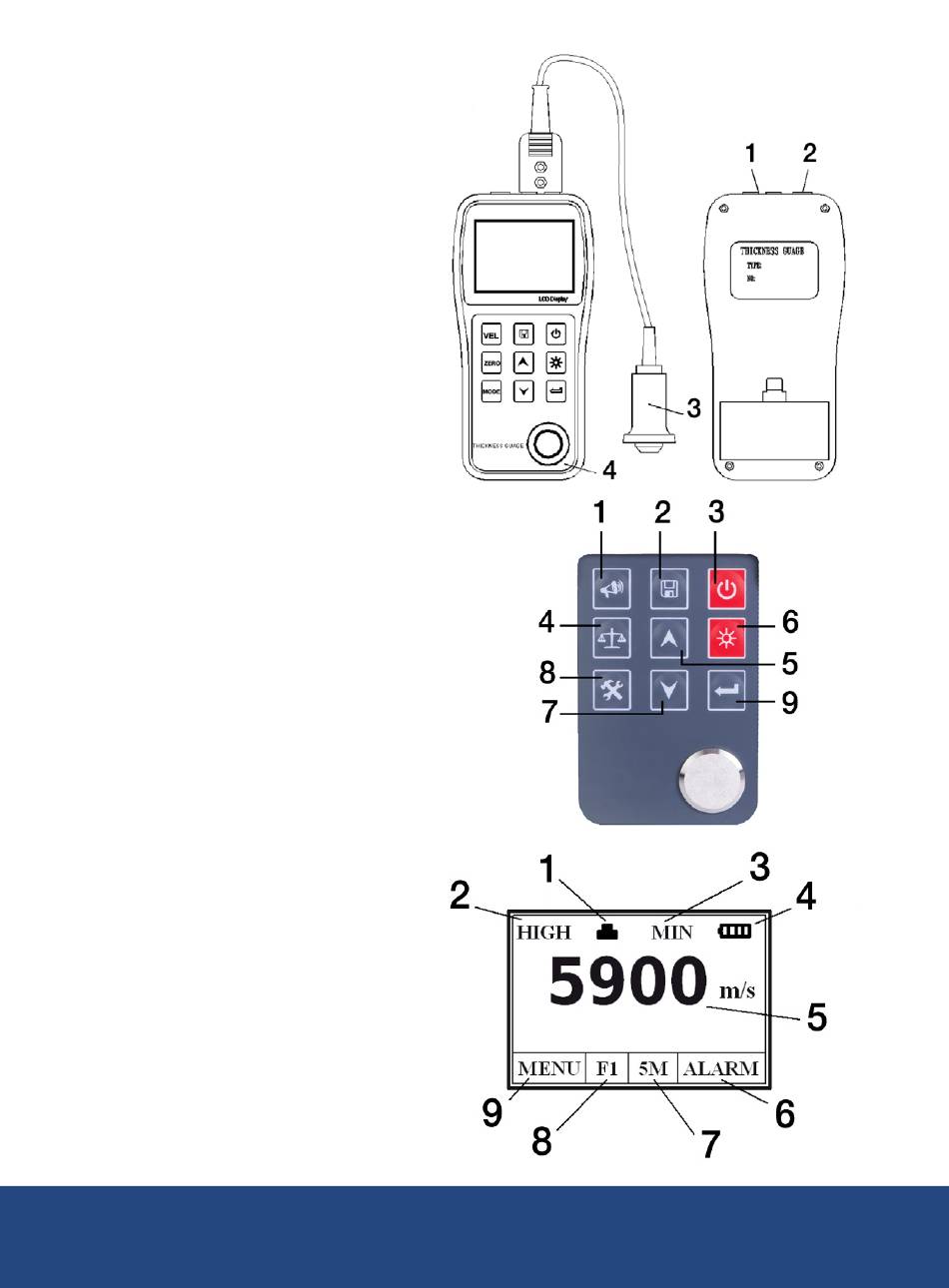

Instrument Description

1. Probe Socket
2. RS-232 Socket
3. Probe
4. Test piece

Keypad Description

1. Velocity Button
2. Save/Browse Data
3. Power On/Off Button
4. Zero Button
5. Up Button
6. Backlight On/Off Button
7. Mode Button
8. Down Button
9. Enter Button

Display Description

1. Coupling Indicator
2. Gain Indicator
3. Minimum Capture Mode
4. Battery Indicator
5. Main Display Area
6. Alarm Thickness Limit
534 Blue
7. Probe Frequency
123 Yellow
8. Save File Name
485 Red
123 Yellow
9. Menu Option
534 Blue
