BEFORE ANY INTERVENTION CUT THE POWER SUPPLY TO THE UNIT
For all additional information in this manual, refer to the manual contained in the drive's packaging.
When disassembling the NXL drive, it will be necessary to identify the terminal numbers before disconnecting the
electrical cables. The terminal numbers of the new drive are identical.
After you do power-up of the drive, the Startup wizard
starts. If you have left, it is possible to find this menu
as follows:
1
S
TANDARD OPERATION MODE WITHOUT SENSOR
1.1
S
ETTING UP WITH THE COMMISSIONING ASSISTANT

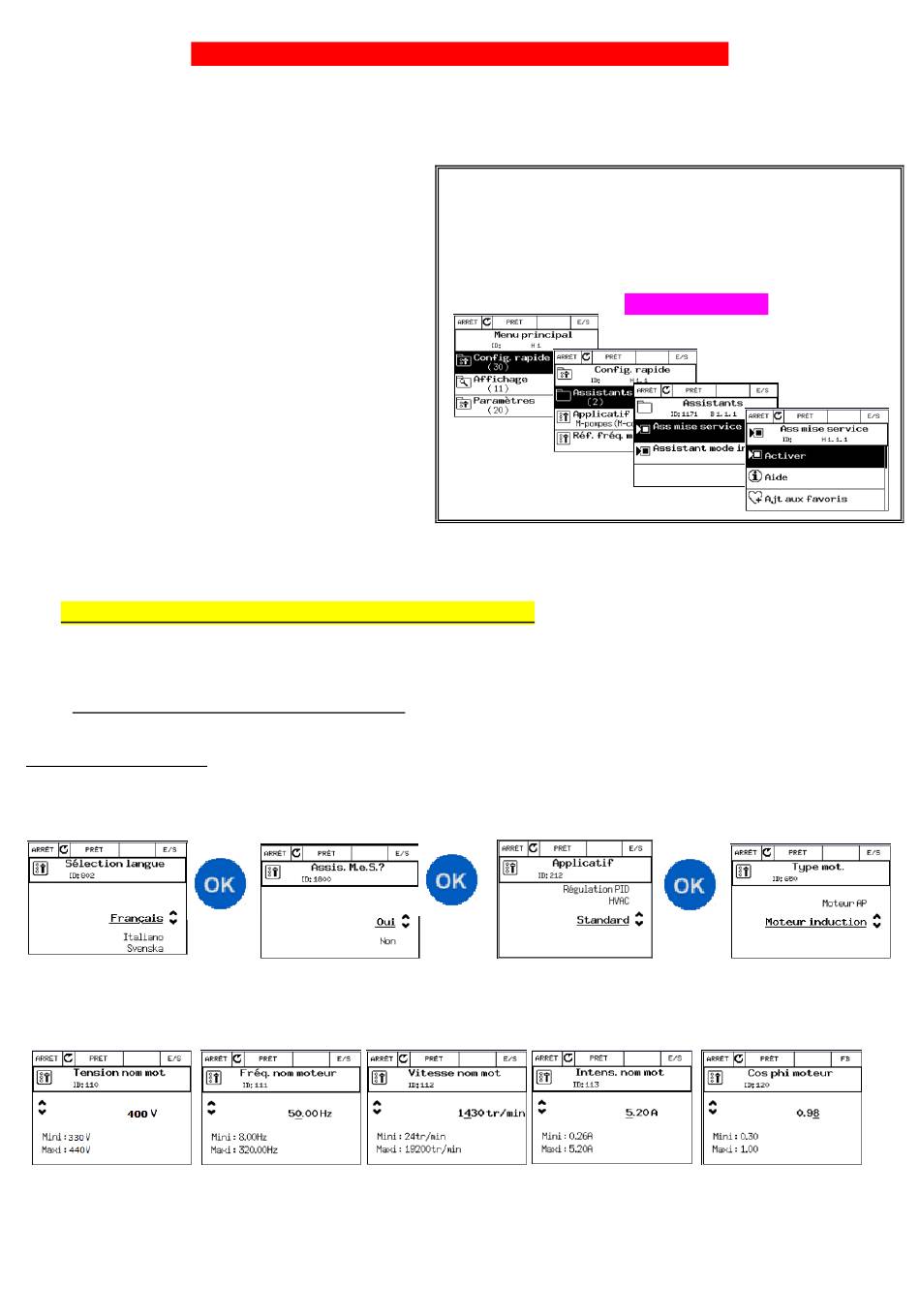

Commissioning assistant
Language selection
Enter the motor data according to the motor nameplate (example)
To find the commissioning wizard:
In the main menu:
- select Quick Setup
- select Assistants
- select Ass commissioning
(D
– AHU)
RYCOOLERS
Select YES
Page 19
- sélectionner Activer
Select STANDARD
Select Induction Motor
(=asynchronous)
