Power Input - Legamaster 65" CTD Manuel

3  Installation

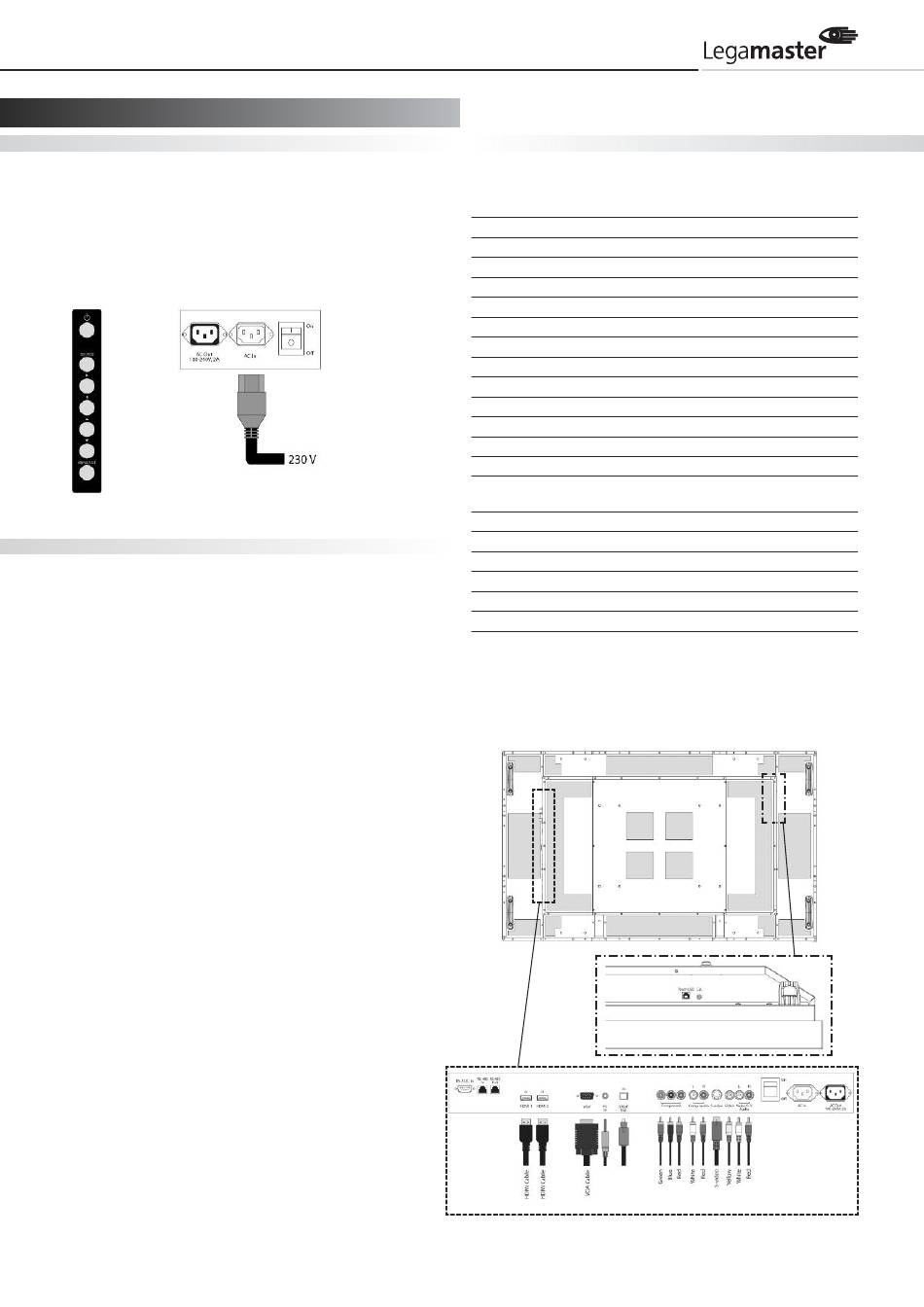

Power Input

Power Cord
The included power cord is used to connect the side controls of
the LCD monitor and the wall outlet.
Connect the power cord into main power of the monitor,
"–" is power on,
"" is power off.
Input: 100-240V~ 5A 50/60Hz
The side
controls
Power Interface
 Main power – switch & AC socket.
Please see the chapter "Power input"
 The side controller of the monitor
 The remote control (RCU)
Please see the chapter "Operating the monitor"
Signal Source Input
Input Interface
65"
1 HDMI 1 input x 1
2 HDMI 2 input x 1
3 *
4 VGA
5 PC audio in
Main power switch
6 S-PDIF out
AC in socket
AC out socket
7 RS232C
8 RS485 In
9 RS485 Out
10 Component
11 Audio In (Component) RCA L/R
12 S-Video
13 Video
14 Audio in
(S-Video/Video)
15 AC in connector
16 AC out connector
17 Power switch
18 Touch USB
19 Touch CAL
20 Mini jack
* DVI-D via HDMI-to-DVI adaptor
65"
7 8 9
Connecter
D-Sub 24 pin
D-Sub 15 pin
Mini jack
D-Sub 9-pin
RJ-45
RJ-45
RCA G/B/R
mini Din 4 pin
RCA
RCA L/R
IEC-C13
ON/OFF
Type B female
18
1 2 4 5 6 10 11 1213
19
15 16
14
17
4
