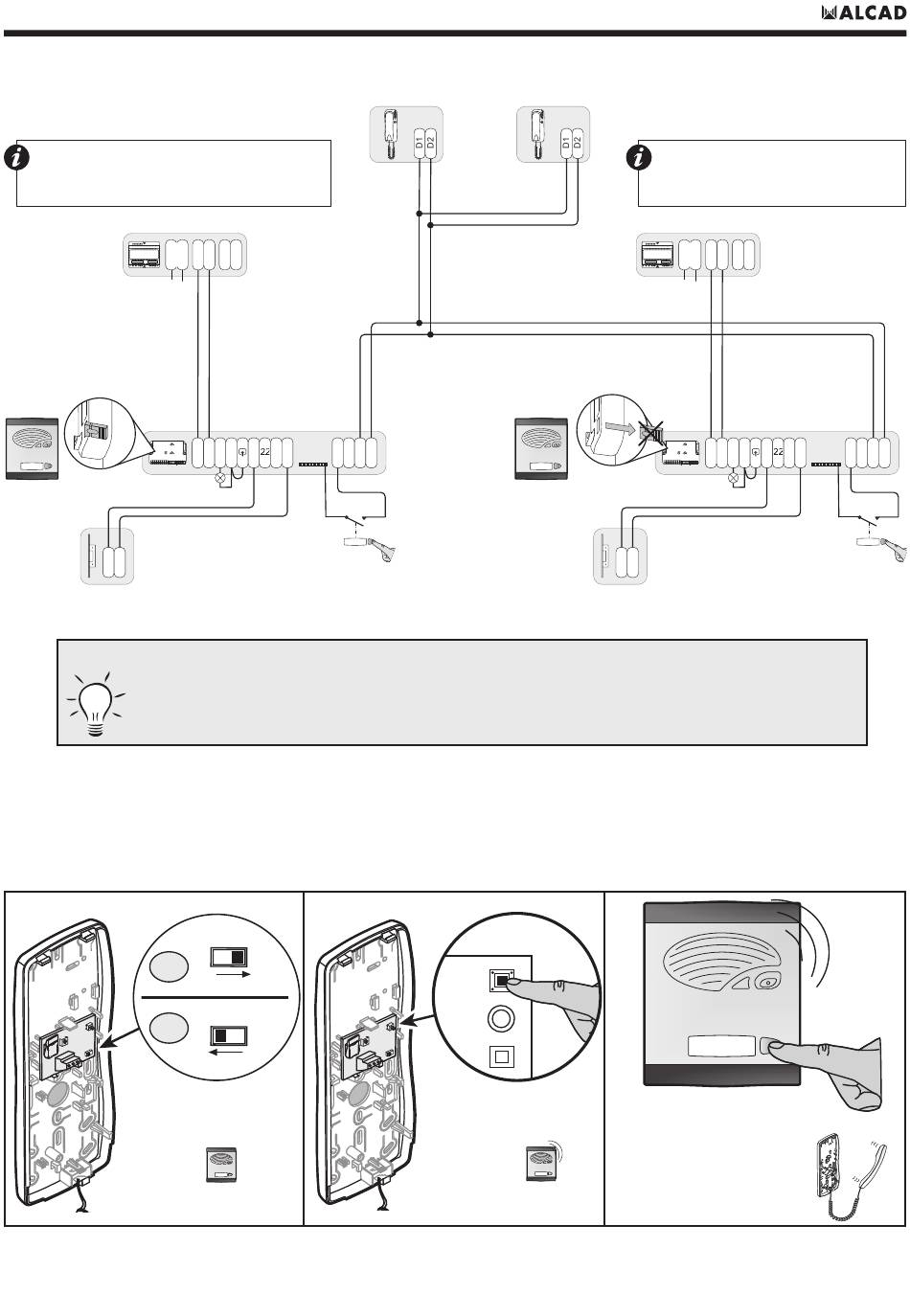

INSTALLATION IN DETACHED HOUSES WITH 2 POINTS OF ENTRY (2 x 1 DWELLING KIT)

An installation must have only
one main entrance panel (panel
with the jumper J1 installed)
230V
~
~
ALC-041
Main entrance
panel
J1
GRF-200
+ –
ABR-015
EXTENSION WITH ENTRANCE PANELS:
It is possible to install up to 10 entrance panels.

TELEPHONE PROGRAMMING INSTRUCTIONS

1. Turn the PROG switch to the OFF position; Turn the switch back to the ON position.
2. Push the lock release button. The audio will be activated between the telephone and the main panel.
3. From the main entrance panel, make the call to the apartment where the telephone to be programmed is installed.
The panel emits a confi rmation tone, the telephone has been programmed.
1
1
2
Note: Once the telephone has been programmed, leave the PROG switch to the ON position.
Note: Maximum time limit of 1 minute between steps 1, 2 and 3. If the time limit is exceeded the process must be
repeated from step 1.
DIGITAL DOOR ENTRY SYSTEMS
+ +
– –
S
+
–
9 10 12 C 11 7 D1 D2 D3
1
8 7 6 5 4 3 2 1
2
PROG
OFF
PROG
ON
TED-001 TED-001
Secondary entrance
Panel
PROG
You will have to re-program
one of the telephones,
see page 14
230V + +
– –
~
~
ALC-041
J1
+
–
9 10 12
GRF-200
+ –
ABR-015
3
S
C 11 7 D1 D2 D3
1
8 7 6 5 4 3 2 1
ENG-11
