6 Starting

Before executing the starting, installer:
• have carefully and completely read the manual use present;
• have installed the camera and lens correctly;
• have connected the control unity correctly to the P&T;
• have checked the working of the system with positive result;
• have arranged a suitable power line.
Please take note following security prescriptions:
• Because the system is heavy, an adequate system is necessary of transport and handling;
• Make sure to have disconnected the power before executing any operation;
• Install a protection device before the line of the device in the electric plant of the building.
• Be sure that there are not possibility of striking people for an any sudden movement of the P&T;
• Be sure that there are all the security prescriptions concern the staff's safety;
• The electric installation of the plant must be corresponding to the current local rules.
Please take note following explosion prevention prescriptions;
• Choose a solid and stable support surface;
• Choose an suitable support bracket, if used;
• Be sure that there is not some anything in the radius of action of the P&T that it can be knocked;
• Use suitable tools to the zone one works in;
• Do not open the P&T or the command unity if there is the possibility potentially of presence of explosive
atmosphere;
• Use safe and lasting screws or other fixing systems.
The unit must be connected to a suitable connection of electric earth!
After the starting stored this instruction manual for future consultations.

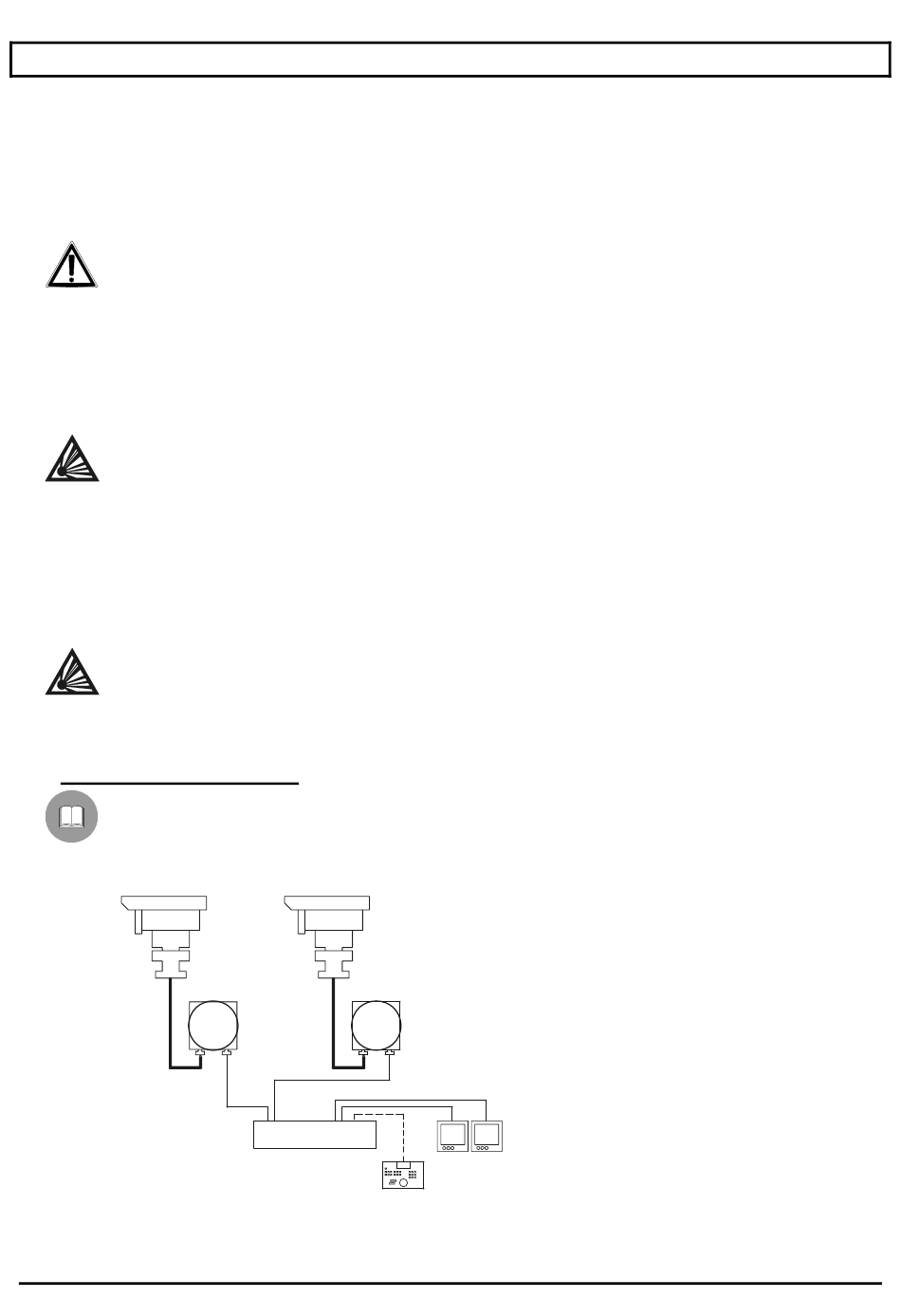

6.1 Installation examples

A single operator with several monitors for the control of a set of positioning devices in mixed configuration:
EXPT EXPT
EXDTRX324 EXDTRX324
SM164A
DCJ
Page 12
DEVICES:
Control keyboard:
• 1 control keyboard DCJ
Video management:
• 2 monitors
• 2 cameras
• 1 SM164A video matrix
Telemetry management:
• 2 EXDTRX324 receivers with
telemetry over the coax
• 2 EXPT P&T motors
MNVCEXPT_0702
