ELECTRICAL CONNECTIONS
(continued)

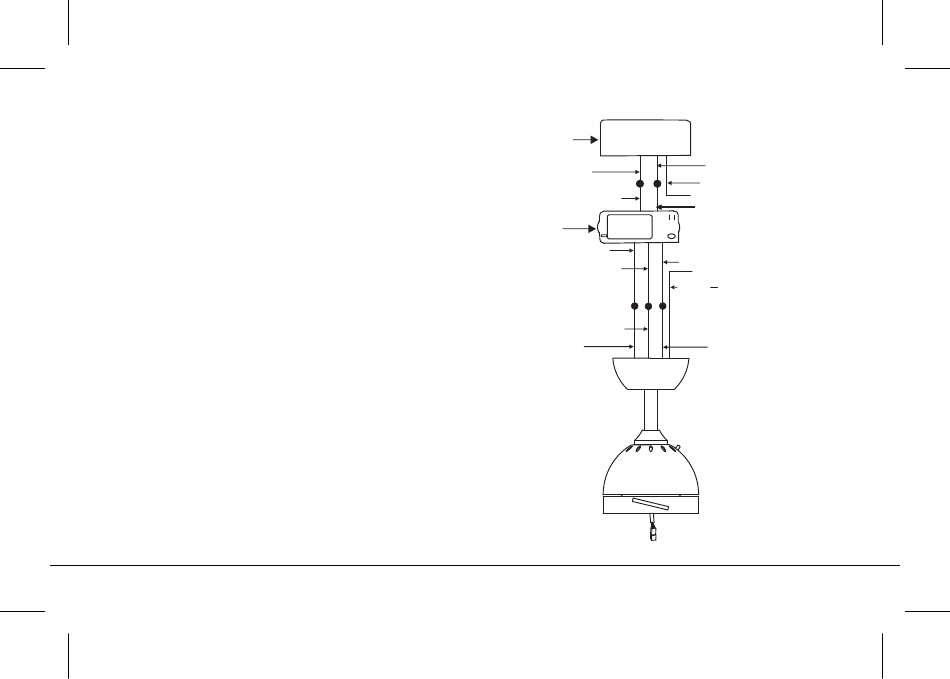

Step 2. Motor to Receiver Electrical Connections: (Fig. 14) Connect
the black wire from the fan to the black wire marked "TO MOTOR L"
on the receiver. Connect the white wire from the fan to the white wire
marked "TO MOTOR N" on the receiver. Connect the blue wire from
the fan to the blue wire marked "FOR LIGHT" on the receiver. Secure
all the wire connections with the plastic wire nuts provided.
Step 3. (Fig. 14) Receiver to House Supply Wires Electrical
Connections: Connect the black (hot) wire from the ceiling to the black
wire marked "AC in L" from the receiver. Connect the white(neutral)
wire from the ceiling to the white wire marked "AC in N" from the
Receiver. Secure the wire connections with the plastic wire nuts
provided.
Step 4. (Fig. 14) If your outlet box has a ground wire (green or bare
copper) connect it to the fan ground wires; otherwise connect the
hanging bracket ground wire to the mounting bracket. Secure the wire
connection with a plastic nut provided. After connecting the wires,
spread them apart so that the green and white wires are on one side
of the outlet box and black and blue wires are on the other side.
Carefully tuck the wire connections up into the outlet box.
Note: Fan must be installed at a maximum distance of 30 feet from the
CoolTouch™Remote Transmitter for optimal signal transmission
between the transmitter and the fan's receiving unit.
