1.
Remove the battery earth cable.
Remove the cover at the left- and right-hand side underneath the rearlights.
2.
Drill a 13 mm large hole at the right-hand side in the spare wheel housing.
Carefully remove all metal particles and treat the egdes with anti-rust paint.
Put the rubber grommet in the hole.
3.
Route the wire harness in the boot.
Lead the 8-pole end through the grommet to the socket.
Pull the rubber coverplate over the wiring harness.

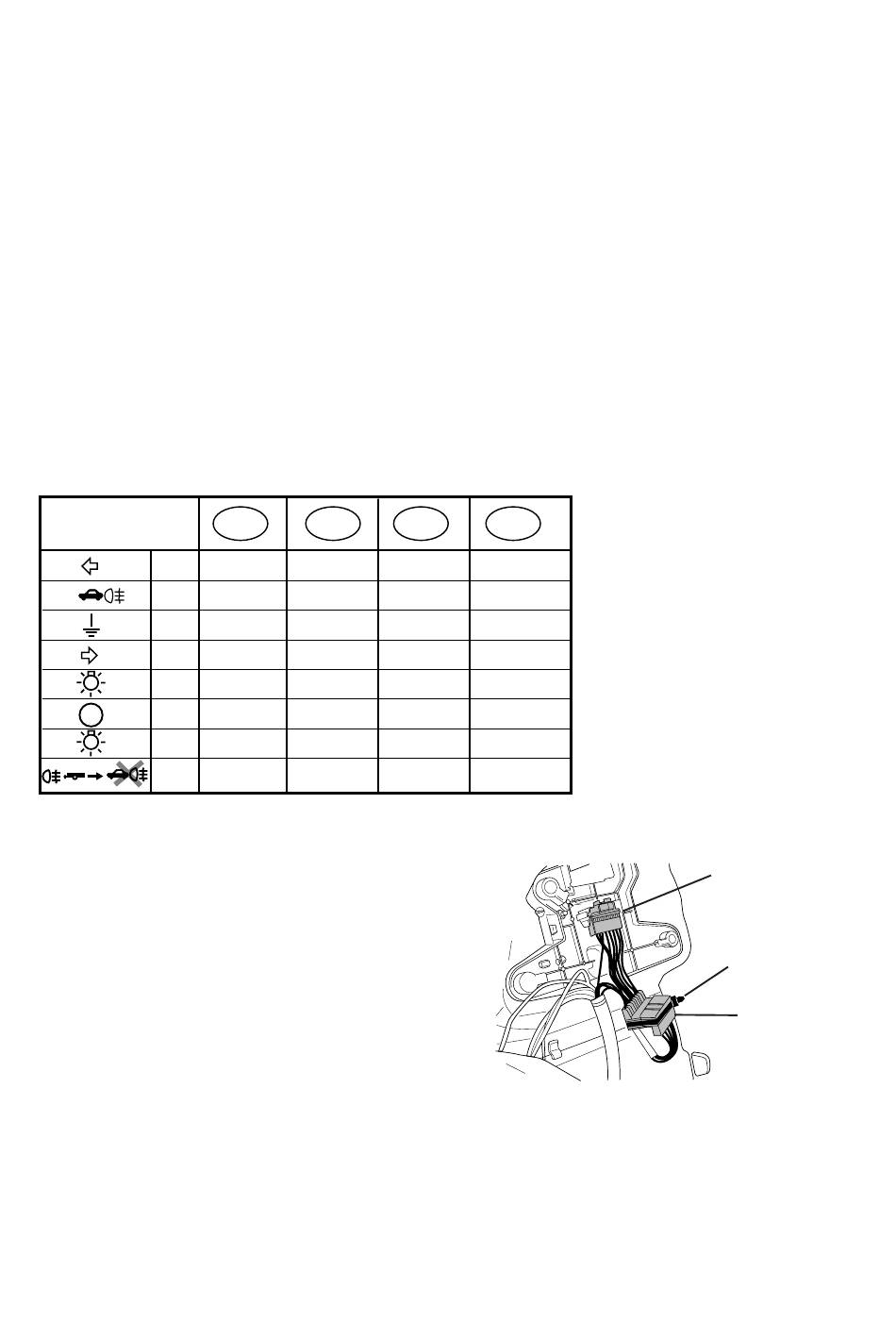

Remove the contactholder from the socket and fit the wires as indicated:
DIN/ISO
1724
1/L
2
3/31
1-8
4/R
5/58-R
6/54
STOP
7/58-L
8/58-b
Mount the socket to the towbar.
4.
At both rearlight units connectors are located.
Disconnect these connectors.
Connect the connectors of the wiring harness with the green, grey, brown
and blue wire at the right-hand side.
Connect the connectors of the wiring harness with the grey, black, red and
yellow wire at the left-hand side.
Tie the connectors with the supplied cable ties, in order to keep the con-
nectors together (see picture).
Fit the white wire at the right-hand side to chassis earth.
5.
Reconnect the battery and check all electric functions, with trailer/caravan connected.
Reinstall disassembled parts.
© ECS 2000
FITTING INSTRUCTIONS ELECTRIC WIRINGKIT TOWBAR WITH 12-N SOCKET UP TO
DIN/ISO NORM 1724
RENAULT MEGANE 3-D COUPE 1999-
Partno.: RN-010-BB
D
F
gelb
jaune
blau
bleu
weiß
blanc
grün
vert
braun
marron
rot
rouge
schwarz
noir
grau
gris
RN-010-BB-E
220300L
GB
NL
yellow
geel
blue
blauw
white
wit
green
groen
brown
bruin
red
rood
black
zwart
grey
grijs
Connector
wiring harness
Cable tie
Connector
vehicle
REVISIE 0
