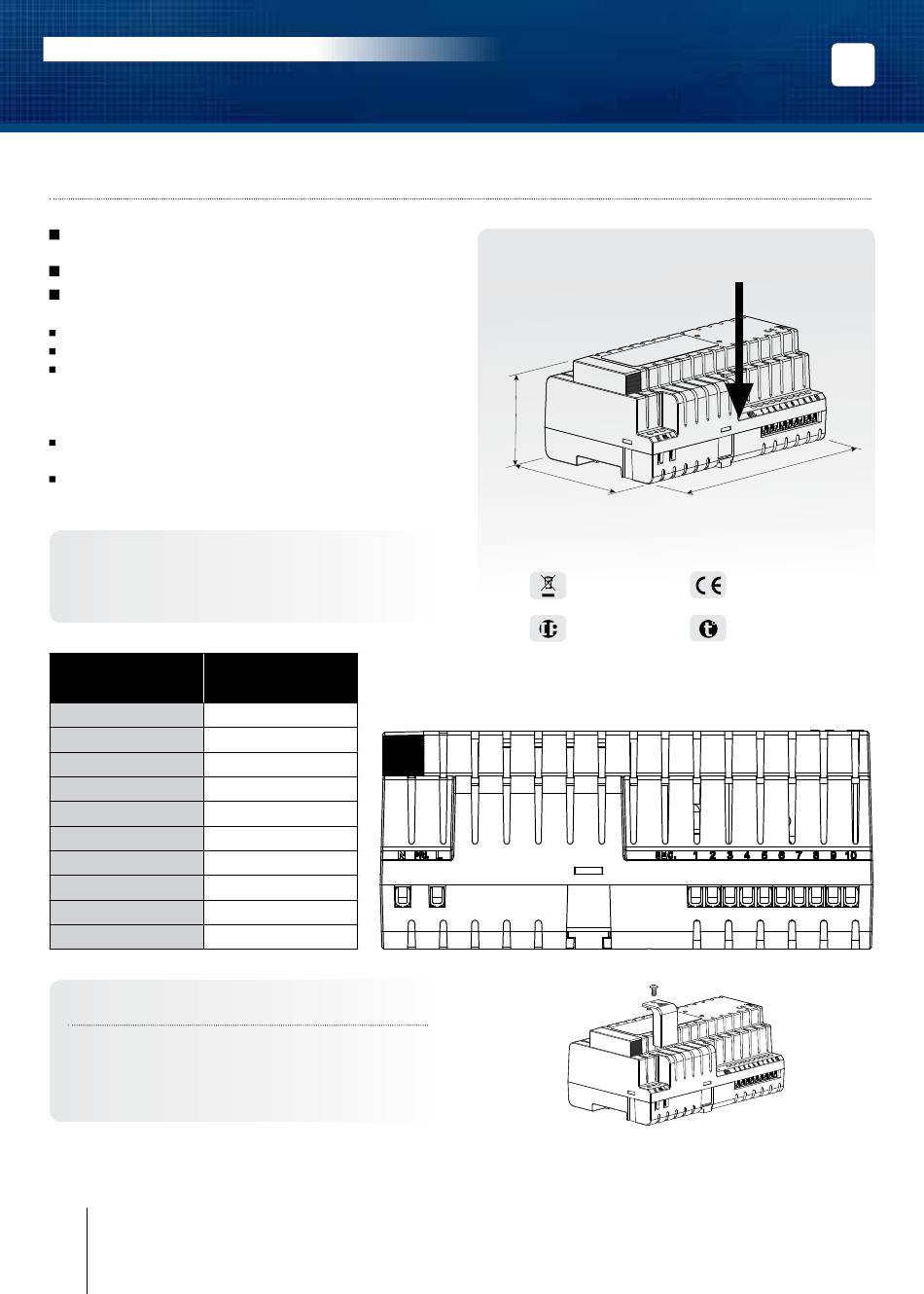

INSTALLATION MANUAL
ARDU
8/12/24V PSU, Multiple AC and DC outputs
PRODUCT PRESENTATION
Primary and secondary inputs
protected by automatic fuses.
Rectified, filtered 8/12/24V dc outputs.
8/12/24V ac outputs.
Input voltage: 230V ± 10%, 50/60 Hz.
Power consumption: 0.17A.
Multiple outputs :
- 8V/12V/24V ac outputs,
- 12/24V dc outputs, rectified, filtered
and not regulated.
1A maximum current load on one output
or 1A splitted on all outputs.
Wall fixing (screw and plastic anchor included)*
Inputs and outputs protected by resettable fuses.
(After an overload or short-circuit, disconnect
the network for 1 minute to reset the fuse.)
TERMINAL
BLOCK OUTPUTS
3
8V ac
4
12V ac
5
24V ac
6
0V ac
7
+12V dc
8
0V
9
+24V dc
10
0V
N
230V ac
L
230V ac
COMPLIANT WITH EUROPEAN STANDARDS
EN 55022
EN 61000-4-2
EN 61000-3-2
EN 61000-4-3
EN 61000-3-3
EN 61000-4-4
This product must be installed in accordance
with the local safety standards.
cdvi.com
2
cdvigroup.com
VOLTAGE
(12V)
N
(24V)
EN 61000-4-5
EN 61000-4-6
EN 61000-4-11
* Wall fixing
on each side
60
92
WEEE & RoHS
IP20
L
Mains terminal block cover in the event of mounting
outside a standard electrical equipment box.
EN
142
CE certification
-25°C to +55°C
3 4 5 6
7
8 9 10
