AXIS P7214/P7210 Installation Guide

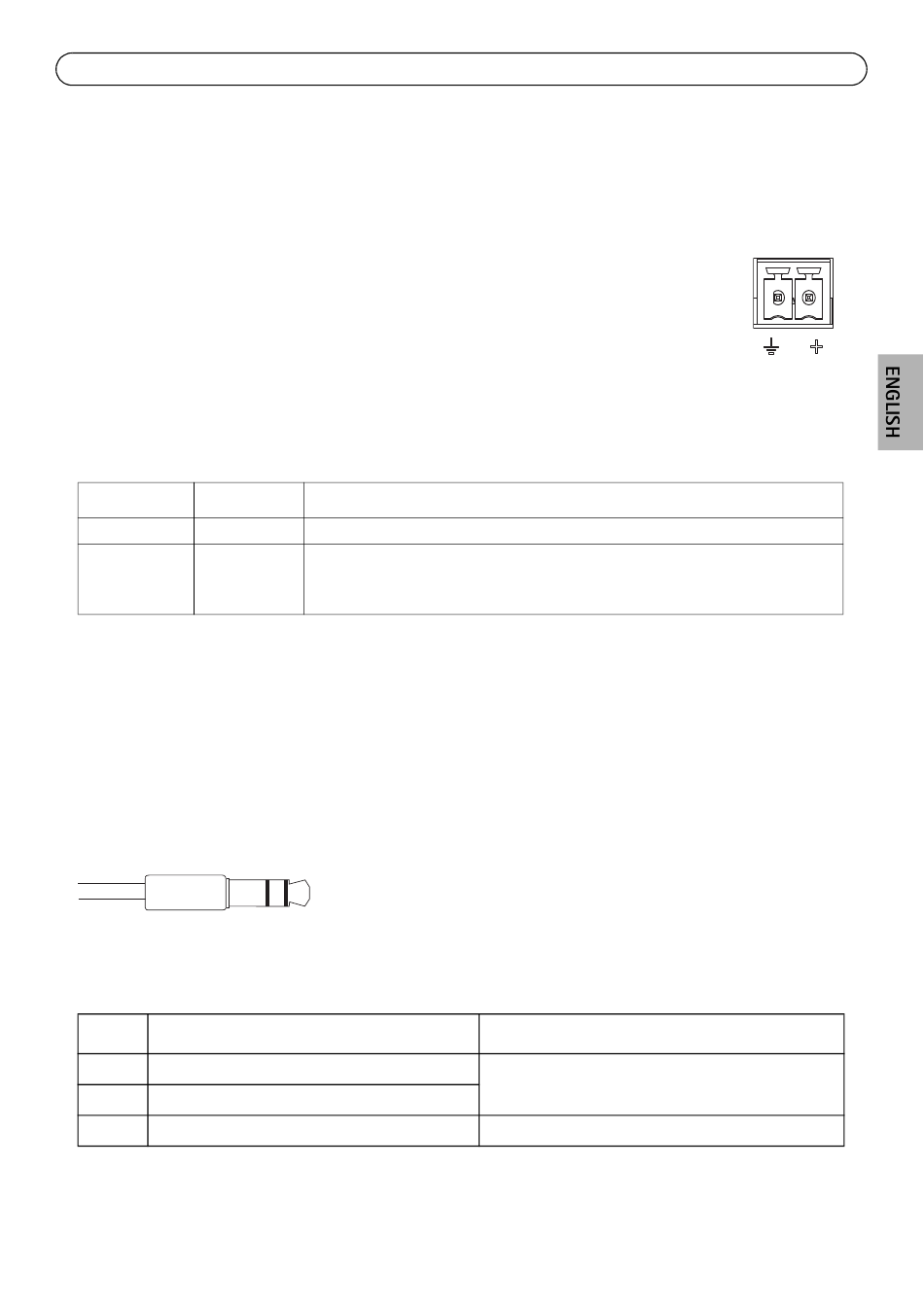

Unit connectors
Network connector - RJ-45 Ethernet connector. Supports Power over Ethernet (PoE) Class 3 - max
12.95W. Using shielded cables is recommended.
Power input connector - 2-pin terminal block used for power input from the
supplied power adapter or an external power supply.
The external power supply alternatives are:
1. The Axis delivered PS-K P/N 34987 (AXIS P7214).
2. The Axis delivered PS-P P/N 42118 (AXIS P7210).
3. An external 8-20 V DC limited power source with a maximum output current of 5A.
Function Pin number
GND 1
DC Power 2
Audio in/out - Two 3.5 mm jacks for audio input, and one 3.5 mm jack for audio output. Stereo
plugs must be used.
• Audio Input 1, 2: Microphone or line level inputs (mono). A selectable 2.0V, 2.5V or 3.0V
microphone bias is available.
• Audio Output 1: Line level audio output (mono), that can be connected to a public
address (PA) system or an active speaker with a built-in amplifier.
3
Audio Input 1, Audio Input 2
1 Tip Microphone/Line in
2 Ring
3 Sleeve GND
Description
Ground
Power input 8-20V DC
max 8W (AXIS P7214)
max 32W (AXIS P7210)
2 1
Audio Output 1
Line out (mono)
GND
