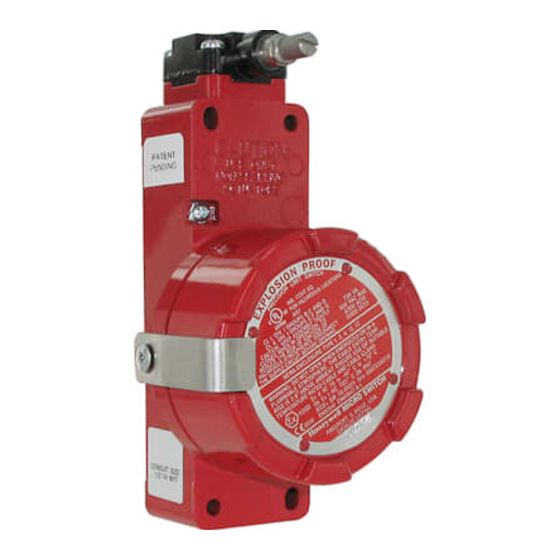

Installation Instructions for the MICRO SWITCH GSX Global Explosion-Proof Safety Switch
Installationsanweisungen für den explosionsgeschützten allgemeinen Sicherheitsschalter MICRO SWITCH GSX
Istruzioni per l'installazione degli interruttori di sicurezza globali antideflagranti MICRO SWITCH GSX
Instructions d'installation de l'interrupteur de sécurité antidéflagrant standard GSX MICRO SWITCH
Instruções de instalação para a chave de segurança global MICRO SWITCH GSX à prova de explosão
의 설치 지침서 MICRO SWITCH GSX 방폭형 안전 스위치
Instrucciones de instalación del interruptor de seguridad global a prueba de explosiones MICRO SWITCH GSX
全球防爆安全开关 MICRO SWITCH GSX 系列安装指
0518
m
WARNING
IMPROPER INSTALLATION
• Consult with local safety agencies and their requirements
when designing a machine-control link, interface, and all
control elements that affect safety.
• Strictly adhere to all installation instructions.
Failure to comply with these instructions could result in
death or serious injury.
m
WARNING
OPENING PRODUCTS HAZARD
DO NOT USE these products when energized or in a
flammable gas atmosphere.
Failure to comply with these instructions could result in
death or serious injury.
m
WARNING
IMPROPER CONDUIT THREAD USE
DO NOT USE any other conduit thread than the one
identified on the product. Verify that the mating threaded
fitting is identical with the conduit thread shown on the
product nameplate.
Failure to comply with these instructions could result in
death or serious injury.
m
WARNING
RISK TO LIFE OR PROPERTY
Never use this product for an application involving serious
risk to life or property without ensuring that the system as a
whole has been designed to address the risks, and that this
product is properly rated and installed for the intended use
within the overall system.
Failure to comply with these instructions could result in
death or serious injury.
Refer to page 21 for mounting dimensions.
Sensing and Internet of Things
II2GD
GENERAL INFORMATION
Honeywell explosion-proof switches are designed specifically
for use in most hazardous location applications. The GSX
enclosure is sealed for protection against corrosion, water, dust
and oil as defined in NEMA 1, 3, 4, 12, and 13 and IP67 (self
certified by Honeywell). These enclosures also meet the ATEX
and IECEx designations: Ex d IIC T6 Gb, Ex t IIIC IP6X T85 °C
Db, Tamb -40 °C to +70 °C.
GSX Series products also meet the Brazilian hazardous
locations designation:
Ex d IIC T6 Gb
Ex tb IIIC T85 °C Db
IP6X
-40 °C < Tamb < +70 °C
and comply with INMETRO requirements.
Compliance with Essential Health and Safety Requirements
has been assured by compliance with
ABNT NBR IEC 60079-0:2008
ABNT NBR IEC 60079-1:2009
ABNT NBR IEC 60079-31:2011
ABNT NBR IEC 60529:2009
Please refer to certificate number TÜV 14.0555 for conditions
of safe use.
Compliance with Essential Health and Safety Requirements
has been assured by compliance with EN 60079-0:2009, EN
60079-1:2007, EN 60079-31:2009, IEC 60079-0:2007, IEC
60079-1:2007, and IEC 60079-31:2008.
The maximum contruction gap (ic) is less than that required
by Table 2 of EN/IEC 60079-1:2007, clause 5.2.2 as detailed
below.
Flame path
Max. gap
Push rod & bearing 0,076 mm
GSX with conduit type 1/2-14NPT also meets the North
American Hazardous Locations Designation: NEMA 7 - Class
I, Groups B, C and D; NEMA 9 - Class II, Groups E, F and G and
comply with UL Standards UL 894 and UL 1203.
The GSX is often ideal for outdoor use or in adverse
environments where a combination of explosion proof plus
Issue 10
50032072
Comment
Cylindrical spigot joint
