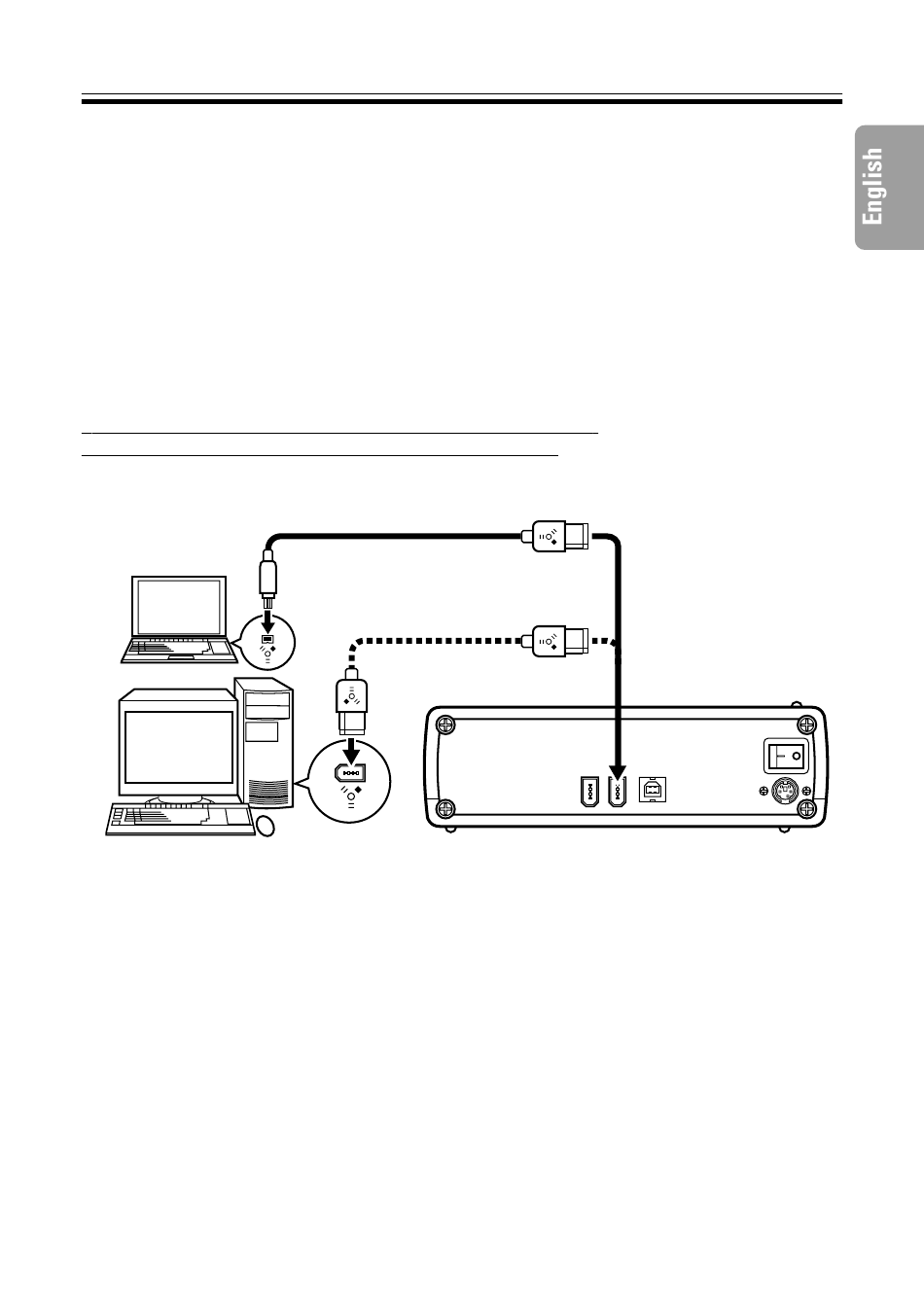

IEEE 1394 cable connection
This is a hot plug unit.
1. Turn on the unit.
2. Turn on the computer and start up Windows.
3. Connect the IEEE 1394 connector on the rear of the unit to the computer using
the supplied IEEE 1394 cable.
÷ Purchase an IEEE 1394 board for computers without such a port.
÷ Use the supplied 4P-6P cable for computers with a 4-pin IEEE 1394 port and the 6P-
6P cable for computers with a 6-pin IEEE 1394 port.
÷ The unit is provided with two IEEE 1394 ports to enable daisy chaining. Connect to
one of the two ports.
Turn on the unit before connecting it to the computer.
Be sure not to disconnect it during data transfers.
Computer
Note: Do not connect the unit using both the IEEE 1394 cable and the USB cable.
IEEE 1394 cable
(supplied 4P – 6P)
4-pin
connector
IEEE 1394 cable
(supplied 6P – 6P)
6-pin
connector
