PLAN YOUR INSTALLATION
Read through the entire manual before beginning
your installation. Follow all steps exactly. Reading
this manual will also help you get all the benefits
from your system.
Your Reverse Osmosis Drinking Water System
can be installed under a sink or in a remote
location. Typical remote sites are a laundry room
or utility room. Review the location options below
and determine where you are going to install your
system.
NOTE: For best system performance, the feed
water to the system should be softened or have
hardness less than 1.7 mol/m3 (17°f), with no iron.
UNDER THE SINK LOCATION
The Reverse Osmosis Filter Assembly and storage
tank may be installed in a kitchen or bathroom sink
cabinet.
See Fig. 2.
A suitable drain point is needed for drain water
from the Reverse Osmosis system.
REMOTE INTERIOR LOCATION
The Reverse Osmosis Filter Assembly and
storage tank may also be installed in a remote
interior location away from the Reverse Osmosis
Faucet. You will need a nearby water source and
drain point.
See Fig. 3.

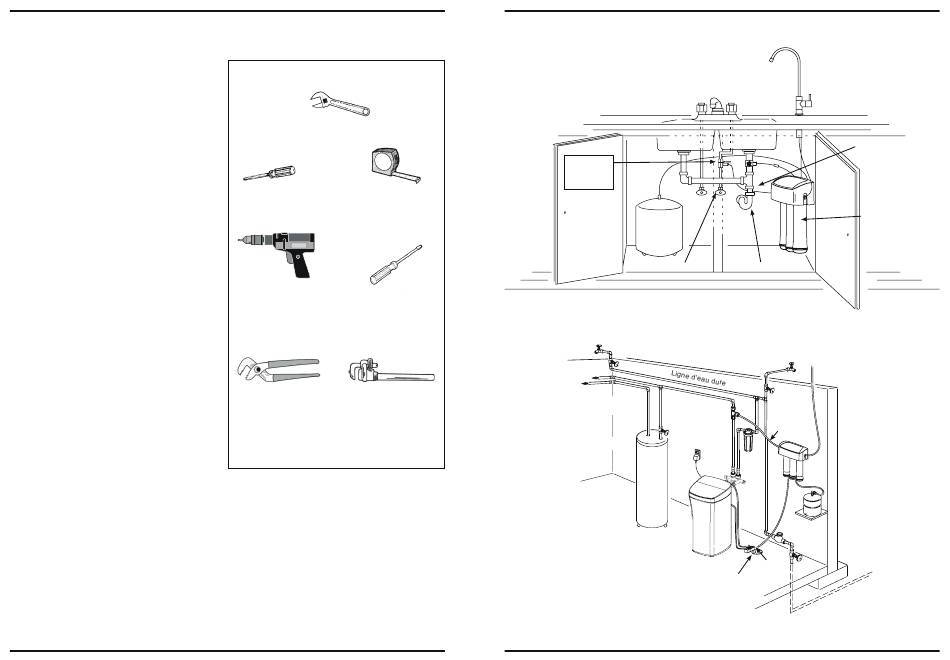

CHECK SPACE REQUIREMENTS
Check size and position of items for proper
installation into location chosen.
TOOLS NEEDED
Review the tools needed list. See Fig. 1.
Gather needed tools before proceeding with
the installation. Read and follow the instructions
provided with any tools listed here.
OUTILS REQUIS
Adjustable wrench
Phillips Screwdriver Tape Measure
Flathead
Drill & Drill bits, if
Screwdriver
required.
Large Adjustable Jaw Pliers or Pipe Wrench
52
All install parts included in package.
Water
Supply
Fitting
Soft, Cold Water
Soft, Hot
Water
FIG. 1
Additional Parts
required.
Plan Your Installation
HOT COLD
Storage
Tank
Shut-off Valve Sink Drain P-Trap
Typical Under Sink Installation
Outside Faucet
(Hard Water)
Outside Faucet
(Hard Water)
Soft water
Vanne d'arrêt
to ReverseOsmosis
System
Reverse
Osmosis
Drain
Water
Heater
Water
Air Gap
Softener
(see p. 11)
Floor
Drain
Typical Remote Installation
53
RO
Faucet
Drain Clamp
for Reverse
Osmosis Waste
Water
Reverse
Osmosis
Assembly
FIG. 2
To Faucet
everse Osmosis
System
Storage
Tank
Main
Shutoff
Valve
FIG. 3
