Processor Panels:
Overview

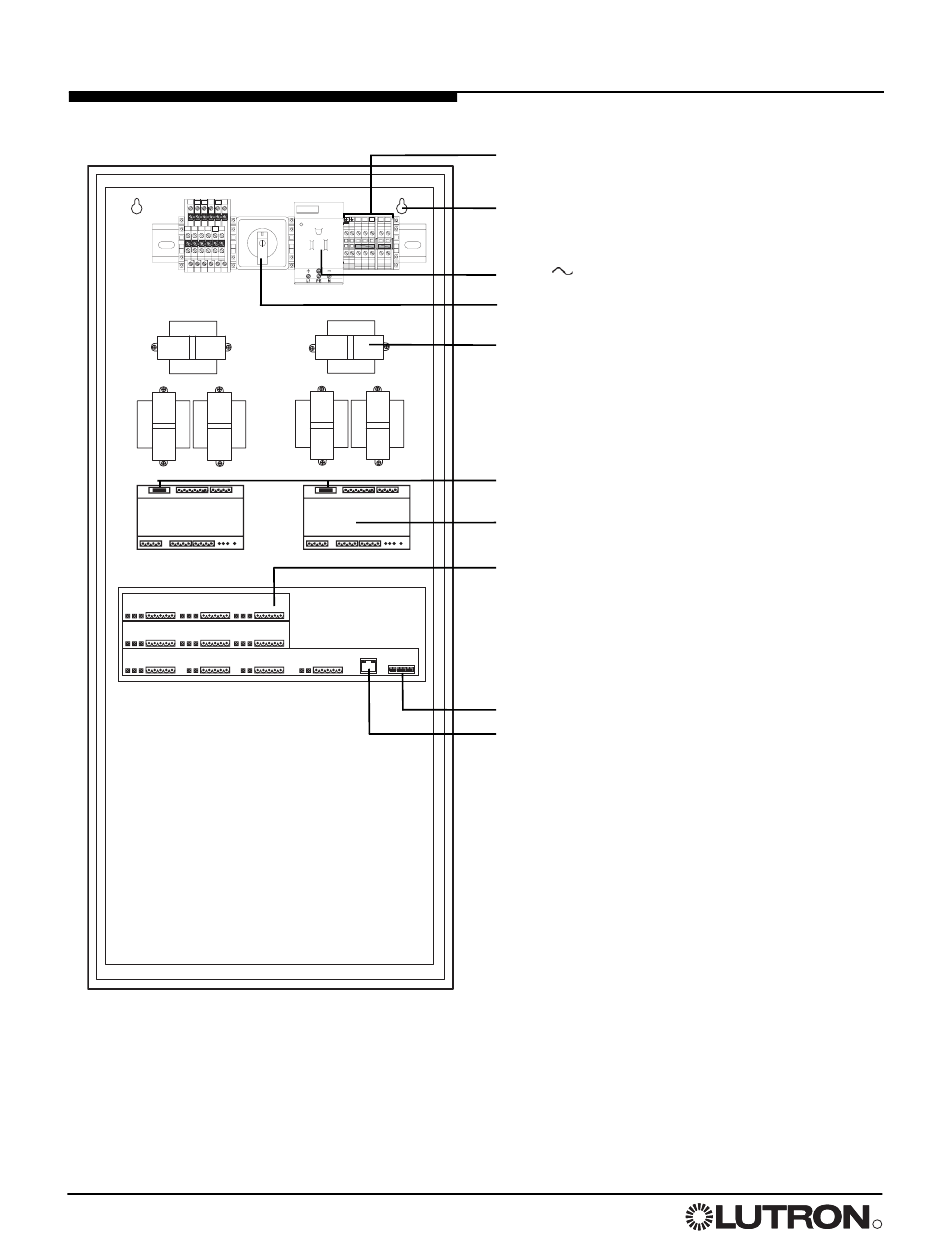

Processor Panel Assembly
T1 T1 T2 T2 T3 T3 T4 T4 T5 T5 T6 T6
H H H H H H H H H H H H
0 0
T1 T1 T2 T2 T3 T3 T4 T4 T5 T5 T6 T6
N N N N N N N N N N N N
GRAFIK 7000P processor with six links shown
4 Installation of GRAFIK 5000/6000/7000 System
N N N N N N H H H H
I I
Line voltage input (page 8)
Subplate mounting screw holes (4 total) (page 6)
Receptacle - for Lutron use only
(120 V version shown)
Processor power switch (does not switch receptacle)
PELV (Class 2: USA) transformers (6 maximum)
Normal/Emergency panel selector switch
(page 24)
Power supply board (2 maximum) (page 15)
Main board assembly* (page 5)
Processor panel address switch* (page 9)
Ethernet port* (page 10)
*Note: Label is shown on front surface of unit.
Connectors and address switch are on bottom
surface.
