6.5
The Switch Housing Assembly Connector and the Motor
Hub Connector are Keyed and Color-Coded and must
be mated correctly (same color-to-color) before they can
be engaged .
Engage the Connector of the Switch Housing Assembly
with the Motor Hub Connector (Figure 23) .
Make sure the Connector Latch closes properly .
6.6
Tuck all the Wires and Connectors into the Switch
Housing Adapter .
Align the Three Screw Holes of the Switch Housing
Assembly .
Secure the Switch Housing Assembly to the Switch
Housing Adapter using the Three #6-32 x 3/8" Flat
Head Screws (supplied in parts bag) (Figure 24) .
Please call Customer Service at 1-800-777-4440
if you have any questions about installation and
operation of this Ceiling Fan .
6. Final Assembly
(Continued)
SWITCH
HOUSING
ADAPTER
MOTOR HUB
CONNECTOR
SWITCH HOUSING
COVER CONNECTOR
SWITCH HOUSING
ASSEMBLY

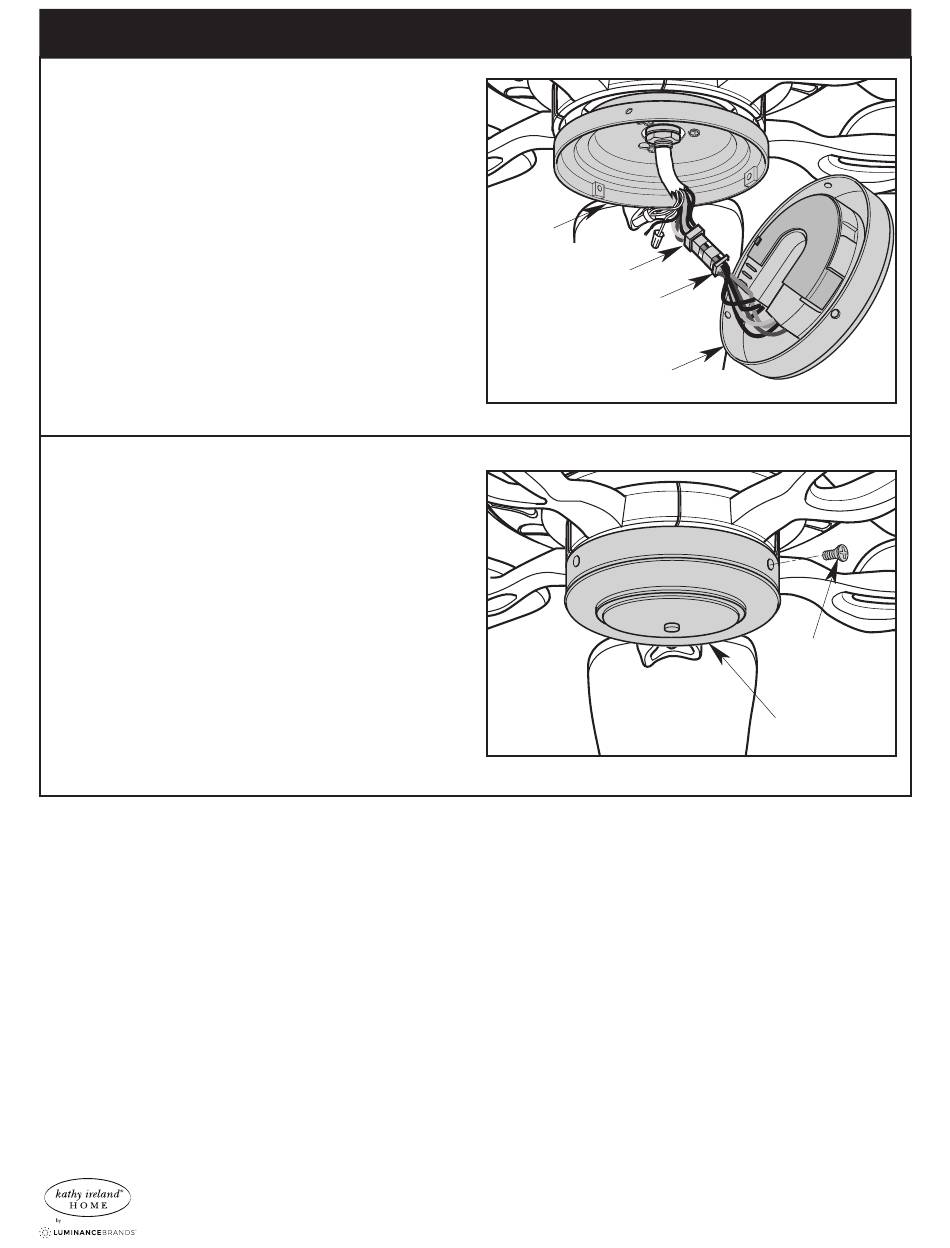

Figure 23
Figure 24
16
#6-32 x 3/8" FLAT
HEAD SCREWS (3)
SWITCH HOUSING
ASSEMBLY
